The distinctive character- istic of a topographic map is that the shape of the Earth's surface is shown by contour lines. ... On one type of large-scale topographic map, called provisional, some symbols and lettering are hand- drawn.

Are topographic maps drawn to scale?

Maps are made to scale. In each case, the scale represents the ratio of a distance on the map to the actual distance on the ground. A standard Canadian topographic map is produced at 1:50 000, where 2 cm on the map represents 1 km on the ground.

What do topographic symbols represent?

Topographic Map Symbols

The symbols used to represent features can be of three types: points, lines, and polygons. Points are used to depict features like bridges and buildings. Lines are used to graphically illustrate features that are linear. Some common linear features include roads, railways, and rivers.

What is a topographic scale?

Scale is the ratio of the distance on the map to the actual distance on the Earth's surface. A map of scale 1:24,000 means that one inch on the map is equivalent to 24,000 inches on the ground.

How do you scale topography?

The first number of the scale is always one. It's your unit of measurement, usually an inch. The second number is the ground distance. For example, if your U.S. Geological Survey (USGS) map has a scale of 1:24,000, it means that 1 inch on the map is equal to 24,000 inches (2,000 feet or 610 meters) in the real world.

Identify topographic symbols on a military map CIT (BLC)

24 related questions found

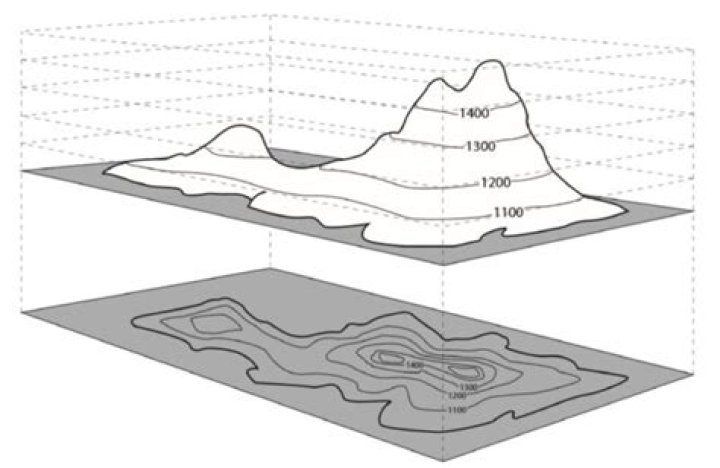

What is a topographic contour line?

Topographic Contours. Topographic Contours. Topography, or the shape of the Earth's surface, is mapped and displayed on topographical maps. Contour lines, or lines which connect points of equal elevation, are drawn on a topographical map in order to quantify the elevation at any point on the map.

What are the symbols on a topographic map?

Topographic Map Legend and Symbols

• Brown lines – contours (note that intervals vary)
• Black lines – roads, railroads, trails, and boundaries.
• Red lines – survey lines (township, range, and section lines)
• Blue areas – streams and solid is for larger bodies of water.
• Green areas – vegetation, typically trees or dense foliage.

What are topographic features?

Topography describes the physical features of an area of land. These features typically include natural formations such as mountains, rivers, lakes, and valleys. Manmade features such as roads, dams, and cities may also be included. Topography often records the various elevations of an area using a topographical map.

Is topographic map a large scale map?

In modern mapping, a topographic map or topographic sheet is a type of map characterized by large-scale detail and quantitative representation of relief features, usually using contour lines (connecting points of equal elevation), but historically using a variety of methods.

What does RS Topo mean?

(ii) RS near Chitrasani settlement is a railway Station. eddibear3a and 4 more users found this answer helpful.

What is the scale of Australia?

Geoscience Australia has complete 'small scale' reference map coverage of Australia at scales of 1:2.5, 5, 10 and 20 million. We maintain a complete national topographic map and data coverage at 1:1 million and 1:250000 scale.

What are topo maps used for?

Topographic maps are a detailed record of a land area, giving geographic positions and elevations for both natural and man-made features. They show the shape of the land the mountains, valleys, and plains by means of brown contour lines (lines of equal elevation above sea level).

How do you find the scale on a topographic map?

The map scale is printed in the map legend. It is given as a ratio of inches on the map corresponding to inches, feet, or miles on the ground. For example, a map scale indicating a ratio of 1:24,000 (in/in), means that for every 1 inch on the map, 24,000 inches have been covered on the ground.

What are the 3 types of scales on a map?

There are three ways to show the scale of a map: graphic (or bar), verbal, and representative fraction.

Which is universally accepted scale in topography?

Answer: RF scale is the universally accepted scale.

What is the space between contour lines called?

The elevation difference between two adjacent contour lines is called the contour interval (CI). Usually the contour interval is noted on the map legend. In most topographic maps every 5th contour line is drawn in bold print or wider than other contours.

Are contour lines?

A contour line is a line drawn on a topographic map to indicate ground elevation or depression. A contour interval is the vertical distance or difference in elevation between contour lines. ... If the numbers associated with specific contour lines are increasing, the elevation of the terrain is also increasing.

What does a topographic map show hunters Ed?

Topographic maps are created from aerial photographs and reveal the contours of the land, including hills, ridges, and valleys, as well as lakes, rivers, creeks, trails, and roads. Contour lines show the elevation of the ground. ... Contour lines that are sharply tapered indicate an uphill direction.

How topographic features are depicted on maps?

Contour lines are the most common method of showing relief and elevation on a standard topographic map, and they give a sense of slope. A contour line represents an imaginary line on the ground, above or below sea level. All points on the contour line are at the same elevation.

How do you identify landforms on a topographic map?

Landforms are identified on a topographic map by using contour lines. Contour lines are lines on the map that join points of equal elevation; one...

What is topography in ophthalmology?

Corneal topography is a computer assisted diagnostic tool that creates a three-dimensional map of the surface curvature of the cornea. ... These details are used to diagnose, monitor, and treat various eye conditions. They are also used in fitting contact lenses and for planning surgery, including laser vision correction.

What do numbers on a topographic map mean?

Horizontal distance is found on the scale. As you look at the map, notice that the contour lines enclose smaller and smaller areas. The smallest circles represent the tops of peaks, and some are marked with x's with numbers next to them. The numbers are the elevation at the top of the peak.

What symbol on a topographic map indicates the exact elevation on the map?

The distinctive character- istic of a topographic map is that the shape of the Earth's surface is shown by contour lines. Contours are imag- inary lines that join points of equal elevation on the surface of the land above or below a reference surface, such as mean sea level.

Why do topographic maps have a key or legend?

A map legend (or key) lists the features shown on that map, and their corresponding symbols. Topographic maps usually show a geographic graticule and a coordinate grid, so you can determine relative and absolute positions of mapped features. ... Therefore, a map will never be entirely up to date.
