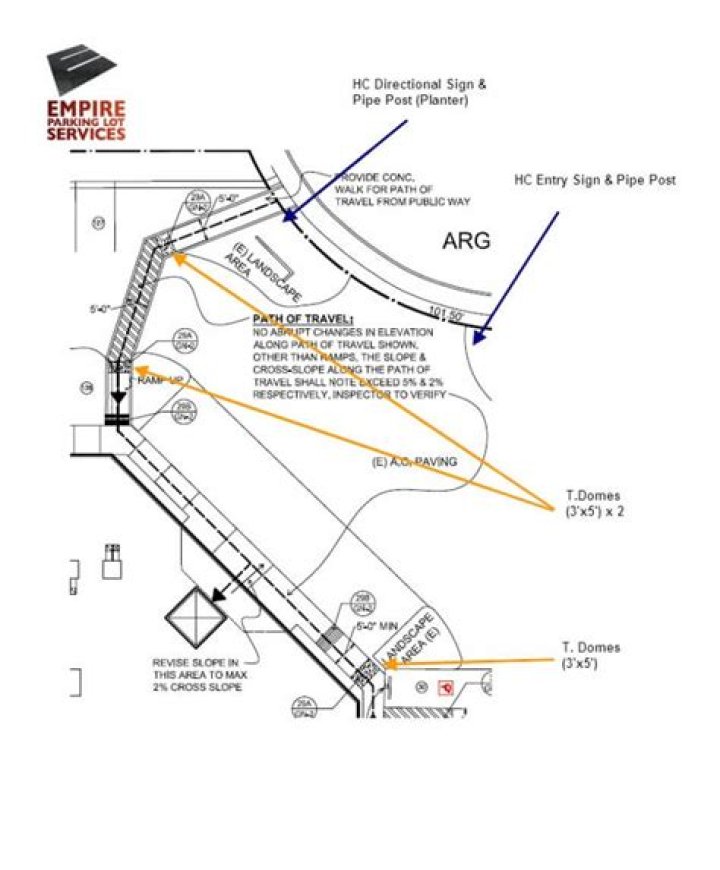

The DSC design standard is to require the detectable warnings (truncated domes) on curb ramps in walks that continue across a street. They are not required at curb ramps in parking lots.

Where are truncated domes required?

In all applications, truncated domes within detectable warning products are required to align perpendicular or radial to the grade break between the ramp, landing or blended transition and the street.

Where are truncated domes required California?

Where are truncated domes required?

• Platform Boarding Edges.
• Curb Ramps.
• Islands or Cut-through Medians.
• Bus Stops (between the pad and the road)

Are truncated domes required at driveways?

In California, if a facility was built before April 1, 1994, there is no requirement for truncated domes unless there is an alteration which triggers this CBC path of travel requirement.

Do truncated domes have to be yellow?

The majority of truncated domes feature a bright yellow color. In fact, yellow domes are so common that many people assume the ADA requires them to be that color. This, however, is not the case. Truncated domes do not have to be yellow.

What Are Truncated Domes?

29 related questions found

Are truncated domes required on private property?

In 2010 the Federal ADA standards changed and no longer required truncated domes for Title 3 (private commercial properties) on curb ramps, path of travel crossings and smooth transition areas between accessible walkways and the vehicular way! California did not remove this requirement but has changed the panel size ...

When would you use a truncated dome?

Truncated domes serve as a detectable warning, which can be seen, felt and heard. Detectable warning systems are put in place to increase the accessibility and safety of public spaces. Together, truncated domes and wayfinding bars create a detectable warning system to safely guide all members of the public.

Do sidewalks have to be ADA compliant?

Sidewalks and curb ramps need to be made in compliance with ADA standards. When roads are resurfaced or concrete cracks, it's important to repair it right away.

What is the minimum sidewalk width ADA?

Sidewalks are to be at least 5 ft. wide. ... There are exceptions: sidewalk width may be reduced to meet site constraints; however, ADA requires a minimum width of 4 ft. to be provided in all cases (PROWAG R301. 3.1).

How are truncated domes installed?

No matter which option you select, however, the truncated domes installation process is fairly simple. Cast-in-place tiles are placed in wet cement. ... The edges of the tile are then sealed with caulk, and the tile will then be ready for pedestrian traffic.

What is the ADA requirements for hallway width?

Hallways should include enough space for wheelchair users and others to pass each other comfortably. The ADA requires 60 inches minimum width for passing with passing intervals reasonably spaced.

Do websites have to be ADA compliant in California?

ADA Compliance for Websites Today

If you have a business that provides goods and services to the general populace, it must comply with the ADA. If your physical business' location is in California, it must also comply with the Unruh Act. And if your business has a website address, it must comply with the WCAG 2.1.

Where is tactile required?

Tactile surfaces must be installed on curb ramps at street intersections. If the street or sidewalk was built pre-ADA, it will vary whether this is required. a municipality can install curb ramps at key pedestrian crossings to ease access to accessible building entrances and to and from accessible parking garages.

What is the ADA requirements for a ramp?

What do the slope requirements for curb ramps and ramps mean? Slope is the ratio of the height of a ramp to its length. An ADA curb ramp must have no more than a 1:12 ratio, or no greater than a 8.33% slope. The ADA also requires slopes to be consistent from end to end; a ramp must have a uniform slope.

What are the ADA guidelines?

The Americans with Disabilities Act (ADA) became law in 1990. The ADA is a civil rights law that prohibits discrimination against individuals with disabilities in all areas of public life, including jobs, schools, transportation, and all public and private places that are open to the general public.

What is the minimum width of sidewalk?

9. What is the minimum width of side walk? Explanation: The minimum width of side walk is considered as 1.5m it may be more depending on the requirement. Explanation: The width requirement of side walk is decided with the help of pedestrian flow, its width is decided based on pedestrian flow.

What is the standard sidewalk width?

Sidewalks should be wide enough to allow two adults to walk comfortably next to each other. A good standard width is 48 inches.

What is the minimum width of a side walk?

Minimum Width of Sidewalks

For any two people to walk together, 5.0 feet of space is the bare minimum. In some areas, such as near schools, sporting complexes, some parks, and many shopping districts, the minimum width for a sidewalk is 8.0 feet.

What constitutes a sidewalk trip hazard?

Under the Americans with Disabilities Act (ADA), trip hazards are defined as a change in any vertical level over 1/4″. ... Regular sidewalk maintenance reduces trip hazards by maintaining a smooth, clean walkway. Cracks and lifts need to be fixed to ensure safe travels.

Do all businesses have to be ADA compliant?

All businesses, even those that do not serve the public, must comply with accessible design standards when constructing or altering facilities.

How steep can an ADA sidewalk be?

Sidewalks should be kept in good condition, free from debris, cracks and rough surfaces. To the extent possible, sidewalks should have a maximum cross-slope of 1 inch of fall for every 4 feet of width (2 percent grade).

What is a detectable warning?

Detectable warnings are a distinctive surface pattern of domes detectable by cane or underfoot that alert people with vision impairments of their approach to street crossings and hazardous drop-offs.

What is a truncated dome on a sidewalk?

Truncated domes (AKA detectable warnings, tactile paving, detectable warning surfaces) are ground surface indicators designed to assist and warn pedestrians who are blind or visually impaired.

What is the purpose of a tactile warning?

Tactile warnings provide a distinctive surface pattern of truncated domes, cones or bars, detectable by a long cane or underfoot, which are used to alert the vision-impaired of approaching streets and hazardous surface or grade changes.
