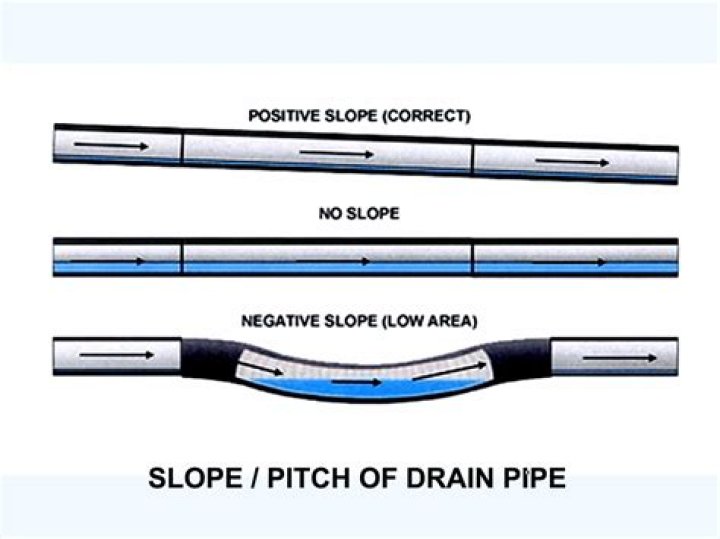

Improper drain slope The ideal slope of any drain line is ¼ inch per foot of pipe. In other words, for every foot the pipe travels horizontally, it should be dropping ¼ inch vertically. Many drains either have too little slope or too much slope. That's right, it is possible to have too much slope in your drain lines.

What is the maximum slope of a sewer line?

What is the maximum slope allowed? The “no” zone is anything between: 1/2" per foot and a 45 degree angle.

Can a drain be too steep?

If the underground sewer pipe is to stay below ground it must follow the average gradient of the slope. This invariably means that the pipe gradient becomes too steep, resulting in the solids being left stranded in the pipe causing a blockage.

What is the correct fall for underground drainage?

A 110mm foul drain taking the discharge of less than 1 l/s should be laid at a 1:40 (25mm per metre) fall. A foul drain taking the discharge from a minimum of one WC can be laid at 1:80 (12.5mm per metre).

What is the minimum gradient for a 100mm sewage pipe?

Be laid at a minimum gradient of 1:60 for 100 ∅ and 1:100 for 150 ∅ pipes.

The Proper Slope For Drain Pipe-Plumbing Basics

34 related questions found

Can you put a 45 in a sewer line?

If you have to make a 90-degree bend, use two 45-degree fittings and put a small piece of straight pipe between the fittings, if possible. It's fine to have a larger-radius (sweep) 90-degree bend at the base of a vertical drainage stack where the wastewater starts to travel horizontally.

How steep is a steep slope?

Steep slopes are legally defined as hillsides having a 15 foot, or greater, vertical rise over 100 feet of horizontal run, or 15% slope (Figure 1). They are often undesirable ar- eas for development due to the difficulty of building on steep grades.

What is the minimum depth of a sewer line?

On average, trenches should be around 12-24 inches-deep, and wide enough to house your pipe comfortably before filling it in with soil and sod. As we've mentioned, in cold weather regions, this will need to be deeper or you'll have problems with your sewage freezing.

What is the fall of a 4-inch sewer pipe?

The minimum slope for a 4-inch PVC gravity flow sewer pipe is 1/8 inch per foot.

What is the minimum slope for a 3 PVC?

One source specifically states that horizontal 3"+ drains require 1/8" slope (< 3" require 1/4" slope). Another source says 3" drains require 1/4" slope.

How do you calculate the slope of a drain pipe?

Example 1: If you have 10 feet of pipe, and you'd like to slope your pipe ½ inch per foot, your equation would be 10 x ½ = 5 inches. This means you will need to set your pipe so there's 5 inches difference in height between the beginning and the end.

Does a drain pipe need to be below the frost line?

No, drain lines do not need to be below freeze thaw depth, as water is almost continuously moving (think leaving a faucet barely running in a cold house, so the pipes don't freeze).

How deep do you need to bury a drain pipe?

I usually dig a trench about 12 to 14 inches deep for downspout drain lines. If the lot is fairly flat, the pipes will get deeper the farther they extend, as you should create 1/8 inch of fall for every foot the pipes run.

What slope is too steep to build on?

Less than 10% incline is considered slight and is the easiest to build on, while 11-20% is considered moderate. Anything above 20% is deemed steep. Beyond about 15%, costs begin to increase significantly as the risks become greater and the work becomes more difficult.

How do you know which slope is steeper?

The greater the slope, the steeper the line. The next example shows a line with a negative slope. Find the slope of the line graphed below.

What is considered a steep road grade?

A steep slope refers to a sharp incline; a gentle slope to a slight incline. ... Driving down a highway you may see a road sign that reads “6% Grade” or “Steep Grade.” The grade of the road is, essentially, its slope. The sign in Figure 1.2 indicates that the road descends at a six percent grade or a six percent slope.

Can you have too much fall on sewer pipe?

There is no such thing as too much fall. A drain pipe can drop at a 45 degree angle if needed. plumbjobber Buddy, the myth of "too much fall" in a sewer pipeline is exactly that, a myth.

Can a toilet drain have a 45 degree angle?

Registered. Mass plumbing code considers any pipe 45 degrees from the vertical, a vertical pipe (Stack). A dandy cleanout is not a proper drainage fitting to connect to and if you decide to run the line at 45* you will need a 1-1/2" vent.

How much slope should a septic line have?

In a conventional gravity system, the pipe from the house to the septic tank, and the outlet pipe from the tank to the distribution box or leach field, should both slope downward with a minimum slope of 1/4 in. per ft. (1/8 in. per ft.

Can you put a bend in underground drainage?

Simply enough these are the changes of direction on a drainage system which are usually available from 11 ¼ to 90 degree in most materials, long and short radius bends are available and they can be plain ended as shown below left (clay) or single or double socket (underground plastic).

Can a drywell freeze?

While most French drains run downhill behind a home, this may not work as well in areas prone to freezing. ... A dry well is a large hole placed below the frost line where water can collect and have enough time to dissipate into the ground before freezing.

Should I insulate my sewer line?

Sewer pipes usually do not need to be insulated as they do not hold standing water. However, in extremely cold regions where the line is exposed or runs close to an uninsulated wall adding insulation is warranted. Adding insulation will also deaden the sound of running water if the pipe runs close to living areas.

Can you concrete over a sewer line?

In most instances, yes, providing the sewer pipe has sufficient depth to allow an in-ground pool to be constructed over it. You will be required to concrete encase the sewer pipe, and if the pool is of concrete construction, you may need to have concrete piering under the base of the pool.

What is the minimum slope for drainage?

For efficient drainage, paved surfaces should have a minimum 1-percent slope. Turf or landscaped areas should have a minimum slope of 2 percent.
