Yes, NM cable can be in conduit. In fact. NEC calls for it to be in conduit, when protection from physical damage is required.

What type of wire can be run in conduit?

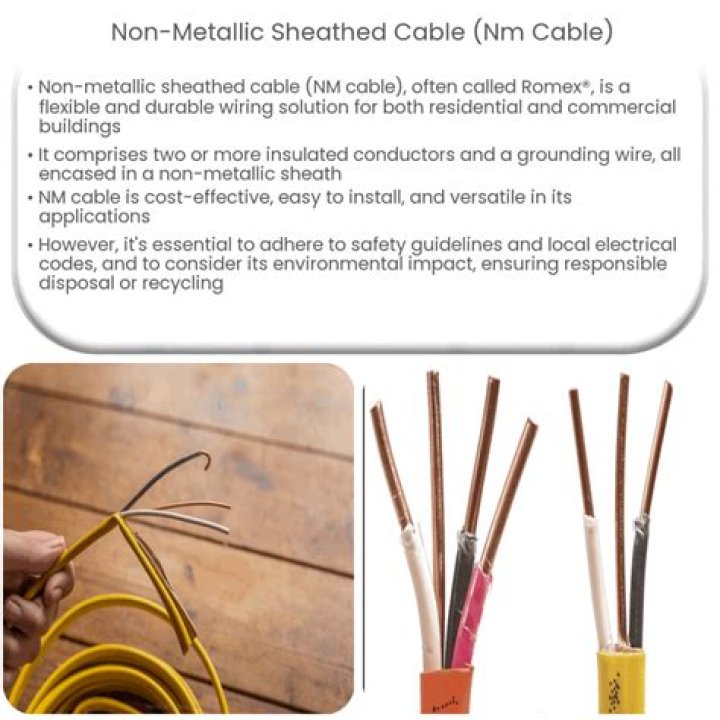

The most common type of cable used in home wiring is non-metallic (NM), or Romex, cable. While NM cable can be run inside a conduit, this is seldom done. The types of wire most commonly installed inside of conduit are THHN and THWN. THHN/THWN wires are individual, insulated, and color-coded wires.

Can you put outdoor wire in conduit?

You can run electrical wire outside to nearly any location. Although some types of electrical cable do not have to be enclosed in conduit for outside installation, enclosing any exposed cable is a good idea. Schedule 40 polyvinyl chloride (PVC) conduit for electricity is gray and is rated for sunlight resistance.

Is it OK to use Romex in conduit?

Running Romex in a Conduit

When using any non metallic wire outdoor, including Romex, it is a good idea to run it through a conduit. Yes, they can be used outdoors, it is better to be safe than sorry. We recommend using a conduit when running the wire underground.

Can you put overhead wire in conduit?

No but you would have to install a messenger wire to support the cable from being pulled on with added weight such as the wind or ice.

Romex "NM" in Conduit??

33 related questions found

Can aluminum wire be buried in conduit?

USE-2/RHH/RHW-2 aluminum building wire is rated for direct burial and intended for general purpose applications utilized in conduit, underground in conduit, or other recognized raceways for services, feeders, and branch-circuit wiring.

Can you run aluminum wire in conduit?

If you're lucky, you may even be able to run the new conductors through your existing conduit (minimum 1-in. ... Both copper and aluminum will oxidize when exposed to the atmosphere, but the difference is that the corrosion on copper is conductive, so it doesn't cause problems with the flow of electricity.

How do you transition from Romex to conduit?

Run / attach the conduit to a junction box, and then put a clamp for the romex, not a problem. You should to run a green ground wire in the conduit along with the hot and neutral so the romex has a nice solid ground. technically not necessary, as the conduit acts as a ground, but a good idea.

Can you sleeve Romex in PVC?

Just run the romex into the PVC. Staple it within 12" of it entering the sleeve.

Does electrical wire have to be in conduit?

There are no wires in conduit and they must be installed, or pulled, through the conduit after installation. ... Rigid conduit is used for very large wires, exterior installations and where structural strength is required. EMT is the most common conduit used in residential wiring.

Can Romex wire be used outside?

“Romex” (NM) does not belong in conduit, and it is not allowed for use in damp/wet locations. So the answer to your question is “no,” but this wiring method is improper for exterior lighting. ( wiring method is improper for exterior lighting. )

Can you run electrical wire in PVC?

Regular PVC pipe shouldn't be used in electrical applications, and PVC conduit won't work well in plumbing situations. But when you use them correctly, they are both effective and reliable.

Does Romex need to be in conduit outside?

No. Romex+outside in conduit= wet location.

Why is Romex illegal?

Staffers there said house wiring known by the brand name Romex can be dangerous if the insulation is gnawed by rodents or punctured by nails. They said the flexible insulation on the cable lacks the protection of conduit, the rigid metal tubes that encase wires.

What kind of wire can you put in PVC conduit?

THHN (thermoplastic high heat-resistant nylon-coated) is the best wire for pulling through PVC conduit. Other types of wire have a sticky rubber sheathing that makes them almost impossible to pull.

Do you need a ground wire in PVC conduit?

At service equipment, the service neutral conductor provides the effective ground-fault current path to the power supply [250.24(C)]; therefore, an equipment grounding conductor isn't required to be installed within PVC conduit containing service entrance conductors [250.142(A)(1) and 352.60 Ex 2].

Can you run Romex in conduit Canada?

(1) Conduits shall be of sufficient size to permit the conductors to be drawn in and withdrawn without injury to the conductors. You can't use PVC.

How much Romex is in a conduit?

The National Electrical Code has specific regulations for how many conductor wires can fit within a conduit of each diameter size: 1/2-inch Conduit: Up to 9 of the 12-gauge wires. 1/2-inch Conduit: Up to 12 of the 14-gauge wires. 3/4-inch Conduit: Up to 16 of the 12-gauge wires.

Can you put Romex in WireMold?

While there are proper uses of ROMEX that will typically avoid any exposed wires, if you're experiencing this in your home, you essentially have two options. In order to conceal your nonmetallic sheathed cable, you can either use a conduit such as PVC, ENT or EMT or a product called WireMold to hide the wires safely.

How do I connect my PVC box to Romex?

Use some caulking on both sides of the gasket with it and seal it all up as you mount the PVC box to the wall. The romex feed from the back just needs to be secured 12" from the box. No anchors are needed inside the box. If you have a very smooth exterior wall, only caulking would be needed.

Does Thhn have to be in conduit indoors?

It is ok to run THHN inside a home… provided it is in conduit. THHN is not rated to be installed in any building without a raceway.

Can I use Aluminium wire instead of copper?

Aluminum is much lighter and malleable than copper and therefore, makes it easier to work with. Being a cheaper metal, it can be more cost-effective to install aluminum wiring as it will generally work out around half the cost of copper wiring.

Can I use aluminum wire instead of copper?

Copper continues to be used extensively in modern homes, but each wiring material comes with its own advantages and disadvantages. Aluminum wire is generally easier to use than copper because it's lighter and more malleable, making it an ideal wiring material to use over long distances.

Can you pull triplex in conduit?

Triplex is only allowed between the weatherhead, through the meter, and to the very first breaker or disconnect. Beyond that, everything must be quadplex - separate neutral and ground.
