Since the MBONE and the Internet have different topologies, multicast routers execute a separate routing protocol to decide how to forward multicast packets.

How are multicast packets forwarded?

In a multicast model, receiver hosts of a multicast group are usually located at different areas on the network. To process the same multicast information from different peers received on different interfaces, the multicast device performs an RPF check on each multicast packet. ...

Do home routers support multicast?

Rule #2: Routers, by default, do not forward multicasts. This means a router that doesn't support or isn't configured for multicast traffic will drop the multicast packets. ... Unicasts use source and destination addresses, with switches using Layer 2 MAC addresses and routers using Layer 3 IP address.

Should I enable multicast on router?

Turn on or turn off Multicast forwarding

Multicast forwarding prevents the forwarding of multicast traffic to networks where there are no nodes listening. For multicast forwarding to work across inter-networks, nodes and routers must be multicast capable.

Should I block multicast?

I would say block it at the edge of your network just to be safe, although by default multicast isn't routed anyway unless you go through extra hoops. Multicast is used quite heavily for mass operating system deployments and streaming broadcast video over a LAN.

Multicast Explained in 5 Minutes | CCIE Journey for Week 6-12-2020

24 related questions found

What does wireless multicast forwarding do?

Wireless Multicast Forwarding (WMF) is an efficient way to forward traffic on the wireless network. It overcomes transmission issues by transmitting traffic only to the targeted members of the multicast. WMF uses Internet Group Management Protocol (IGMP) to keep track of the participants of the group.

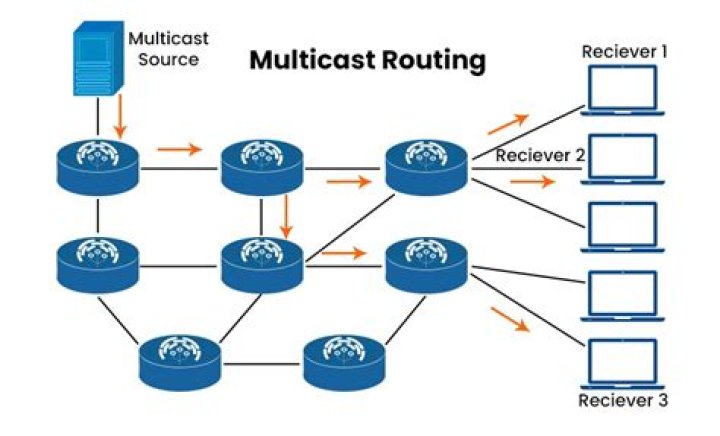

Can multicast cross a router?

Using multicast, a source can send a single copy of data to a single multicast address, which is then distributed to an entire group of recipients. ... Routers between the source and recipients duplicate data packets and forward multiple copies wherever the path to recipients diverges.

How do routers determine that an incoming IP packet is to be multicast?

How do routers determine that an incoming IP packet is to be multicast? ... IP has a sub-range of its address space reserved for multicast addresses. In IPv4, these addresses are assigned in the class D address space, and IPv6 also has a portion of its address space (see Table 4.1) reserved for multicast group addresses.

How do I enable multicast on my router?

To enable multicast routing, from Policy Manager:

1. Select Network > Multicast. The Multicast Setup dialog box appears.
2. Select the Enable Multicast Routing check box. This enables the PIM-SM multicast routing protocol globally. You must continue to Step 3 and add multicast interfaces for multicast routing to work.

What is difference between broadcast and multicast?

Broadcast and multicast are two types of transmission. The main difference between broadcast and multicast is that, in broadcast, the message or packets go to all the connected devices on the network while in multicast, the packets go to a required set of devices on the network.

What is IGMP snooping in router?

IGMP snooping is a method that network switches use to identify multicast groups, which are groups of computers or devices that all receive the same network traffic. It enables switches to forward packets to the correct devices in their network.

What protocols use multicast?

Multicast protocols such as UDP/IP and RTP/IP are used to broadcast data to any number of receiving devices. Unlike unicast TCP data, if a packet is not received, there is no mechanism or attempt to verify that and resend the packet. Multicast is widely used for video and audio data.

How do I know if multicast is enabled?

In order to verify if Multicast is working correctly in your network, you can use the following quick tcpdump/ping test. If the Multicast is working correctly then you should see packets arriving at the first node. Repeat this procedure in each node to verify that Multicast is OK in your network.

What does IP Multicast routing do?

IP multicast routing enables a host (source) to send packets to a group of hosts (receivers) anywhere within the IP network by using a special form of IP address called the IP multicast group address. ... Any host, regardless of whether it is a member of a group, can send to a group.

Should I set my modem to bridge mode?

When two NAT devices are connected in series (for instance a modem with built-in NAT capabilities is connected to a router which is also a NAT device), it is advisable to configure your modem in bridge mode to avoid conflicts.

How do I get multicast packets?

To receive multicast datagrams sent to a particular port, bind to the local port, leaving the local address unspecified, such as INADDR_ANY. In this case, every incoming multicast or broadcast UDP datagram destined for the shared port is delivered to all sockets bound to the port.

Does multicast work over the Internet?

You cannot multicast on the public Internet, but you can multicast across the public Internet to another site by using a tunnel that supports multicast. Multicast routing is very different from unicast routing, and all the routers in the path of the multicast packets need to have multicast routing configured.

How does IP Multicast achieve reliable packet delivery?

Since both IP multicast and UDP are unreliable protocols, the reliability is achieved by running an end to end reliable protocol at the application level. ... To achieve reliability, packets with errors or lost packets will be retransmitted, using a sliding window protocol based on feedback from the stations.

Does multicast use a port?

Multicast must use UDP, and UDP uses port numbers for its addresses. A process will bind to a specific UDP port number, even for multicast.

Is IP Multicasting beneficial?

Multicasting can be a good alternative to broadcasting in some scenarios like when a client needs a bootstrap server to boot-up. Generally it is done by sending broadcast packets but this results in packet processing by those hosts also that do not provide this service.

Is multicast bad?

As you can imagine, this is a very bad thing. Many networks have melted down due to large multicast streams. For example, when sending computer operating system image files, a tremendous amount of data is sent to every device in the broadcast domain, every computer, router, printer, and so on.

Should I turn off multicast on router?

First off, the best setting for multicast rate for your router is usually the lowest amount. Lower mbps value will typically benefit your normal web uses like browsing or file loading. In this case, You should turn off or disable IGMP Snooping and set the multicast rate to be fixed at the lowest value possible.

Which is best 20MHz or 40MHz?

A 20MHz channel width is wide enough to span one channel. ... In crowded areas with a lot of frequency noise and interference, a single 20MHz channel will be more stable. 40MHz channel width allows for greater speed and faster transfer rates but it doesn't perform as well in crowded areas.

What is broadband allow multicast?

3 Answers. 3. 7. IP multicast is a method by which data can be broadcasted to a select group of hosts using a single transmission. These days, it's primarily used for IPTV and satellite connections.

Can you ping a multicast address?

You can only ping, via multicast, hosts which are subscribed to the multicast group which you are pinging. You need to be careful about which multicast groups you use, and, in general, you should use multicast groups from the administratively scoped range of 239.0.
