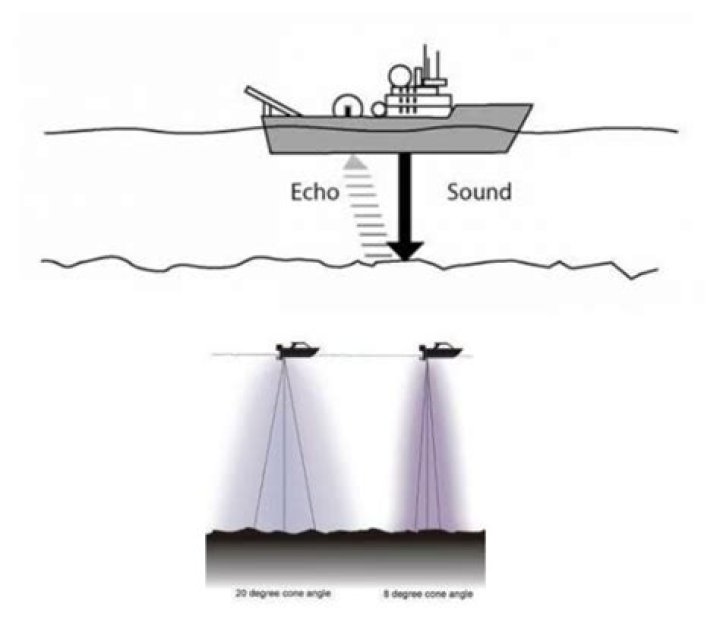

Single beam echo sounders (SBES), also known as depth sounders or fathometers determine water depth by measuring the travel time of a short sonar pulse, or “ping”. The sonar ping is emitted from a transducer positioned just below the water surface, and the SBES listens for the return echo from the bottom.

What is a single beam echo sounder used for?

Singlebeam Echosounders are used to measure the depth to the seafloor by using the properties of acoustic waves. The time lag between the sound being emitted and the returning echo is used to calculate the water depth beneath the boat.

What's the difference between single beam and multibeam echo sounder?

Unlike a single beam echosounder (also known as a depth sounder or fathometer) that releases a single sound pulse in a single, narrow beam and “listens” for the return echo, a multibeam system emits a multidirectional radial beam to obtain informa- tion within a fan-shaped swath (figs. 1, 2).

What is the advantage of using single beam echo sounding versus regular echo sounding?

Single-beam echo sounders have several advantages, since they are commonly available at a relatively low cost, and portable units can be easily deployed on small boats or ships of opportunity. They can provide highly accurate water depth and bottom contours.

What are the two types of echo sounder?

Echo-sounders are classified into two types; Single-Beam Echo Sounder (SBES) and Multi-Beam Echo Sounder (MBES). The names of 'single' and 'multi' stem from the number of depth points measurements collected at the same time.

Webinar - The EA440 hydrographic single beam echo sounder

34 related questions found

What are the errors of echo sounder?

Errors of Echosounder

• Velocity of propagation in water: The velocity changes with temperature salinity and pressure. ...
• Stylus Speed Error: ...
• Pythagoras Error: ...
• Multiple Echoes: ...
• Thermal and Density layers: ...
• Zero line adjustment: ...
• Cross Noise Error:

How does a single beam echo sounder work?

Single beam echo sounders (SBES), also known as depth sounders or fathometers determine water depth by measuring the travel time of a short sonar pulse, or “ping”. The sonar ping is emitted from a transducer positioned just below the water surface, and the SBES listens for the return echo from the bottom.

What is the difference between echo sounder and sonar?

​An echo sounder, a.k.a. fish finder or depth sounder, let's you view the seabed currently under the vessel utilizing a fixed mount transducer. A sonar enables you view the waters forward, port, starboard or aft of the vessel utilizing a hoist operated transducer element which scans 360 degrees.

Why is echo sounder important?

Depth finder, also called echo sounder, device used on ships to determine the depth of water by measuring the time it takes a sound (sonic pulse) produced just below the water surface to return, or echo, from the bottom of the body of water.

How does echo sounding work?

How Does Echo Sounding Work? Echo sounders transmit a pulse of energy directly downwards from the bottom of the ship. The pulsation moves through the water and pings off the floor of the sea. It then travels upward until the echo sounder receives the echo.

What is the difference between hydrographic and bathymetric survey?

Hydrographic surveys utilize the science of measurement and description of features which affect maritime navigation, marine construction, etc. Bathymetric Surveys also show marine depths however Bathymetric surveys typically provide more detailed topology of the bottom surface. ...

How is bathymetry measured?

Today, echo sounders are used to make bathymetric measurements. An echo sounder sends out a sound pulse from a ship's hull, or bottom, to the ocean floor. The sound wave bounces back to the ship. The time it takes for the pulse to leave and return to the ship determines the topography of the seafloor.

How do I know if my echo sounder is correct?

With most agencies the method used to check echo-sounders is the bar check. This method is quite satisfactory, and indeed is the ultimate, in shallow water down to the deepest depth at which a good clear echo can be obtained from the bar.

What is marine echo sounder?

Echo sounder measures the depth of water by measuring the time for a pulse of energy to travel to the sea bed and back and work on the principle of reflection of acoustic energy. Short pulse of sound energy is transmitted vertically down from the ship.

What does sonar mean?

Sonar, short for Sound Navigation and Ranging, is helpful for exploring and mapping the ocean because sound waves travel farther in the water than do radar and light waves.

Is an echo sounder a sonar?

Echosounders are a type of sonar commonly used for a variety of tasks, including navigation, measuring bottom depth, and detecting schools of fish and plankton.

What is echo sounder transducer?

The echo-sounder comprises a transmitter, transducer, receiver amplifier and timebase/display. ... Electrical energy is converted by the transducer into acoustic energy in a pulse of length cp which is beamed into the water, insonifying objects in its path.

What are the main components of echo sounder?

An echosounder consists of 4 basic components.

• The Transmitter.
• The Transducer.
• The Receiver.
• The Recorder.

What is heave in hydrography?

Heave Measurements. Heave is the vertical translation of the vessel relative to the average water level.

What are the 3 different types of false echoes?

Many types of false radar echoes are observed on a ship-mounted radar scope, including side lobe echoes, interference echoes, second trace echoes, and others.

How do I set up my echo sounder?

To configure echo sounder settings in the survey style

1. Tap and select Settings / Survey styles / <Style name>.
2. Tap Echo sounder.
3. Select an instrument from the Type field.
4. Configure the Controller port: ...
5. If required, enter the Latency value. ...
6. If required, enter the Draft value. ...
7. Tap Accept.
8. Tap Store.

What is ranging in echo sounder?

: determination of the distance and direction of an object (as under water) by means of an echo (as of sound) returned by the object — compare echo sounding, sonar.

What is the difference between topography and bathymetry?

Topographic maps show elevation of landforms above sea level. Bathymetric maps show depths of landforms below sea level.

What is single beam bathymetry?

Single-beam surveying: Rather than sending out a wide set of beams, single-beam bathymetry measures the water depth directly under the boat. Single-beam surveys are generally used for smaller water bodies.
