Ferrite cores are most effective in providing attenuation of unwanted noise signals above 10 MHz. ... For low-frequency cable emission problems, typically below 10 MHz, ferrite chokes have not been very useful, since their impedance is too low, at these frequencies, to be effective.

Do I need a ferrite core?

Assuming that the devices being connected, and the cable itself are not defective, ferrite cores are going to have zero effect on picture quality. The primary intent of the ferrite cores is to prevent the cable from behaving like an antenna that radiates EMI from the devices connected to the ends of the cable.

How effective are ferrite beads?

For effective power supply noise filtering, a design guideline is to use ferrite beads at about 20% of their rated dc current. As shown in these two examples, the inductance at 20% of the rated current drops to about 30% for the 6 A bead and to about 15% for the 3 A bead.

Where do you place a ferrite core?

Cable ferrites are normally situated near the cable termination where it exits the electronic enclosure. In fact, you might have to install a suppressor on both ends if the cable connects two separate enclosures containing radio frequency sources.

What are ferrite cores used for?

In electronics, a ferrite core is a type of magnetic core made of ferrite on which the windings of electric transformers and other wound components such as inductors are formed. It is used for its properties of high magnetic permeability coupled with low electrical conductivity (which helps prevent eddy currents).

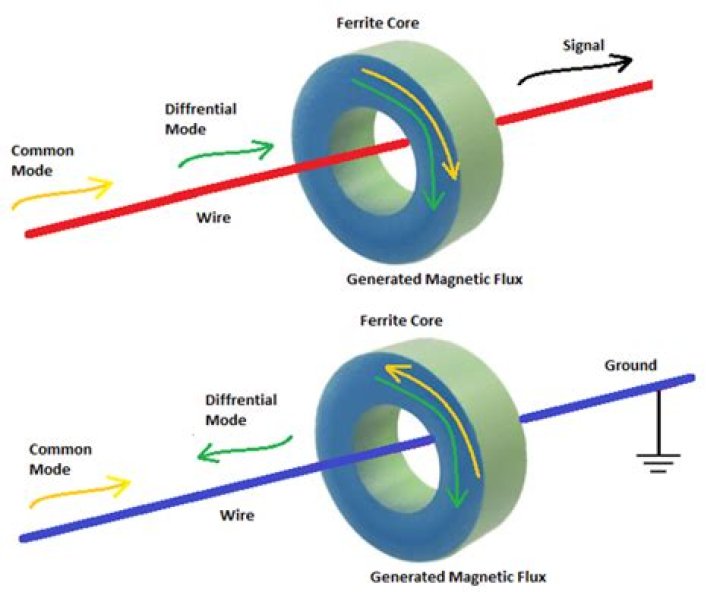

How do ferrite cores work?

44 related questions found

Do ferrite cores help HDMI cables?

And research has shown that a ferrite core will actually adversely affect the video and audio signals. IOW not only are ferrites pretty useless as far as HDMI goes, they are to be avoided unless you absolutely have to reduce interference with other devices. HDMI uses digital signalling.

Are ferrites conductive?

Unlike other ferromagnetic materials, most ferrites are not electrically conductive, making them useful in applications like magnetic cores for transformers to suppress eddy currents. ... Soft ferrites have low coercivity, so they easily change their magnetization and act as conductors of magnetic fields.

How do you get rid of ferrites?

You could cut the jacket off the ferrite and if you are lucky it will just fall off, or be easily snapped apart. If you are not lucky, the ferrite will be all one piece and the only way to get it off will be by cutting it - with a Dremel for example.

What do ferrites do on cables?

Ferrite cores (chokes) provide an inexpensive, and effective, way of coupling high-frequency resistance into a cable in order to reduce the common-mode current, and hence the radiation (or pickup) from the cable.

Can you have too many ferrite beads?

The easy question first: There is no harm in putting on more ferrites than needed, other than the obvious size, weight, and cost issues.

Do ferrite beads reduce radiation?

RF Safe has a very simple and inexpensive way to reduce microwave radiation from traveling up a headset's wire into the brain. It's a special material composition, a ferrite bead. ... Ferrites are used in many consumer electronics to prevent interference from disruptive electromagnetic radiation.

Do ferrite beads have polarity?

The ferrite beads do not have polarity.

How do you farm ferrites in Warframe?

By far the best farm in this Sci-Fi MMORPG for Ferrite is the Apollodorus mission on Mercury. It's a Survival mission with Grineer enemies. There are a few containers but the main prize is grinding wave after wave of enemies for Ferrite drops. In the first five-minute cycle players have earned north of 1,000 Ferrite.

What are the bumps at the end of computer cables?

A The bump is mostly likely the cylindrical ferrite bead attached to the cable. Also sometimes known as a ferrite choke or ferrite core, that bump is supposed to help prevent radio frequency noise and electromagnetic interference between electronic devices. Ferrite is a material made from iron oxide and other metals.

How do I stop my DAB radio from dash cam interfering?

To eliminate and suppress radio interference, simply attach a ferrite core to the cabling of the rear or front camera, whichever camera you believe is causing the interference. It is recommend to apply the ferrite core to as close to the base of either the front or rear camera cable.

Why ferrites are advantages for use as transformer core?

A major advantage to a ferrite core is its high resistance to high current. It also provides low eddy current losses over many frequencies. ... In fact, the high magnetic permeability along with with a low electrical conductivity of ferrites helps in the prevention of eddy currents.

What is the difference between iron core and ferrite core transformer?

In general a transformer with an Iron core has a higher saturation flux density so you can get away with a smaller core, or fewer turns in a low frequency design. ... Ferrite cores will saturate at a lower flux density but has lower losses at high frequencies as they have much higher resistance.

How does ferrite core memory work?

Core memory uses toroids (rings) of a hard magnetic material (usually a semi-hard ferrite) as transformer cores, where each wire threaded through the core serves as a transformer winding. Three or four wires pass through each core. ... The process of reading the core causes the core to be reset to a zero, thus erasing it.

What happens to a wire when a ferrite bead is placed around it?

The geometry and electromagnetic properties of coiled wire over the ferrite bead result in an impedance for high-frequency signals, attenuating high-frequency EMI/RFI electronic noise. The energy is either reflected back up the cable, or dissipated as low-level heat. Only in extreme cases is the heat noticeable.

Can ferrite bead be removed?

If it's made of iron and its necessity is in doubt, you might consider eliminating it from a balloon or kite rig. The ferrite beads near the small plug on the USB cables that came with the PLOTS visible/IR camera kit are easy to remove.

Why do ferrites have high resistance?

The most important properties of ferrites include high magnetic permeability and high electrical resistance. High permeability to magnetic fields is particularly desirable in devices such as antennas. High resistance to electricity is desirable in the cores of transformers to reduce eddy currents.

Are ferrite magnets strong?

Ferrite magnets are made up of a large mixture of iron oxide and various other chemical elements. Both of the categories that were mentioned above are extremely strong and durable, while still coming in weaker than neodymium magnets. These types of permanent magnets are very difficult to alter, while not impossible.

Is ferrite pure iron?

Ferrite, also known as α-ferrite (α-Fe) or alpha iron, is a materials science term for pure iron, with a body-centered cubic B.C.C crystal structure. It is this crystalline structure which gives steel and cast iron their magnetic properties, and is the classic example of a ferromagnetic material.
