This magnetometer measures the resonance frequency of the protons in a magnetic field by using nuclear magnetic resonance (NMR). When a polarizing DC current is sent through a solenoid, it creates high magnetic flux around the hydrogen-rich fuel like kerosene and some of the protons get aligned with this flux.

How does a magnetometer detect?

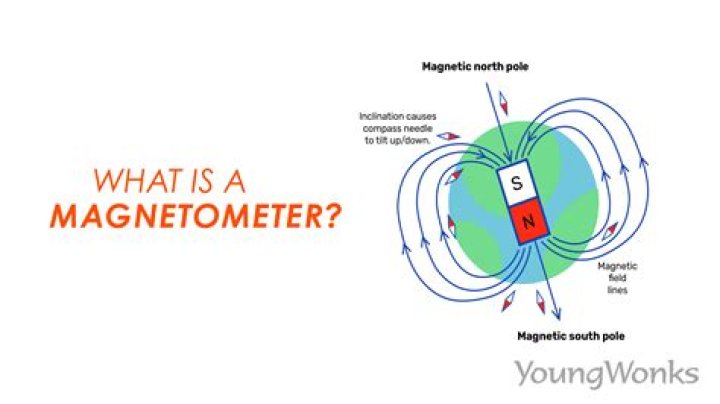

A magnetometer is a device that measures magnetic field or magnetic dipole moment. Some magnetometers measure the direction, strength, or relative change of a magnetic field at a particular location.

How does phone magnetometer work?

How it Works. Smartphones come equipped with a magnetometer so that your phone can sense its orientation in space, and use basic apps like the Compass App to determine your location with respect to Magnetic North (or South!). The way this is done is through an internal chip that contains a 3-axis magnetometer.

How deep can a magnetometer go?

In a general sense, the exploration depth of a magnetometer is unlimited. It is certainly sensitive to the Earth's field and this is generated in the Earth's Core, some 5000 km beneath our feet.

Can a magnetometer find gold?

Magnetometers are used to find disseminated gold by its association with mineralized zones which also contain magnetite or other magnetic minerals. ... Where there is gold there is often magnetite and therefore the magnetometer can be used to locate placer gold deposits.

How magnetometer works? | Working of magnetometer in a smartphone | MEMS inside magnetometer

24 related questions found

Is a magnetometer a compass?

The simplest, the magnetic compass, also simply known as a magnetometer, tracks the orientation of a magnetic needle within the Earth's magnetic field, in the same way as a traditional compass.

Does iPhone have a magnetometer?

When using an iPhone for directions, the phone considers not only the GPS sensor data, but also the magnetometer and accelerometers. That's part of how it can tell which direction you are pointed in. The magnetic field sensed by the internal compass is not actually pointing to the north pole.

Why magnetometer is used in IMU?

The third component of our IMU is the magnetometer. This is where I have seen people facing difficulties. It is a device capable of measuring magnetism. It is able to help us find orientation using the earth's magnetic field, similar to a compass.

How do you find the direction of a magnetometer?

Calculate the real Gauss value for the X and Y axes from the amount of LSBs returned where the LSB value by default is 0.48828125 mG, resulting in 2048 LSBs per Gauss. Calculate the direction D by first checking to see if the X Gauss data is equal to 0 to prevent divide by 0 zero errors in the future calculations.

How is a magnetometer used in drones?

Using a magnetometer on a drone enables us to scan the area and detect metals several times faster compared with handheld devices and allows obtaining geo-referenced maps of the area.

Why do cell phones have magnetometer?

Most modern smartphones and tablets are equipped with magnetic sensors, also called magnetometers. ... Normally, they are used to estimate the orientation of the device relative to earth's magnetic north and in this way act as digital compasses, e.g., to show the user's current direction in navigation applications. ...

How are magnets used in smartphones?

In flip phones, rare earth magnets are also used in the sensors that detect when the phone is opened or closed and that automatically switch the LCD screen On/Off and reduce the drain on the battery. Rare earth magnets are used in the mechanisms for image stabilization functions on digital cameras.

How does magnetometer work Archaeology?

Magnetometry, a technique that studies variations of the Earth's geomagnetic field, is a useful tool for archeologists. By measuring the effects buried materials have upon the geomagnetic field, magnetometers allow archeologists to “see” into the ground and identify what lies beneath without having to excavate.

Is a magnetometer a vibration?

Vibration magnetometer is used for comparison of magnetic moments and magnetic fields. This device works on the principle, that whenever a freely suspended magnet in a uniform magnetic field, is disturbed from it's equilibrium position, it starts vibrating about the mean position.

Can a magnetometer detect water?

The fields induce electric currents in metallic objects and the resulting magnetic echo is detected by an array of atomic magnetometers. Detecting objects in water using electromagnetic radiation is extremely difficult because light and other radiation attenuates rapidly as it passes through water.

Does an IMU drift?

The IMU orientation is usually obtained by integrating the angular velocity measured with the gyroscope [6,11,13,14,15,16,17]. This allows for immediate detection of orientation changes but leads to a drift of the estimated orientation over time, e.g., due to gyroscope bias [18].

Does IMU measure gravity?

An Inertial Measurement Unit (IMU) is a device that can measure and report specific gravity and angular rate of an object to which it is attached.

How does a magnetometer in IMU work?

Magnetometer: A magnetometer, as the name suggests, measures magnetic fields. It can detect fluctuations in Earth's magnetic field, by measuring the air's magnetic flux density at the sensor's point in space.

What is iPhone magnetometer?

The magnetometer is a magnetoresistive permalloy sensor found in the iPhone 3GS, iPhone 4 and iPad 2, in addition to the accelerometer. The iPhone 3GS uses the AN-203 integrated circuit produced by Honeywell, while the iPhone 4 and iPad 2 make use of the newer AKM8975 produced by AKM Semiconductor.

Will a magnet ruin a cell phone?

The idea stems from old gadgets like televisions, when much of the data was stored magnetically, using tiny bits of iron. However, with all the latest technological advancements, the truth is magnets won't interfere with your smartphone.

Can your phone detect magnetic fields?

A system called Pulse uses the magnetic field sensor, or magnetometer, for the compass app in iPhones and Android phones, to receive messages in the form of a varying magnetic field produced by a nearby electromagnet. ...

Why accelerometer is used?

An accelerometer is an electronic sensor that measures the acceleration forces acting on an object, in order to determine the object's position in space and monitor the object's movement. ... This is why accelerometers are used in automobile collision safety systems, for example.

What is accelerometer and magnetometer?

Accelerometers, gyroscopes, and magnetometers are the three main sensors we use for detecting motion and orientation! ... They can be used to detect when they are being moved around, detect motion, shock or vibration. They can also be used to detect gravitational pull in order to detect orientation or tilt.
