How electrode potential is developed?
David Ramirez It is the potential developed when the pure metal is in contact with its ions at one molar concentration at a temperature of 25oC or 298 K. Example: When a Zn rod of any length is dipped in 1M ZnSO4 solution, standard electrode is formed and the potential developed is called standard zinc electrode potential (EoZn).
How electrode potential is determined?

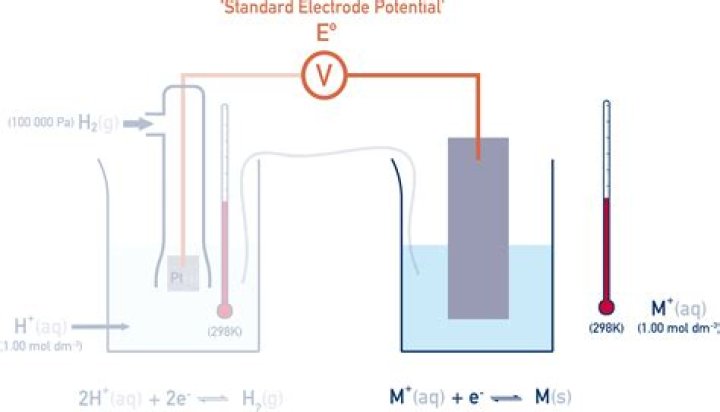

It is measured with the help of a reference electrode known as the standard hydrogen electrode (abbreviated to SHE). The electrode potential of SHE is 0 Volts. The standard electrode potential of an electrode can be measured by pairing it with the SHE and measuring the cell potential of the resulting galvanic cell.
How is single electrode potential originated?
With an open-circuit, the metal electrode in each half-cell transfers its ions into solution. Thus an individual electrode develops a potential with respect to the solution. ... The amount of the charge produced on an individual electrode determines its single electrode potential.
Which theory explains origin of electrode potential?
The solution pressure of a gas depends upon the pressure of the gas. From the Nernst theory, the potential difference of the double layer formed at an electrode is termed as single electrode potential.
What is EMF of cell?
The emf of a cell is the sum of the electric potential differences (PDs) produced by a separation of charges (electrons or ions) that can occur at each phase boundary (or interface) in the cell. The magnitude of each PD depends on the chemical nature of the two contacting phases.
Explain the origin of single electrode potential? | Electrochemistry | Physical Chemistry
34 related questions foundHow electrochemical series is formed?
The electrochemical series is built up by arranging various redox equilibria in order of their standard electrode potentials (redox potentials). The most negative E° values are placed at the top of the electrochemical series, and the most positive at the bottom.
How is electrode potential different from cell potential?
The key difference between electrode potential and cell potential is that electrode potential refers to the ability of an electrode in a cell to get reduced or oxidized whereas cell potential is the difference between the electrode potentials of the electrodes present in an electrochemical cell.
How do you determine the anode and cathode from the electrode potential?
The one with the highest reduction potential will be what you want to select as the reduction half-reaction and therefore be your cathode. The one with the lowest reduction potential will be what you want to select as the oxidation-half reaction and therefore be your anode.
Is the cathode reduced or oxidized?
According to the mnemonic “Red Cat An Ox”, oxidation occurs at the anode and reduction occurs at the cathode. Since the reaction at the anode is the source of electrons for the current, the anode is the negative terminal for the galvanic cell.
Why do electrons flow from anode to cathode?
By definition, a cathode is a negatively charged electrode (a metal plate or a wire), and an anode is a positively charged electrode. ... Since electrons are negative, the electron force on them is directed opposite the field, or towards the anode. This force makes the electron current flow from the cathode to the anode.
What is difference between cathode and anode?
A cathode is an electrode where the electricity flows out of or given out. An anode is an electrode where the electricity moves into. A cathode is a negative sided electrode. An anode is a positive sided electrode.
What is the concept of electrode potential?
Electrode potential for any given electrode is the voltage or potential difference of a cell assembled from a standard hydrogen electrode and the given electrode with the potential that is being defined. ... Electrode potential has uses such as: Prediction of corrosion-related chemical or electrochemical reactions.
What is difference between electrode potential and standard electrode potential?
The key difference between single electrode potential and standard electrode potential is that the single electrode potential is the potential of a single electrode in an electrochemical cell whereas standard electrode potential is the potential difference between two electrodes at standard conditions.
Is EMF and E cell the same?
Ecell is the cell potential under normal condition . It is calculated by Nernst equation and give dependence of Ecell on concentration and temperature. In terms of electrochemical cells EMF is not very much different from potential difference.
Who created the electrochemical series?
The story of electrochemistry begins with Alessandro Volta, who announced his invention of the voltaic pile, the first modern electrical battery, in 1800.
How potential is developed when electrode is dipped in its salt solution?
Following two changes occur when a metal rod is dipped in its salt solution, (a) Oxidation: Metal ions pass from the electrode into solution leaving an excess of electrons and thus a negative charge on the electrode. The conversion of metal atoms into metal ions by the attractive force of polar water molecules.
What is EMF series?
An electromotive force series (EMF series) is a metal's ranking in respect to inherent reactivity. ... This series is helpful in determining the tendency of a metal to release energy and corrode.
What is EMF in electrochemistry?
The electromotive force (EMF) is the maximum potential difference between two electrodes of a galvanic or voltaic cell. This quantity is related to the tendency for an element, a compound or an ion to acquire (i.e. gain) or release (lose) electrons.
How many types of electrode potential are there?
(iii) Temperature. (3) Types of electrode potential: Depending on the nature of the metal electrode to lose or gain electrons, the electrode potential may be of two types, (i) Oxidation potential: When electrode is negatively charged with respect to solution, i.e., it acts as anode. Oxidation occurs.
Is that electrode whose potential is known and remains constant?
Defination of SHE.
What is electrode theory?
The whole theory of electrode behavior has been reviewed, including single potential determinations, overvoltage, transfer resistance, valve action, and passivity. ... This is due to the formation of compounds of the liberated gas with the material of the electrode, under the influence of the very high pressures present.
Why is the cathode negative?
1: An electrolytic cell. The battery pumps electrons away from the anode (making it positive) and into the cathode (making it negative). The positive anode attracts anions toward it, while the negative cathode attracts cations toward it.
What polarity is a cathode?
A cathode is a negatively charged electrode. However, the polarity of the cathode with respect to anode can either be negative or positive, and it largely depends on the operation of the device. For example, in a recharging battery the cathode is negative.
Is cathode a ray?
Cathode rays (also called an electron beam or an e-beam) are streams of electrons observed in vacuum tubes. ... Cathode rays are so named because they are emitted by the negative electrode, or cathode, in a vacuum tube. To release electrons into the tube, they must first be detached from the atoms of the cathode.
Why do electrons leave cathode?
Field electron emission: A strong electric field can be applied to the surface by placing an electrode with a high positive voltage near the cathode. The positively charged electrode attracts the electrons, causing some electrons to leave the cathode's surface.
