How to calculate superelevation?
Sophia Bowman The rate of change in superelevation is found by dividing the difference between normal crown and full super by the transition length. 11000 – 10971.61 = 28.39. The rate of change is the same as for the transition at the beginning end of the curve (. 0004177).
What is the formula of superelevation?

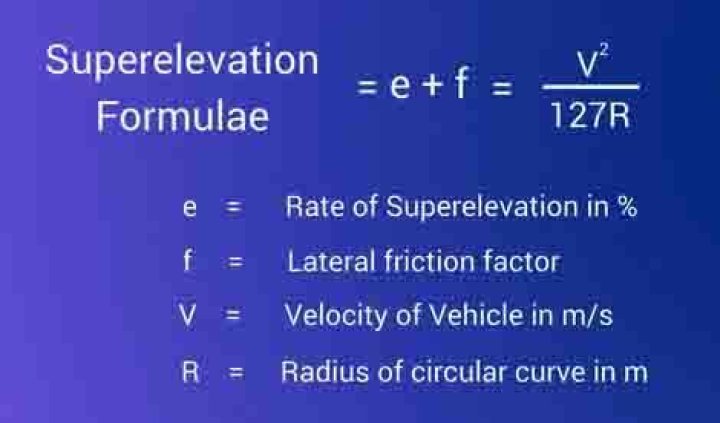

v = speed in kmph. R = Radius of the curve in metre. ∴ e = 0.201 – 0.15 = 0.051 per meter of carriage way. ∴ Super elevation = 0.051 * 7 = 0.357 m or 35.7 cm above the inner edge of the road.
What is superelevation rate?
Superelevation is the banking of a roadway along a horizontal curve so motorists can safely and comfortably maneuver the curve at reasonable speeds. A steeper superelevation rate is required as speeds increase or horizontal curves become tighter. Definitions.
What is the angle of superelevation?
Superelevation can be stated as an angle, as a percentage or in the case of rail, a fixed height differential between the high rail and the low rail. You will need to know the maximum driving speed and the radius of the curve.
How do you make a superelevation?
Design Of Superelevation:- Calculate the superelevation for 75% of design speed neglecting the friction i.e f = 0. ...
- If the calculated value 'e' is less than 7% or 0.07, then provide the obtained value. ...
- Check the coefficient of friction developed for the maximum value of e = 0.07 at the full value of design speed,
#superelevation / Road design
44 related questions foundHow do you get super elevation?
Attainment of super-elevation- rotating the outer edge about the crown : The outer half of the cross slope is rotated about the crown at a desired rate such that this surface falls on the same plane as the inner half.
- shifting the position of the crown: This method is also known as diagonal crown method.
What is super elevation PDF?
Superelevation is the banking of highway horizontal curves to assist the driver by counteracting the lateral acceleration produced by tracking the curve. ... Proper superelevation allows a vehicle to safely turn at high speeds and will make riders comfortable.
What is maximum superelevation rate?
The maximum superelevation rate allowed is 10%. a design speed of 40 mph or less, and—with justification—ramps in urban areas with a design speed of 40 mph or less.
How do you find the maximum relative gradient?
The maximum relative gradient is defined as the difference between the longitudinal slope between the centerline profile and the edgeline profile (edge of traveled way) for a two lane roadway rotated about the centerline.
What is PC and PT?
PC = Point of Curve. PT = Point of Tangent.
What is the super elevation for NH?
Assumptions The ruling design speed for NH passing through a rolling terrain is 80 kmph. The coefficient of lateral friction f=0.15. The maximum permissible super elevation e=0.07.
What is superelevation in engineering?
What is Superelevation in Highway Engineering? Superelevation is the transverse slope provided to counteract the effect of centrifugal force and reduce the tendency of vehicle to overturn and to skid laterally outwards by raising the pavement outer edge with respect to inner edge.
How do you calculate superelevation transition length?
The rate of change in superelevation is found by dividing the difference between normal crown and full super by the transition length. 11000 – 10971.61 = 28.39. The rate of change is the same as for the transition at the beginning end of the curve (. 0004177).
What is superelevation transition?
∎ Description of Terms. ∎ Superelevation Transition Length is the distance required to. transition the roadway from a normal crown section to full. superelevation. Sperelevation transition length is the sum of the tangent runout (TR) and superelevation runoff (L) distances.
What is super elevation explain with diagram?
Superelevation is the transverse slope provided to counteract the effect of centrifugal force and reduce the tendency of the vehicle to overturn and to skid laterally outwards by raising the pavement outer edge with respect to the inner edge. Superelevation is represented by “ e ”.
Why do we use superelevation?
Superelevation is the banking of the roadway such that the outside edge of pavement is higher than the inside edge. The use of superelevation allows a vehicle to travel through a curve more safely and at a higher speed than would otherwise be possible.
Which tool is used for providing superelevation?
Revolving Pavement About The Inner Edge. In this method, the surface of the road is rotated about the inner edge, raising the center and outer edge.
How is superelevation attained in field?
For the provision of super elevation in the field, we may provide rotation about the inner edge, when the cutting of the road is required. Similarly, rotation about outer edge is preferred, when the filling of the road is required. For the good appearance, rotation about outer edge is preferred.
How do you calculate runout length?
Determining Runout Lengths- Rout=(Roff*NC)/e.
- NC is normal crown (usually 2%)
- e is the superelevation rate (%)
What is transition length?
Transition length is the distance that is required to transition the road from normal to full superelevation. It consists of Runout Length and Runoff Length. Runout Length is the distance that is required to transition from normal crown to zero superelevation (flat).
What is the maximum super elevation on snow bound area?
Super-elevation on roads in snow bound areas, should generally not exceed. 1. Setting out of Lemniscate transition curves, is done with Solve it....
How do you calculate PC and PT?
After the length of the curve (L) and the semi-tangent length (T) have been computed, the curve can be stationed. When the station of the PI is known, the PC station is computed by subtracting the semi- tangent distance from the PI station. (Do not add the semi-tangent length to the PI station to obtain the PT station.
What do you mean by 5 degree curve?
In other words, the larger the degree of curve, the shorter the radius; for example, using the arc definition, the radius of a 1 curve is 5,729.58 units, and the radius of a 5 curve is 1,145.92 units.
