1. If the arrangement is symmetrical and the arrows are of equal length, the molecule is nonpolar.
2. If the arrows are of different lengths, and if they do not balance each other, the molecule is polar.
3. If the arrangement is asymmetrical, the molecule is polar.

How do you determine electronegativity and polarity?

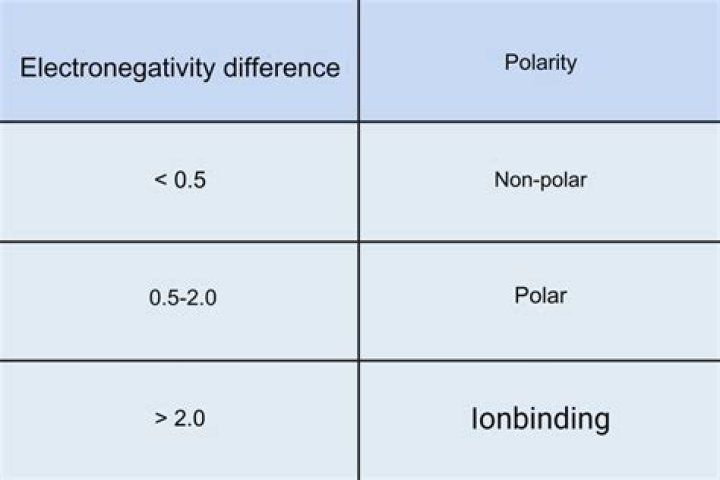

To determine the polarity of a covalent bond using numerical means, find the difference between the electronegativity of the atoms; if the result is between 0.4 and 1.7, then, generally, the bond is polar covalent.

How do you determine polarity and dipole moment?

The larger the difference in electronegativity between the two atoms, the more electronegative that bond is. To be considered a polar bond, the difference in electronegativity must be large. The dipole moment points in the direction of the vector quantity of each of the bond electronegativities added together.

How do you calculate dipole?

Dipole Moment Formula

A dipole moment is the product of the magnitude of the charge and the distance between the centers of the positive and negative charges. It is denoted by the Greek letter 'µ'. It is measured in Debye units denoted by 'D'. 1 D = 3.33564 × 10^-30 C.m, where C is Coulomb and m denotes a meter.

How can you determine the polarity of a molecule without electronegativity chart?

To review the steps:

1. Draw the Lewis structure.
2. Figure out the geometry (using VSEPR theory)
3. Visualize or draw the geometry.
4. Find the net dipole moment (you don't have to actually do calculations if you can visualize it)
5. If the net dipole moment is zero, it is non-polar. Otherwise, it is polar.

Polar and NonPolar Molecules: How To Tell If a Molecule is Polar or Nonpolar

18 related questions found

How electronegativity and molecular shape determine the polarity of a molecule?

Atoms that are high in EN tend to take electrons and atoms low in EN tend to give up electrons. So, higher electronegativity helps atoms take more control over shared electrons creating partial negative regions and partial positive regions which result in dipoles that cause polarity.

What determines the degree of polarity in a bond distinguish between nonpolar covalent polar covalent and ionic bonds in terms of relative polarity?

What determines the degree of polarity in a bond? Distinguish between nonpolar covalent, polar covalent, and ionic bonds in terms of relative polarity. The relative electronegativity of the two bonded atoms determines the polarity of a bond.

What determines the degree of polarity in a bond?

Bond polarity is determined by the difference in electronegativity and is defined as the relative ability of an atom to attract electrons when present in a compound.

Is tetrahedral CH3OH polar or nonpolar?

CH3OH is a polar molecule as the dipole-dipole moment is not canceled due to its asymmetric shape.

How is electronegativity determined?

Electronegativity is a property that describes the tendency of an atom to attract electrons (or electron density) toward itself. On the most basic level, electronegativity is determined by factors such as the nuclear charge and the number/location of other electrons present in the atomic shells. ...

How do you determine electronegativity?

Subtract the smaller electronegativity from the larger one to find the difference. For example, if we're looking at the molecule HF, we would subtract the electronegativity of hydrogen (2.1) from fluorine (4.0). 4.0 - 2.1 = 1.9.

How do you use molecular shapes to predict molecular polarity?

To predict molecule polarity from the shapes, you must first see if the molecule has exactly two atoms. If so, subtract the electronegatives to decide if it's polar. If the molecule has unshared electron pairs on the center atom (bent, triagonal pyramidal), the molecule is polar.

What are the two factors that determine the polarity of molecules?

Polarity and Structure of Molecules

The shape of a molecule and the polarity of its bonds determine the OVERALL POLARITY of that molecule.

How do you calculate the dipole moment of water?

- There are two hydrogen in water molecules, the two hydrogen creates their individual dipole moments. - We have to calculate the individual dipole moments and later we have to do the sum to get the dipole moment of the water molecule. Therefore the net dipole moment of the water molecule = 0.9187+0.9187=1.837D.

How do you find the ionic character of a dipole moment?

One method of estimating the percent ionic character is to set it equal to the ratio of the observed dipole moment to the value of eR, all multiplied by 100.

What is dipole direction?

The electric dipole moment, a vector, is directed along the line from negative charge toward positive charge. Dipole moments tend to point along the direction of the surrounding electric field.

What are dipoles in chemistry?

Dipole: A bond or molecule whose ends have opposite charges.

How long is an 80 meter dipole?

Since an 80 meter dipole is approximately 130 feet long, and a 160 meter dipole is approximately 250 feet long, this space reduction can be critical in getting the antenna to fit into our typical backyards. Another often cited reason is that the inverted vee makes a better match to the typical 50 Ohm feed line.
