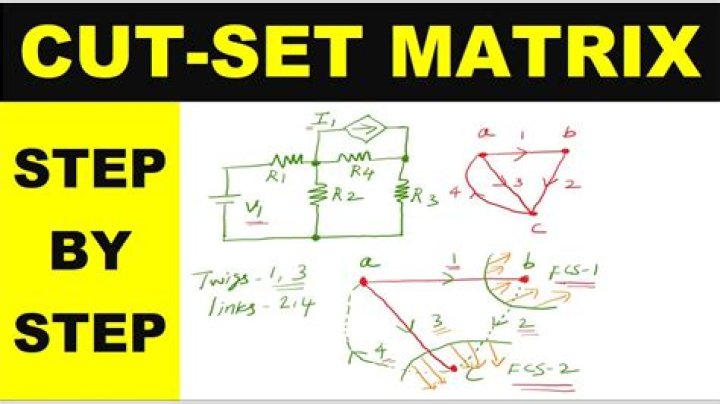

Steps to Draw Cut Set Matrix

1. Draw the graph of given network or circuit (if given).
2. Then draw its tree. ...
3. Then draw the remaining branches of the graph by dotted line. ...
4. Each branch or twig of tree will form an independent cut-set.
5. Write the matrix with rows as cut-set and column as branches.

What is a cut set matrix?

A Cut Set Matrix is a minimal set of branches of a connected graph such that the removal of these branches causes the graph to be cut into exactly two parts. ... A Cut Set Matrix consists of one and only one branch of the network tree, together with any links which must be cut to divide the network into two parts.

How do you make a matrix tie set?

Tie Set Matrix And Loop Currents:

1. There is a graph.
2. We select a tree from the given graph.
3. Now mark all possible fundamental loops.
4. In order to draw fundamental loop select a link such that it forms a closed path.
5. Every link defines a fundamental loop.

How do you get cut sets?

Cut sets are provided in BlockSim for interested users. They can be obtained for both fault trees and block diagrams by choosing Analysis > Tools > Show Cut Sets. Minimal cut sets can be used to understand the structural vulnerability of a system.

What is tie set and cut set matrix?

Tie Set Matrix – For a given tree of a graph, addition of each link between any two nodes forms a loop called the fundamental loop. In a loop there exists a closed path and a circulating current, which is called the link current. The current in any branch of a graph can be found by using link currents.

Lecture # 3 Formation of tie-set and cut-set matrix and its application in KVL and KCL by Dr. Niraj

27 related questions found

How many cut set matrix will be available for each tree?

Explanation: For every tree, there will a unique cut set matrix. So, number of cut-set matrices for every tree = 1. 10. If a row of the cut set matrix formed by the branch currents of the graph is shown below.

What is basic cut set?

Fundamental cut set or f-cut set is the minimum number of branches that are removed from a graph in such a way that the original graph will become two isolated subgraphs. The f-cut set contains only one twig and one or more links. So, the number of f-cut sets will be equal to the number of twigs.

What is cut set graph theory?

In graph theory, a cut is a partition of the vertices of a graph into two disjoint subsets. Any cut determines a cut-set, the set of edges that have one endpoint in each subset of the partition. These edges are said to cross the cut.

How do you find the cut set of a graph?

Cut Set of a Graph

Let 'G'= (V, E) be a connected graph. A subset E' of E is called a cut set of G if deletion of all the edges of E' from G makes G disconnect. If deleting a certain number of edges from a graph makes it disconnected, then those deleted edges are called the cut set of the graph.

How many cut sets are there?

Also any combination (I mean supersets) of these 9 edges also form a cut set. Thus, number of supersets possible with 9 edges = 2^9, and to exclude the possibility that no edge is selected I delete 1 from the result. Thus the number of cut sets = 2^9 - 1 = 511.

What is path matrix?

Part I introduces a new matrix, the path matrix, in the theory of linear graph. The matrix is defined and its properties are given in a number of lemmas and theorems. ... It is clear that there is a one-to-one correspondence between the union of all paths between two vertices and a two-terminal switching function.

What is the order of a matrix?

The order of the matrix is defined as the number of rows and columns. The entries are the numbers in the matrix and each number is known as an element. ... The size of a matrix is referred to as 'n by m' matrix and is written as m×n, where n is the number of rows and m is the number of columns.

What is the rank of cut set matrix?

b - N - 1. Rank of cutset matrix = twigs of tree = N - 1. N.

What is cut set analysis?

Minimal cut set analysis is a mathematical technique for manipulating the logic struc- ture of a fault tree to identify all combinations of basic events that result in the occur- rence of the top event. These basic event combinations, called cut sets, are then reduced.

What is matrix topology?

A topology matrix specifies the connections between vertices in directed multigraph. In one representation, the row entries are the edges in the graph, and the column entries are the vertices in the graph.

What is minimum cut set?

1 Minimal Cut Sets. The minimal cut sets for the top event are a group of sets consisting of the smallest combinations of basic events that result in the occurrence of the top event. They represent all the ways in which the basic events cause the top event [52].

What are cut edges in a graph?

In graph theory, a bridge, isthmus, cut-edge, or cut arc is an edge of a graph whose deletion increases the graph's number of connected components. Equivalently, an edge is a bridge if and only if it is not contained in any cycle.

What is cut point in graph?

In topology, a cut-point is a point of a connected space such that its removal causes the resulting space to be disconnected. If removal of a point doesn't result in disconnected spaces, this point is called a non-cut point. For example, every point of a line is a cut-point, while no point of a circle is a cut-point.

What is cut and Min cut?

In graph theory, a minimum cut or min-cut of a graph is a cut (a partition of the vertices of a graph into two disjoint subsets) that is minimal in some metric. Variations of the minimum cut problem consider weighted graphs, directed graphs, terminals, and partitioning the vertices into more than two sets.

What is fundamental circuit define a cut set?

Fundamental CutSets:

Consider a spanning tree T of a connected graph G. Take any branch b in T. Since {b} is a cut-set in T, {b} partitions all vertices of T into two disjoint sets—one at each end of b. ... Such a cut-set S containing exactly one branch of a tree T is called a fundamental cut-set with respect to T.

What is graph cut algorithm?

In the graph-cut method, each image is represented as a graph of nodes. Each node corresponds to an image pixel and links connecting the nodes are called edges. A pathway is constructed connecting all the edges to travel across the graph.

What is minimal cut set in Fault Tree?

Minimal cut set: A cut set that cannot be reduced without losing its status as a cut set. The TOP event occurs if one or more of the minimal cut sets occur.

What are the dimensions of an incidence matrix?

Answer: The size of incidence matrix is equal to number of vertices and number of edges. If you notice carefully, you can observe that the sum of each column in incidence matrix is equal to 2, while the sum of each row in incident matrix is equal to the degree or valency of that vertex.

What is planar graph in discrete mathematics?

When a connected graph can be drawn without any edges crossing, it is called planar . When a planar graph is drawn in this way, it divides the plane into regions called faces . ... Draw, if possible, two different planar graphs with the same number of vertices and edges, but a different number of faces.

What is the dimension of bus incidence matrix?

Incidence Matrices

The bus incidence matrix has e(n−1) dimension since one node becomes reference. The branch-path incidence matrix relates branches to paths.
