In the ohmic region the fet can be used as?
David Ramirez The field effect transistor (FET) is a three-terminal device can be used in two extreme ways as an active element in a circuit. One is as a voltage controlled resistance, in the so called "Ohmic" region, for which VDS < VGS - VGS(off).
When FET is operates in ohmic region?
The JFET is operated in the ohmic region both when a variable resistor is desired and in switching applications. IDSS is the saturation drain-to-source current. λ is analogous to the λ for MOSFETs, and to 1/VA for BJTs.
What is ohmic region in FET?
1.Ohmic Region: The Ohmic Region of a FET transistor (also called the linear region) is the region where the drain current (ID) has a linear response to changes in the drain-source voltage (VDS) and the FET acts like a voltage controlled resistor. 2.
In which region FET can be used as voltage variable resistor?
A field-effect transistor works as a voltage variable resistor in the ohmic region. It works as an amplifier in the saturation region.
When it is operated in ohmic region it can be used as?
Generally, there are two applications that make use of the ohmic region: an electronic rheostat/potentiometer and an analog switch. A simple circuit that can be used for either application is shown in Figure 11.6.

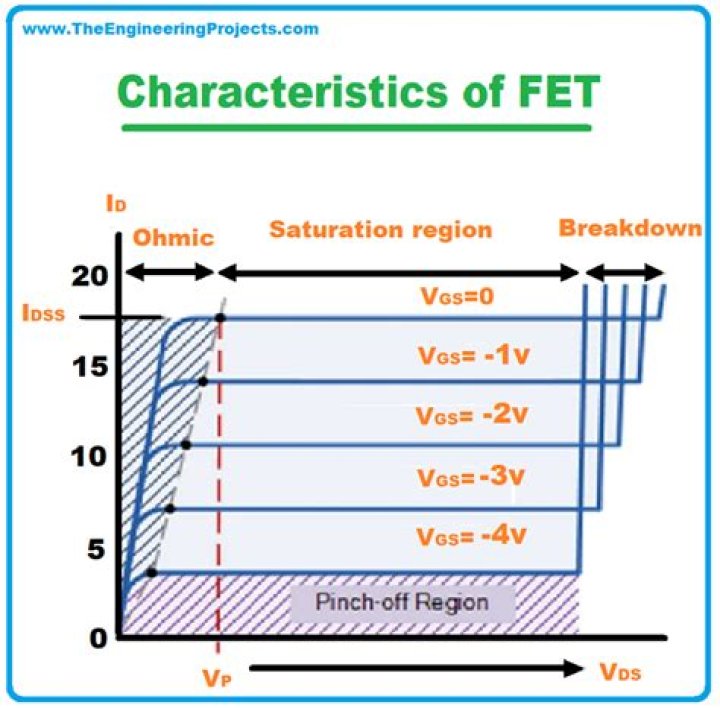

What are the Different Regions of Operation for a FET? | Intermediate Electronics
22 related questions foundWhat region does FET work?
Cut off Region: JFET will act in the cut off state when Vgs is sufficient to cause the JFET to act as an open circuit. Active Region: This region is also called as the saturation region. In this region, the JFET will act as a conductor. Breakdown region: When Vds becomes very high, JFET will move to a breakdown region.
In which of the operating region of FET Ohm's law is followed?
OHMIC REGION (Vds < 4 V). This is the region in which the FET acts as a variable resistor and obeys Ohm's law, that is, the I-V curves become less steep as the negative bias on the gate increases, indicating that the resistance of the channel increases.
Can FET be used as a resistor?
FET is a device that is usually operated in the constant-current portion of its output characteristics. But if it is operated on the region prior to pinch-off (that is where VDS is small, say below 100 mV), it will behave as a voltage-variable resistor (WE).
How a FET can be used as a voltage-controlled resistor?
When the drain current is reduced to a point where the FET is no longer conductive, the maximum resistance is reached. The voltage at this point is referred to as the pinchoff or cutoff voltage and is symbolized by VGS = VGS(off). Thus the device functions as a voltage- controlled resistor.
Why FET is called voltage variable device?
a fet is a voltage-controlled device because the current between the drain and the source is controlled by the voltage at the gate with reference to the source (vgs).
What is saturation region in FET?
In saturation, the main factor limiting the current flow is the gate voltage, not the drain source voltage. Most applications of MOSFETs use them in this region and if the drain-source voltage is the same as the gate-source voltage, you can assume you're in saturation.
What the meaning of the ohmic region?
The region of the drain voltage-current characteristic curve in which a change in drain-source voltage causes a proportional change in drain current.
What are the three regions of FET?
Three regions of operation have been reported for a bilayer graphene field-effect transistor (GFET) [7], namely, the triode region, the unipolar saturation region, and the ambipolar saturation region (see Fig. ...
What is saturation region?
Saturation region
This is the region in which transistor tends to behave as a closed switch. The transistor has the effect of its collector and Emitter being shorted. The collector and Emitter currents are maximum in this mode of operation. The figure below shows a transistor working in saturation region.
What is saturation region Mosfet?
Saturation Region
In the saturation or linear region, the transistor will be biased so that the maximum amount of gate voltage is applied to the device which results in the channel resistance RDS(on being as small as possible with maximum drain current flowing through the MOSFET switch.
Why is FET called current controlled resistor?
therefore, fet is a voltage controlled device. just explained because it consumes very little power to operate. ... a fet is a voltage-controlled device because the current between the drain and the source is controlled by the voltage at the gate with reference to the source (vgs).
What is the application of FET?
FETs are used as voltage-variable resistors (WRs) in operational amplifiers (op-amps) and tone controls etc, for mixer operation on FM and TV receivers and in logic circuits. FETs are generally used in digital switching circuits though their operating speed is lower.
What is FET resistance?
The result is that the FET acts more like a voltage controlled resistor which has zero resistance when VGS = 0 and maximum “ON” resistance ( RDS ) when the Gate voltage is very negative. Under normal operating conditions, the JFET gate is always negatively biased relative to the source.
Why FET is preferred over BJT?
Why is FET Preferred over BJT? Field-effect transistors provide high input impedance as compared with BJTs. The gain of FETs is lesser as compared with BJTs. The radiation effect of FET is less.
What do you mean by FET?
A Field Effect Transistor (FET) is a three-terminal Active semiconductor device, where the output current is controlled by an electric field generated by the input voltage.
What is the main advantage of FET which makes it more useful in industrial applications?
What is the main advantage of FET which makes it more useful in industrial applications? Explanation: Because of its small size, the IC chips can be made even smaller which reduces the wear and tear.
Why FET is used as constant current source?
We have seen in this tutorial about the FET Constant Current Source that due to their channel resistance characteristics, field effect transistors can be used to supply a constant current to a load and find numerous applications in electronics circuits where it is required to supply a fixed current to a connected load.
What are types of FET?
There are two types of field-effect transistors, the Junction Field-Effect Transistor (JFET) and the “Metal-Oxide Semiconductor” Field-Effect Transistor (MOSFET), or Insulated-Gate Field-Effect Transistor (IGFET).
What is a primary advantage of a FET when compared to the bipolar transistor?
An advantage of the FET is its high gate to main current resistance of the order of 100 MΩ or more, thus ensuring a high degree of isolation between control and flow.
