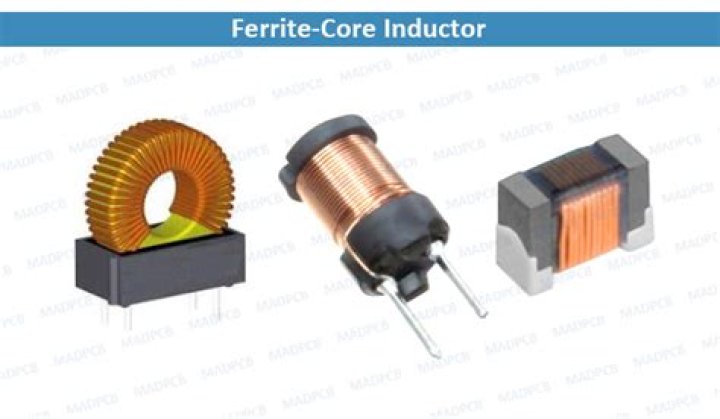

A Ferrite Core Inductor is a passive two terminal electrical component that resists change in electric current passing through it. It uses ferrite as a main core material which has high magnetic permeability and high electrical resistivity. It is normally used with power supplier and power management applications.

How do you find the inductance of a ferrite core?

Use your AL value to calculate the inductance for various values of N using the following formula: L = AL/[(100/N)^2]. For example: If N is 15, L = 625/[(100/15)^2] = 625/[6.66^2] = 625/44.4 = 14uH.

How do you make a ferrite core inductor?

Inductor Design with Magnetics Ferrite Cores

1. Compute the product of LI² where: ...
2. Locate the LI² value on the Ferrite Core Selector chart below. ...
3. Any core size line that intersects the LI² coordinate represents a workable core for the inductor if the core's A_L value is less than the maximum value obtained on the chart.

Is a ferrite an inductor?

Ferrite beads are classified as inductors, but their frequency-impedance characteristics differ from those of most inductors. Compared with general inductors, ferrite beads have a high resistance component R and a low Q value.

What is inside a ferrite core?

Ferrite cores are dense, homogeneous ceramic structures made by mixing iron oxide (Fe₂O₃) with oxides or carbonates of one or more metals such as manganese, zinc, nickel, or magnesium. They are pressed, then fired in a kiln to 1300^o C, and machined as needed to meet various operational requirements.

How do ferrite cores work?

25 related questions found

Where are ferrite core inductors?

Ferrite core inductors are used in a range of electric circuit applications including power conversion, broadband, and interference suppression.

Whats an inductor do?

Inductors are typically used as energy storage devices in switched-mode power devices to produce DC current. The inductor, which stores energy, supplies energy to the circuit to maintain current flow during “off” switching periods, thus enabling topographies where output voltage exceeds input voltage.

Why is ferrite used in inductors?

Inductor ferrite is used to provide an increase in the permeability of the medium around the coil to increase the inductance of the inductor. Ferrites are widely used within inductor technology to improve the performance of the inductor.

Are ferrites conductive?

Unlike other ferromagnetic materials, most ferrites are not electrically conductive, making them useful in applications like magnetic cores for transformers to suppress eddy currents. ... Soft ferrites have low coercivity, so they easily change their magnetization and act as conductors of magnetic fields.

Where are iron core inductors?

Iron Core Inductors are often used for low frequency applications, including:

• Audio equipment.
• Industrial power supplies.
• Power conditioning.
• Inverter systems.
• Rapid transit.

How are inductors designed?

The design of an ac inductor is quite similar to that of a transformer. If there is no dc flux in the core, the design calculations are straightforward. The apparent power, Pt, of an inductor is the VA of the inductor; that is, the product of the excitation voltage and the current through the inductor.

How inductors are used to construct transformers?

A transformer is a device made of two or more inductors, one of which is powered by AC, inducing an AC voltage across the second inductor. ... The current drawn by the primary coil from the source to produce this flux is called the magnetizing current, and it also lags the supply voltage by 90°.

What is iron core inductor?

The iron core inductors have a very low value of inductance. In the iron core inductor, by using iron core the inductance value of an inductor can be increased. The iron core inductor is the fixed value inductors which have an iron core placed inside the coiled.

How do you read an inductor value?

There are generally three dots that are read clockwise from the top. The first two dots indicate the significant digits of the inductance value, and the third dot indicates the multiplier. The value of inductance is obtained in Nano Henry.

How do you calculate inductance of a coil?

The formula is: The micro henrys of inductance in a coil = (N^2)(D^2)/(18D + 40L) where "N" equals the number of rings in the coil, "D" equals the diameter of the coil and "L" equals the length of the coil.

Are ferrites diamagnetic?

Zn ferrite films in nano state is shown to acquire ferrimagnetism. But if precautions are not taken the film would be diamagnetic as the bulk material is. ... it has got to de diamagnetic.

Is ferrite a mineral?

Magnetic ceramics are made of ferrites, which are crystalline minerals composed of iron oxide in combination...… Referred to as ferrite, iron in its bcc formation is also called alpha iron in the lower temperature...…

What is the crystal structure of ferrite?

Ferrite, also known as α-ferrite (α-Fe) or alpha iron, is a materials science term for pure iron, with a body-centered cubic B.C.C crystal structure. It is this crystalline structure which gives steel and cast iron their magnetic properties, and is the classic example of a ferromagnetic material.

Does an inductor need a core?

An inductor usually consists of a coil of conducting material, typically insulated copper wire, wrapped around a core either of plastic (to create an air-core inductor) or of a ferromagnetic (or ferrimagnetic) material; the latter is called an "iron core" inductor.

What does a ferrite core do on a cable?

A ferrite cable core is designed to clean common mode noise (signal) generated from either a signal line or power cable. How do Ferrite Cores Work? Ferrite cores are used to suppress electromagnetic emissions by blocking low-frequency noise and absorbing high-frequency noise. This avoids electromagnetic interference.

What is a ferrite core transformer?

Ferrite Core Transformer is non-conductive, ferromagnetic compound that has its winding made from ferrite cores. They are used for high-frequency applications because they carry low coercivity and offer low eddy current losses.

Where do we use inductors?

Inductors are primarily used in electrical power and electronic devices for these major purposes:

• Choking, blocking, attenuating, or filtering/smoothing high frequency noise in electrical circuits.
• Storing and transferring energy in power converters (dc-dc or ac-dc)

Why do inductors oppose current?

But unlike a Capacitor which oppose a change of voltage across their plates, an inductor opposes the rate of change of current flowing through it due to the build up of self-induced energy within its magnetic field.

What is inductor and its applications?

An inductor is defined as a passive component that is used in most electrical circuits to store energy in the form of magnetic energy when electric current flows through it. It is also known as the coil, choke, or reactor. It is a two-terminal electrical component that is characterized by its inductance.
