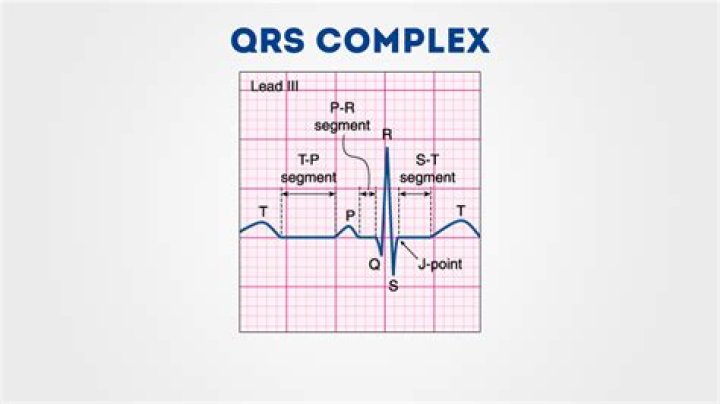

The QRS complex represents the electrical impulse as it spreads through the ventricles and indicates ventricular depolarization. As with the P wave, the QRS complex starts just before ventricular contraction.

What does the QRS complex result from?

A combination of the Q wave, R wave and S wave, the “QRS complex” represents ventricular depolarization. This term can be confusing, as not all ECG leads contain all three of these waves; yet a “QRS complex” is said to be present regardless.

How QRS complex is recorded in ECG?

The signal travels across the heart's ventricles causing them to contract, pumping blood to the lungs and the body. This signal is recorded as the QRS waves on the ECG. Because these waves occur in rapid succession they are usually considered together as the QRS complex.

What is the QRS complex on an ECG?

The QRS complex represents the electrical impulse as it spreads through the ventricles and indicates ventricular depolarization. As with the P wave, the QRS complex starts just before ventricular contraction. It is important to recognize that not every QRS complex will contain Q, R, and S waves.

What does QRS wave represent on ECG?

The QRS wave is produced by the atrioventricular node (AV). The P wave in an ECG complex indicates atrial depolarization. The QRS is responsible for ventricular depolarization and the T wave is ventricular repolarization.

P,Q,R,S,T waves in the EKG

18 related questions found

Why are there 3 parts to a QRS complex?

The three waves of the QRS complex represent ventricular depolarization. For the inexperienced, one of the most confusing aspects of ECG reading is the labeling of these waves.

What part of an electrocardiogram ECG represents ventricular repolarization?

The T wave represents ventricular repolarization. Generally, the T wave exhibits a positive deflection. The reason for this is that the last cells to depolarize in the ventricles are the first to repolarize.

Is the QRS complex systole or diastole?

The QRS complex refers to the combination of the Q, R, and S waves, and indicates ventricular depolarization and contraction (ventricular systole). The Q and S waves are downward waves while the R wave, an upward wave, is the most prominent feature of an ECG.

Is QRS ventricular contraction?

The QRS complex refers to the combination of the Q, R, and S waves, and indicates ventricular depolarization and contraction (ventricular systole).

What does each part of the ECG represent?

There are three main components to an ECG: the P wave, which represents the depolarization of the atria; the QRS complex, which represents the depolarization of the ventricles; and the T wave, which represents the repolarization of the ventricles.

What does a short QRS complex mean?

Tall QRS complexes are usually caused by hypertrophy of one or both ventricles, or by an abnormal pacemaker or aberrantly conducted beat. • Low voltage or abnormally small QRS complexes may be seen in obese patients, hyperthyroid patients and pleural effusion.

How do you calculate QRS voltage?

To calculate the net QRS deflection, add up the number of small squares that correspond to the height of the R wave (positive deflection), and subtract the number of small squares that correspond to the height of the Q and S waves (negative deflection).

How wide is QRS?

This measurement should be 0.12-0.20 seconds, or 3-5 small squares in duration. The second measurement is the width of the QRS which should be less than 3 small squares, or less than 0.12 seconds in duration.

Why is the QRS complex the largest amplitude?

The amplitude of this wave is relatively small, because the atrial muscle mass is limited. The QRS complex corresponds to the largest wave, since it represents the depolarization of the right and left ventricles, being the heart chambers with substantial mass.

What causes narrow QRS complex?

A narrow QRS complex (<120 milliseconds) reflects rapid activation of the ventricles via the normal His-Purkinje system, which in turn suggests that the arrhythmia originates above or within the His bundle (ie, a supraventricular tachycardia).

Why is ECG called Pqrst?

He chose PQRST because he was undoubtedly familiar with Descartes' labeling of successive points on a curve. Perhaps as an afterthought, he recognized that by choosing letters near the middle of the alphabet, he would have other letters to label waves that might be found before the P wave or after the T wave.

What does low voltage QRS mean on ECG?

The QRS is said to be low voltage when:

The amplitudes of all the QRS complexes in the limb leads are < 5 mm; or. The amplitudes of all the QRS complexes in the precordial leads are < 10 mm.

How does an ECG record voltage?

It is used to record the electrical impulses that stimulate the heart. The electrodes record a potential difference. The needle (or pen) of the ECG is deflected a given distance depending on the voltage measured. The ECG is a plot of voltage on the vertical axis against time on the horizontal axis.

What is low voltage QRS on ECG?

Low voltage on the ECG is defined as a peak-to-peak QRS amplitude of less than 5 millimeters in the limb leads and/or less than 10 millimeters in the precordial leads.

How is the QRS complex described in atrial fibrillation?

The diagnosis of atrial fibrillation is confirmed with a standard 12-lead ECG. P waves are absent, coarse “fibrillatory waves” can frequently be seen and sometimes no atrial activity can be identified. The QRS complexes are “irregularly irregular”, with varying R-R intervals.

What does a notched QRS mean?

Abstract. Fragmented QRS is defined as the presence of R' wave or notching of R or S wave in the presence of narrow QRS. It indicates heterogeneous depolarization of the ventricular myocardium that can occur due to ischemia, fibrosis, or scar. It may also be a marker of coronary microvascular dysfunction.

Which of the following parts of an ECG represents the depolarization of the atria?

The P wave and PR segment is an integral part of an electrocardiogram (ECG). It represents the electrical depolarization of the atria of the heart. It is typically a small positive deflection from the isoelectric baseline that occurs just before the QRS complex.

What is the line on an ECG called?

ECG Waveforms. The baseline or isoelectric line. This is represented as a straight line on the ECG paper where there is no positive or negative charges of electricity to create deflections. Waveforms. These are representations of electrical activity created by depolarization and repolarization of the atria and ...

What occurs after the QRS phase of the ECG?

The c wave corresponds to the beginning of ventricular contraction and occurs immediately after the QRS complex of the ECG.
