Should transformer have resistance?
William Howard The ideal transformer has no resistance, but in the actual transformer, there is always some resistance to the primary and secondary windings.
What causes resistance in a transformer?

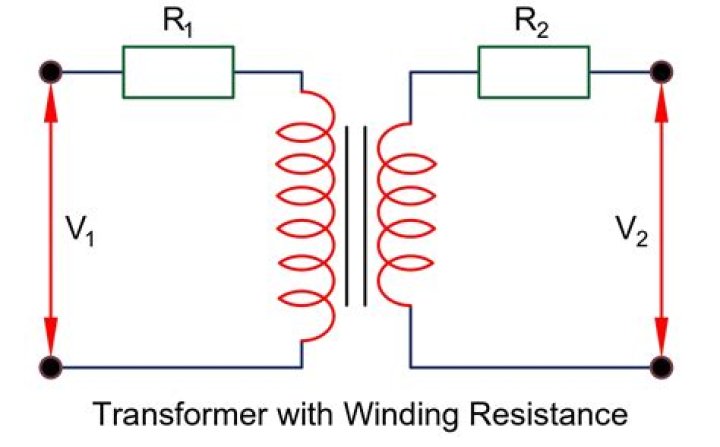

Winding resistance: Current flowing through the windings causes resistive heating of the conductors. Eddy currents: Induced currents circulate in the core and cause it resistive heating. Stray losses: Not all the magnetic field produced by the primary is intercepted by the secondary.
How do you tell if a transformer is bad?
To test your transformer, simply touch the red and black pins of your ohmmeter to the opposite ends of the transformer's wiring. Read the display and compare the resistance on your ohmmeter to the resistance stated on the transformer's data sheet. This is sometimes listed on the transformer's enclosure.
Should a transformer have continuity?
There should not be any continuity between the primary and the secondary on a normal transformer. Raw resistance only gives a rough idea of the viability of a transformer...the real measure is inductance, but that takes other tools to measure.
Does a transformer need a resistor?
The Ring Video Doorbell can only be connected to an AC transformer. ... In addition to the equipment included in your Ring Video Doorbell box, You will need to purchase an electronic resistor. A resistor is REQUIRED in place of a mechanical or electronic doorbell kit for this alternate configuration to work successfully.
Transformer Facts
27 related questions foundDo transformers increase resistance?
But transformer increases the current while decreasing the voltage or decreasing the current while increasing the voltage. A transformer is not a resistor so you can't use Ohm's law on it.
Why use a transformer instead of a resistor?
Ideal resistors dissipate power as heat to drop voltage. Ideal transformers don't have power losses to transfer to a lower voltage (real transformers do due to winding resistance and core losses, but these are typically significantly less than resistors).
What is purpose of winding resistance test in transformer?
Winding resistance measurements in transformers are of fundamental importance for the following purposes: Calculations of the I2R component of conductor losses. Calculation of winding temperature at the end of a temperature test cycle. As a diagnostic tool for assessing possible damage in the field.
How do you test a transformer with a multimeter?
To ensure an accurate reading, check the input voltage with your multimeter. Set the dial to read AC voltage in the appropriate range (usually 200 VAC) and touch the leads to the input terminals. If the transformer plugs into an outlet, simply insert the leads into the outlet slots.
What can damage a transformer?
The most common cause of failure of transformer is insulation failure; it deteriorates due to heat, oxidation, acidity and moisture. Line surges such as switching surges, voltage spikes, line faults and distribution abnormalities.
How do you troubleshoot a transformer?
How to Troubleshoot a Low-Voltage Transformer- Identify the transformer's terminals, using its label as a guide. ...
- Turn a multimeter to its VAC function. ...
- Test the transformer's input voltage with the multimeter, using the transformer's label as a terminal guide. ...
- Test the transformer's output voltage with the multimeter.
What will happen if efficiency of transformer is poor?
Poor efficiency of transformer will cause power loss and so loss of money. Part of the power loss will be used in heating up the primary/secondary windings.
How do you test a Transformers insulation resistance?
How to Perform an Insulation Resistance Test on A Transformer- Isolate the equipment.
- Test the tester. Short the tester leads. Set the voltage range (usually 500V) ...
- Identify the test points. Test between windings. Test between windings and earth.
- Perform the test and record the result.
How can transformer loss be prevented?
Methods to reduce the energy loss in transformer:- Use of low resistance wire for the winding of the coil.
- Heat loss due to eddy current can be reduced by the lamination of the iron core.
- The heat generated can be kept to a minimum by using a magnetic material which has a low hysteresis loss.
Which side of a transformer has a higher resistance?
Step down transformers The voltage into the primary coil of a step down transformer is always greater than the output from the secondary. In a step down transformer, the resistance of the primary winding is always higher than that of the secondary winding.
Is the special test on transformer?
Special tests of transformer is done as per customer requirement to obtain information useful to the user during operation or maintenance of the transformer. ... Measurement of zero-sequence impedance of three-phase transformers 3. Short-circuit test.
How do you find the primary resistance of a transformer?
Current Voltage Method of Measurement of Winding Resistance
In this method of measurement of winding resistance, the test current is injected to the winding and corresponding voltage drop across the winding is measured. By applying simple Ohm's law i.e. Rx = V ⁄ I, one can easily determine the value of resistance.
What is the resistance of primary winding in a transformer?
The primary winding should have ideally zero resistance but it needs an impedance to prevent it shorting out the AC power applied. So, it has inductance and, for a typical power transformer that might be in the realm of 10 henries for 50/60 Hz applications.
What is the resistance between primary and secondary in transformer?
In a transformer the coils are not electricaly connected therefore the resistance is ideally infinite. But an autotransformer does the same using a single coil as primary with one or more taps for secondary in different parts of the coil. In this case the resistance will ideally be ZERO, or a short-circuit if you will.
Can I use a resistor to lower ac voltage?
This type of circuit is called a voltage divider, and is a common way to reduce voltage in a circuit. When the two resistors in the voltage divider are of the same value, the voltage is cut in half. ... You could use a pair of resistors of equal value across the battery leads to provide the necessary 4.5 V.
Why are transformers so efficient?
Electrical transformer is a static device which transfers the power from one circuit to other through electromagnetic induction. ... Losses in the transformer are very less compared to any other rotating machine, hence efficiency of transformers will be very high.
How does a transformer reduce energy loss?
Method to reduce the energy losses in transformer
To minimize the resistance of windings, thick wires with considerably low resistance are used. The use of a shell style core will reduce flux loss. Furthermore, sound is emitted as a result of the core's vibration, resulting in energy loss.
