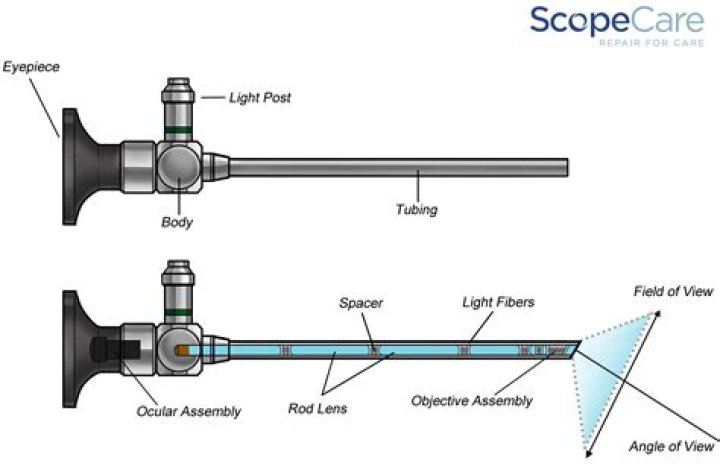

Rigid endoscopes are made of metal tubes which contain the lenses, and the light channel(s) and are available in a large range of external diameters, from 1 to 12 mm. Commonly, rigid endoscopes have a series of high-resolution optical glass rod lenses.

Which endoscope is flexible or rigid?

Flexible endoscopy (FE) is recommended as the first-line therapeutic option because it can be performed under sedation, is cost-effective, and is well tolerated. Rigid endoscopy (RE) under general anesthesia is less used but may be advantageous in some circumstances.

Is a gastroscopy rigid?

The equipment used for upper endoscopy consists of a rigid brass or steel (and sometimes matted steel) tubes which are illuminated with a light. Also comprises of a suction tube, forceps and micro-scissors (long slender instruments to take biopsy etc.)

What is a semi rigid endoscope?

Semi-rigid microendoscopy, a unique concept developed by Polydiagnost to advance treatment options in Urology. The modular approach of Polydiagnost endoscopes provides a toolbox enabling users to customize their system by simply selecting the modules specific to their needs.

What are flexible endoscopes?

Flexible endoscopes are complex medical instruments that are easily damaged. ... The flexible endoscope is constructed of several systems that operate simultaneously to produce a highly technical, yet effective diagnostic and therapeutic medical device.

Proper Endoscope Care - CONMED Tutorial

33 related questions found

How does a rigid endoscope work?

Commonly, rigid endoscopes have a series of high-resolution optical glass rod lenses. The endoscopes can be forward viewing (0 degrees) or angled (10–120 degrees) to allow visualization out of the axis of the telescope and increase the FOV by rotating the instrument.

What is endoscope reprocessor?

AERs are designed to kill microorganisms in or on reusable endoscopes by exposing their outside surfaces and interior channels to high level disinfectant or liquid chemical sterilant solutions. AERs are Class II devices cleared through the premarket notification [510(k)] pathway.

What is a rigid borescope?

Rigid borescope (industrial endoscope) is a rigid visual inspection instrument employing optical lens systems to transmit an image directly to the eyepiece from the inspection object. A fiber bundle is used to illuminate the inspection area.

How do you hold a rigid endoscope?

As with any optical device, Endoscopes are fragile and should be handled with care • Always hold the endoscope by its eyepiece or body, never the tube • Do not bend the tube, or otherwise add mechanical stress • Avoid contact between the objective and other instruments or surfaces • If possible, store the endoscopes ...

What is the difference between rigid and flexible esophagoscopy?

Diagnostic esophagoscopy has the lowest rate of perforation, and the flexible technique appears to be safer (0.018% to 0.03% perforation rate) ^[12,26] than the rigid one (0.074% to 0.68%) ^[10,25]. This difference is small but real.

What is the difference between esophagoscopy and EGD?

Esophagoscopy (involves examining the food pipe). Gastroscopy (involves examining the stomach). Esophagogastroduodenoscopy (involves examining the food pipe, stomach, and first part of the bowel).

Can a rigid endoscope be used for a colonoscopy?

EGDs and colonoscopies are performed primarily with a flexible endoscope as opposed to a rigid endoscope. A rigid endoscope is made of metal, does not bend, and is used mainly for cystoscopies and rhinoscopies. When performing any type of endoscopic procedure, it is important to wear gloves.

How do I choose an endoscope?

Guide To Choosing The Right Endoscope Camera

1. Compatibility. The most important thing to consider before buying an endoscope is what devices it will be compatible with. ...
2. Camera quality. ...
3. Length. ...
4. Battery life.

How many types of endoscopy are there?

There are several types of endoscopy. Those using natural body openings include esophagogastroduodenoscopy (EGD) which is often called upper endoscopy, gastroscopy, enteroscopy, endoscopic ultrasound (EUS), endoscopic retrograde cholangiopancreatography (ERCP), colonoscopy, and sigmoidoscopy.

How do you inspect a rigid endoscope?

When inspecting rigid endoscopes for optical function, look closely at printed words to ensure the image is clear and sharp, and not at items across the room which will appear fuzzy at such a distance.

What chemical is used to clean endoscopes?

An automated machine using peracetic acid to sterilize medical, surgical, and dental instruments chemically (e.g., endoscopes, arthroscopes) was introduced in 1988. This microprocessor-controlled, low-temperature sterilization method is commonly used in the United States.

What is bore scoping?

A borescope is an optical tool used to view areas that would otherwise not be visible. A borescope is inserted into the item being evaluated without destroying the item of interest.

What is engine borescope?

Borescope: Defined

Borescopes are essentially thin tubes fitted with a series of lenses and a light. The structure of this camera system is designed to be fully flexible and adjustable, making it possible to examine tight areas without damaging any components.

What are the types of borescope?

As explained above, there are three main types of borescopes: rigid, semi-rigid, and flexible units. Rigid borescopes that consist of a straight tube provide high-quality views.

What is a scope buddy?

The SCOPE BUDDY™ Endoscope Flushing Aid reduces the risk of repetitive motion injuries by providing continuous, hands-free channel flushing. With a simple one-touch operation, Scope Buddy quickly and quietly delivers fluids to endoscope channels.

Why is it called endoscope?

History. The term endoscope was first used on February 7, 1855, by engineer-optician Charles Chevalier, in reference to the uréthroscope of Désormeaux, who himself began using the former term a month later.

What does a Medivator do?

MEDIVATORS ADVANTAGE PLUS Endoscope Reprocessing System tests, cleans, disinfects and rinses endoscopes, such as fiberoptic and video endoscopes between patient uses. The ADVANTAGE PLUS system is indicated to provide high level disinfection of heat sensitive semi-critical endoscopes and related accessories.

What are endoscopes physics?

Endoscopes use optical fibres to produce an image of inside the body. A doctor can insert a bundle of optical fibres into the body. Some carry light into the body, and some carry light reflected off internal body surfaces back out. ... You may be required to compare the use of endoscopes with CT scans in the exam.

How are endoscopes used?

Endoscopes can be put into the body through the mouth and down the throat, or through the bottom. An endoscope can also be put inside the body through a small cut (incision) made in the skin when keyhole surgery is being done.
