noun A flat-ended, double-cutting drill ground with two radial cutting-edges opposed to each other and without a center point: used to cut slots. It is traversed laterally or lengthwise as it operates, and really acts like an end-mill. Also called traversing drill .

Can you drill with a slot drill?

A slot drill will drill a hole because the cutting surfaces overlap, thus giving a cut for the full width of the hole. A typical end mill will not do this, as the centre of the cutter has no cutting capability, therefore it will only work going in a horizontal direction, either as an end cutter, or as a side cutter.

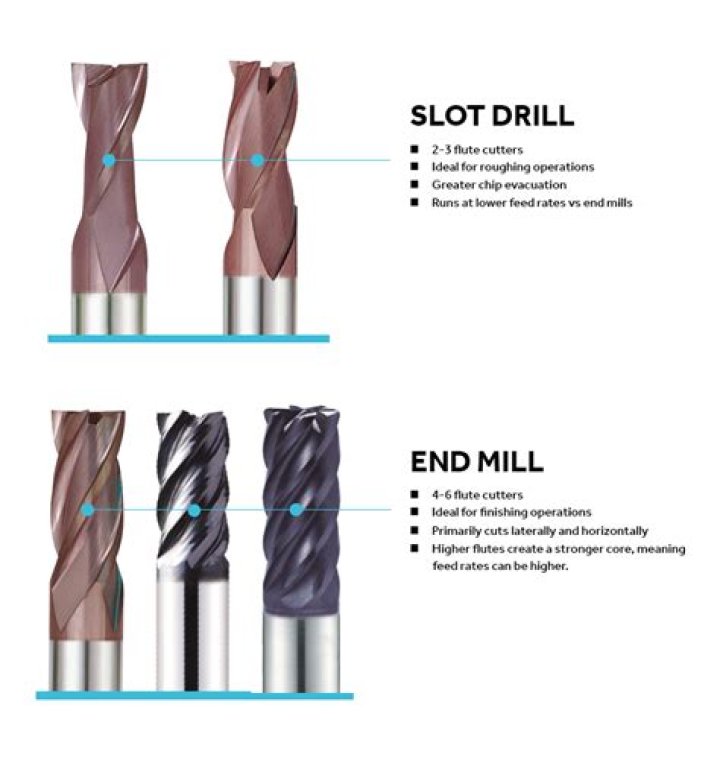

What is the difference between an end mill and a slot drill for use on a milling machine?

End Mills cut rotationally in a horizontal, or lateral (side to side) direction whereas a drill bit only cuts straight down, vertically into the material. ... End mills are the cutters of the milling world and are used for slotting, profiling, contouring, counter-boring, and reaming.

What is the difference between an end mill and a slot mill?

The second distinction is whether it will cut a slot true to width or not. A two flute slot drill will, a four flute end mill cuts oversize, a three flute centre cutting slot drill/end mill (as popularised by the Clarkson FC3 "throwaway" cutters) should cut to size and a five flute cutter might.

What does it mean to ream a hole?

A reamer is a type of rotary cutting tool used in metalworking. Precision reamers are designed to enlarge the size of a previously formed hole by a small amount but with a high degree of accuracy to leave smooth sides. ... The process of enlarging the hole is called reaming.

Basic info about endmills and slotdrills

22 related questions found

What is a slot milling?

Groove or slot milling is an operation in which side and face milling is often preferred to end milling. Slots or grooves can be short or long, closed or open, straight or non-straight, deep or shallow, wide or narrow. Tool selection is normally determined by the width and depth of the groove and, to some extent, ...

Can you use milling bits in a router?

I've used end mills to do cuts using a router, where I needed a longer reach than I could get with a router bit. I had no problems and it gave a good cut. I used to use endmills in machine shop when doing little wood projects and they always seemed to work fine.

Can you plunge cut with an end mill?

Square end mills are used for general milling applications including slotting, profiling and plunge cutting.

What is the purpose of face milling?

Face milling operation

Facing on a milling machine is the process of cutting a flat surface perpendicular to the axes of the milling cutter. This process removes the material by rotating the facing tool in the counterclockwise direction as the table feeds the work piece across the cutter.

What machine is a slot drill used on?

Slot drills are a type of milling cutters distinguished from the drill bit in its application, geometry, and manufacture. While a drill bit can only cut in the axial direction, milling or slot drills bit can generally cut in all directions, though some cannot cut axially.

Which of the following is also known as slot drill?

Explanation: Generally 3 or 4 flute drill is also known as slot drill. Slot drill is a double cutting drill with flat end.

Why is T slot milling used?

They are used for machining hard, high strength materials up to a hardness of 40 RC. A vertical slot must be cut first so that neck and shank may enter cut. Use with standard end mill arbors. Cobalt Roughing T-Slot Cutters are designed for rapid milling T-slots into tougher materials where finish is not as important.

What is slotting CNC?

Shaping (sometimes called slotting) is a machining process whereby a work piece is held on the machine table, which is then advanced into the path of a reciprocating ram, upon which is mounted a single-point cutting tool. ... Slotting can also be used to cut external shapes and forms as well.

What is the name of slotting tool?

Slotter Machine Definition:

(The Reciprocating type of Machine tools are Shaper, Planner and Slotter Machine). We also called this machine is a vertical shaper machine. It is known mostly for machining internal surfaces.

What does it mean to slot holes?

Slotted holes are basic geometric shapes consisting of two arcs connected by straight lines. Slotted holes are one possible manufacturing form for drilling patterns.

Why drill bit is overheated in drilling operation?

If the speed is too fast (the drill spins too quickly) the drill bit will not bite into the metal, it will just spin without cutting very much. This causes a lot of friction, which overheats the drill bit and makes it dull.
