A trembler coil, buzz coil or vibrator coil is a type of high-voltage ignition coil used in the ignition system of early automobiles, most notably the Benz Patent-Motorwagen and the Ford Model T. Its ...

How does trembler coil work?

The trembler coil was a device called a Ruhmkorff or induction coil, widely used in the 19th century. ... When battery power is applied, the coil acts as an electromagnet; the magnetic field from the core pulls the springy iron arm, opening the switch contacts, interrupting the primary current.

What is an ignition coil What does it do?

The ignition coil, sometimes known as a spark coil, helps to start a car's engine. It's an essential part of the ignition system. A car's battery has a low voltage (12 volts), but thousands of volts are needed to initiate the ignition on the spark plug. ... Without combustion, your car isn't going to start at all!

What does a high performance ignition coil do?

Engine performance can be helped by a high performance ignition coil. The higher voltage allows for a larger spark plug gap, which results in a more robust initial flame kernal. The result is an increase in engine power.

What is an ignition coil an example of?

This coil is a kind of transformer. Transformers transfer voltage from one circuit to another, either as a higher voltage (as in a step-up transformer, of which the ignition coil is an example), or a lower voltage (a step-down transformer).

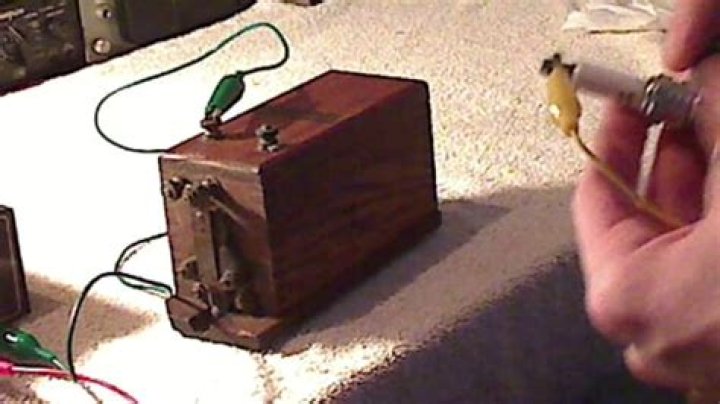

Ford model T ignition coil - "Buzz" or "Trembler" coil demonstration!

22 related questions found

What are the different types of ignition coils?

Ignition Coil Types

• Conventional Ignition Coil.
• Electronic Ignition Coil.
• Distributor-less Ignition Coil (DIS)
• Coil-on-Plug Ignition Coil (COP)

What causes ignition coils to keep going bad?

The leading cause of premature failure of an ignition coil is due to a worn or bad spark plug ignition cable. A bad spark plug ignition cable will have a much higher than normal resistance. ... This excessive voltage creates a high amount of heat which consequently melts the coil's wire insulation.

Are high performance ignition coils worth it?

A high performance ignition coil helps engine performance four important ways. First, the higher voltage allows for a larger spark plug gap, which results in a more robust initial flame kernal at the start of combustion. The result is a real-world engine torque increase.

Are Upgraded ignition coils worth it?

The coil's job is to draw power from the battery and boost it for ignition. Whether working with coil packs or traditional canister style coils, the advantage of an upgraded coil makes for a hotter spark. Intensifying the heat makes it easier to burn the fuel and air mixture. This translates to improved performance.

Do upgraded coil packs increase horsepower?

Although the new coil packs produced 40,000 volts under load, as opposed to 25,000 volts for the stock ones, it was always known that aftermarket ignition systems, high voltage coils, etc. did not result in horsepower gains for low rpm stock engines.

Are cheap ignition coils any good?

While low-grade coils cause misfiring and difficult starting, using them can have more serious consequences. As coils are controlled by the engine management computer (ECU) they rely on fly-back voltages that are fed back after the spark plug has been 'fired.

What a bad ignition coil looks like?

Once the engine is cranked, you should look for blue sparks along the spark plug gap. If you can see blue sparks, this proves your ignition coil is working correctly. If you don't see blue sparks or you see orange sparks, this is a sign that there's a problem with your ignition coil.

How often should ignition coils be replaced?

The ignition coil on car is supposed to last around 100,000 miles or more. You will have reduced gas mileage when coil begins to go bad and becomes less able to transfer power. Your car requires more fuel to run, this means you will spend more money on gas than normal.

How many coil packs are in a car?

Modern cars usually have one ignition coil for every spark plug. So, if you have a six-cylinder engine, there is a strong possibility you have six coils. However, there are exceptions. Some cars have one ignition coil for every two spark plugs.

How many volts does a Model T coil produce?

The magneto output is an ac signal of varying voltage, frequency and current with eight complete cycles for each crankshaft revolution. The voltage varies over the normal range of engine speed from a low of 4 volts to a high of over 30 volts with sufficient current capacity to operate the coil.

Which brand of ignition coil is the best?

Best Ignition Coil Reviews & Recommendations 2020

• Best Overall. Delphi GN10328 Ignition Coil. ...
• Best Value. ENA 8-Pack Ignition Coil Set. ...
• Honorable Mention. King Auto Parts Combo Pack of Ignition Coils for Honda, Acura, Saturn.

Are aftermarket ignition coils as good as OEM?

The answer is a resounding "yes". OEM ignition coils deliver a lot more value than aftermarket ones.

Does brand matter for ignition coils?

Many people ask: does ignition coil brand matter? As with other parts, the best option would be to buy an OEM one (original), the same as that installed in the factory.

What Ohm ignition coil should I use?

Measuring Coil Secondary Resistance: For best performance, coil should have 7K Ohms or more secondary resistance. To measure secondary resistance: Label and remove all wires to coil ( + or - ).

Can new spark plugs increase horsepower?

In short, yes, in some situations spark plugs can increase horsepower. ... These 'massive' gains of one or two per cent generally won't be exceeded, even if you're replacing really old and worn spark plugs for new ones. In this case, your essentially just restoring your car back to its peak performance.

Where are Delphi coils made?

It is different then the original, even though it says Delphi on it, it is made in China and really looks like a generic coil with the name Dekphi added to it.

Should you replace all ignition coils at the same time?

A faulty ignition coil cannot be repaired; it must be replaced. In cases like this, to prevent future problems, your mechanic may recommend replacing all three rear ignition coils. Whenever one of the ignition coils goes bad, it's also recommended replacing all spark plugs if they haven't been replaced in a while.

Can you replace only one ignition coil?

You can, of course, change just one coil. However, as a mechanic, I've seen it so many times, when one coil fails, another isn't too far behind. If your coils are easy to access, replacing them as they fail is OK, apart from the inconvenience. It is possible to drive a car with a faulty coil, but it isn't advised.

How many volts should come out of a coil?

Electricity Goes Out

The average vehicle ignition coil puts out 20,000 to 30,000 volts, and coils used in racing applications are capable of 50,000 or more volts at a constant rate. This new voltage is then routed to the distributor via the coil wire, which is just like the spark plug wires, only normally much shorter.
