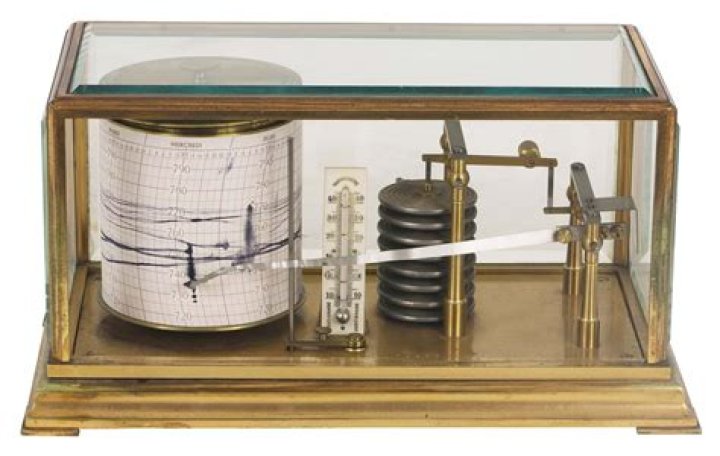

What is barograph measurement?
Sophia Bowman A barograph is a barometer that records the barometric pressure over time in graphical form. This instrument is also used to make a continuous recording of atmospheric pressure.
What is a normal barometric measure?
A barometer measures barometric pressure. Measurement of barometric pressure can be expressed in millibars(mb) or in inches or millimeters of mercury (Hg). Normal pressure at sea level is 1013.3 millibars or 29.92 inches of mercury. Fluctuations in barometric pressure are usually a sign of weather conditions.
What does a simple barometer measure?
A barometer is a scientific instrument used in meteorology to measure atmospheric pressure. A simple barometer consists of a long glass tube (closed at one end, open at the other) filled with mercury and turned upside down into a container of mercury. ... As air pressure decreases, more of the mercury drains from the tube.
How do you measure air pressure?
Atmospheric pressure is the pressure caused by the mass of our gaseous atmosphere. It can be measured using mercury in the equation atmospheric pressure = density of mercury x acceleration due to gravity x height of column of mercury.
Why do we measure air pressure?
Atmospheric pressure is an indicator of weather. Changes in the atmosphere, including changes in air pressure, affect the weather. Meteorologists use barometers to predict short-term changes in the weather. A rapid drop in atmospheric pressure means that a low-pressure system is arriving.
barograph
43 related questions foundWhat is pressure measured in?
The standard SI unit for pressure measurement is the Pascal (Pa) which is equivalent to one Newton per square meter (N/m2) or the KiloPascal (kPa) where 1 kPa = 1000 Pa. In the English system, pressure is usually expressed in pounds per square inch (psi).
How does a barometer work?
How does a barometer work? Simply put, a barometer acts like a balance that 'balances' the weight of the atmosphere (or air around you) against the weight of a mercury column. If the air pressure is high, the mercury will rise. At low air pressure, the mercury goes down.
What is barometer very short answer?
A barometer is a scientific instrument that is used to measure air pressure in a certain environment. Pressure tendency can forecast short term changes in the weather. Many measurements of air pressure are used within surface weather analysis to help find surface troughs, pressure systems and frontal boundaries.
What are the advantages of barometer?
The advantages of use of mercury in a barometer are :- its density is very high.
- it has low vapour pressure.
- its rate of evaporation is not very high.
- it neither wets nor sticks to glass.
- its surface is shining and opaque.
What is barograph used for?
A barograph is a barometer that records the barometric pressure over time in graphical form. This instrument is also used to make a continuous recording of atmospheric pressure.
Can high barometric pressure cause headaches?
Several studies have suggested that changes in weather, and especially changes in pressure, increase the likelihood of having a headache. Some people experience high-altitude headaches due to changes in barometric pressure, such as during plane travel.
What level of barometric pressure causes headaches?
Specifically, we found that the range from 1003 to <1007 hPa, i.e., 6–10 hPa below standard atmospheric pressure, was most likely to induce migraine. In the study by Mukamal et al. (2009), the mean atmospheric variation was 7.9 mmHg, which is consistent with our finding.
How does a barometer measure height?
Measuring a Building's Height With a Barometer- Measure the height of the barometer and then stand it next to the building when the sun is about 45 degrees in the sky. ...
- Drop the barometer off the top of the building, measure how long it takes to hit the ground, and use this value to calculate the height of the building.
How does a barometer measure pressure?
The barometer works by balancing the weight of mercury in the glass tube against the atmospheric pressure, much like a set of scales. ... If the weight of mercury is less than the atmospheric pressure, the mercury level in the glass tube rises (high pressure).
What is barometer with diagram?
Simple barometer
An inverted glass tube is standing in the bath of mercury and air pressure is exerted on the surface of mercury. The pressure at the top of the mercury column is zero as there is a vacuum there.
Where should barometers be placed?
While an inside or outside wall won't make a difference in your barometer's performance, placing it too near a heat source may. Situate your barometer so that it is not near a heating vent or sitting in direct sun. This is especially important if your barometer is also a combination thermometer.
What are the 4 types of pressure?
The different types of pressure are differentiated only by the reference pressure.- Absolute pressure. The clearest reference pressure is the pressure zero, which exists in the air-free space of the universe. ...
- Atmospheric pressure. ...
- Differential pressure. ...
- Overpressure (gauge pressure) ...
- Contact us.
How is pressure defined?
pressure, in the physical sciences, the perpendicular force per unit area, or the stress at a point within a confined fluid. ... In SI units, pressure is measured in pascals; one pascal equals one newton per square metre. Atmospheric pressure is close to 100,000 pascals.
What are the two units used to measure air pressure?
A: The units used for measuring pressure are Pascals(Pa) in SI units, which is equal to about one Newton-per-Square-Meter, and Pounds-per-Square-Inch (PSI) in Imperial units.
