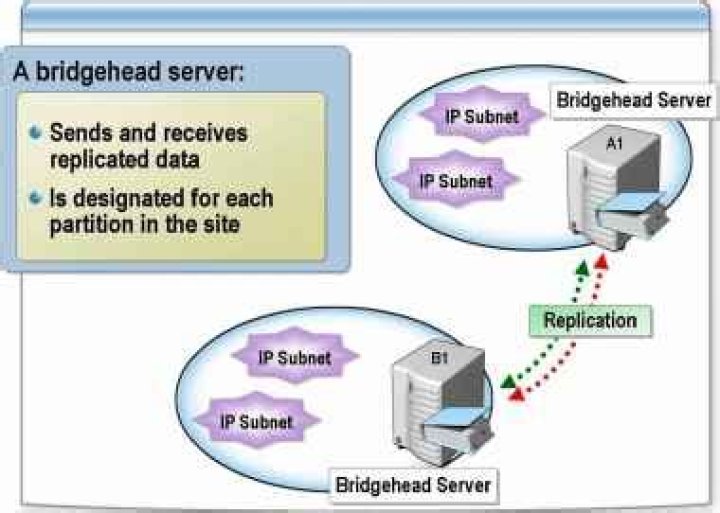

A bridgehead server is a server that is mainly used for intersite replication. You can configure a bridgehead server for every site that is created for each intersite replication protocol. This helps to control the server that is used to replicate information to other servers.

Do you need a bridgehead server?

A bridgehead server is a domain controller (DC) that functions as the primary route of Active Directory (AD) replication data moving into and out of sites. ... Therefore, if you have DCs from multiple domains in each of your sites, you'll need multiple bridgehead servers to transport each domain's replication traffic.

How do I find my bridgehead server?

In the left pane, right-click on Monitored Servers and select Add Monitored Server. Use the Add Monitored Server Wizard to add a server in the site you want to find the bridgehead server(s) for. In the left pane, right-click on the server and select Show BridgeHead Servers → In This Server's Site.

How do you make a bridgehead server?

Solution

1. Open the Active Directory Sites and Services snap-in.
2. In the left pane, expand Sites , expand the site where the server you want to set as a bridgehead is contained and expand the Servers container.
3. Right-click on the server you want to set as the bridgehead and select Properties.

How can I tell if a bridgehead server is a domain controller?

One way to check which DCs are acting as bridgehead servers for a site is to view the connection objects by using the Microsoft Management Console (MMC) Active Directory Sites and Services snap-in, which shows the DCs each DC is replicating with.

Manually configured bridgehead server and it's impact on Intersite-replication

39 related questions found

What is a global catalog used for?

The global catalog (GC) allows users and applications to find objects in an Active Directory domain tree, given one or more attributes of the target object. The global catalog contains a partial replica of every naming context in the directory.

What is repadmin?

Repadmin is a cmd application for diagnosing AD replication issues. Via Repadmin it is easy to view replication topology for every domain controller. And use this knowledge to manually change it and initiate replication communications between controllers.

What do domain controller do?

A domain controller is a server that responds to authentication requests and verifies users on computer networks. Domains are a hierarchical way of organizing users and computers that work together on the same network. The domain controller keeps all of that data organized and secured.

What is Universal Group Membership Caching?

When a user attempts to log on for the first time, the Domain Controller obtains the universal group membership for that user from a Global Catalog. This information is cached on the Domain Controller for that site indefinitely and is periodically refreshed in every 8 hours.

How do I run KCC?

Using a graphical user interface

1. Open the Active Directory Sites and Services snap-in.
2. In the left pane, browse to the NTDS Settings object for the server you want to trigger the KCC for.
3. Right-click on NTDS Settings , select All Tasks, and Check Replication Topology.
4. Click OK.

What is Active Directory bridge?

Active Directory Bridging (AD Bridging) is a mechanism that allows users to log on to non-Windows systems using Active Directory (AD) login credentials. Active Directory is a Windows directory service that lets IT administrators easily manage the users, applications, data, and other aspects of their IT network.

What is domain controller replication?

Active Directory replication is the method of transferring and updating Active Directory objects from one DC to another DC. The connections between DCs are built based on their locations within a forest and site.

What is a site link bridge?

A site link bridge connects two or more site links and enables transitivity between site links. Each site link in a bridge must have a site in common with another site link in the bridge.

What is the purpose of Universal Group Membership Caching?

One of the method we can use for that is universal group membership caching. If the branch office AD servers are not acting as global catalog servers, UGMC allows to store data about membership of the universal groups in cache. This cache is set to update in every eight hours by default.

How do you set the Universal Group Membership Caching in AD?

Solution

1. Open the Active Directory Sites and Services snap-in.
2. In the left pane, browse to the site you want to enable group caching for and click on it.
3. In the right pane, double-click on the NTDS Site Settings object.
4. Under Universal Group Membership Caching, check the box beside Enable Universal Group Caching.

What is Fsmo?

Flexible single master operation (FSMO) is a Microsoft Active Directory feature that is a specialized domain controller task used when standard data transfer and update methods are inadequate. Tasks that do not suit multimaster replication are only viable as flexible single-master operations.

What is the role of server?

The server is the computer that is providing information or services to the other computer. The networks rely on each other to provide and share information and services.

Is domain controller same as DNS?

In a small environment, at least one domain controller (DC) should be a DNS server. It is possible to install DNS on servers which are not DCs, including non-Windows servers, but installing DNS on DCs allows the use of AD-integrated lookup zones (see below), which improve security and simplify zone replication.

What is a DNS server do?

A DNS server – short for Domain Name System server – converts web addresses into IP addresses. Without a DNS server, you won't be able to connect to any websites. If you're having issues with your default DNS server, you can change it.

What does DCDiag actually do?

DCDiag is the comprehensive, built-in utility for checking the health of an Active Directory Domain Controller. This command runs 20+ checks against the selected DC including DNS health, replication health, general errors, and more.

What is KCC in Active Directory?

The Knowledge Consistency Checker (KCC) creates connection objects automatically, but they can also be created manually. Connection objects created by the KCC appear in the Active Directory Sites and Services snap-in as <automatically generated> and are considered adequate under normal operating conditions.

What is netdiag?

The Netdiag command-line diagnostic tool helps to isolate networking and connectivity problems by performing a series of tests to determine the state of your network client. ... For examples of how this command can be used, see Examples.

What is a global catalog server?

A Global Catalog server is a Domain Controller that stores Global Catalog information; its database stores rows for every object in the AD Forest instead of rows for only the objects in one AD DOMAIN.

What global catalog means?

The global catalog is a feature of Active Directory (“AD”) domain controllers that allows for a domain controller to provide information on any object in the forest, regardless of whether the object is a member of the domain controller's domain.

What happens if global catalog fails?

Without access to a Global Catalog server, Outlook clients will not be able to open the Global Address List or resolve the e-mail addresses of message recipients within the forest. The global catalog provides a resource for searching an Active Directory forest.
