The term—deep drawing— refers specifically to the depth of the item that is created, which is equal to or greater than its diameter. The deep drawing process involves a single metal blank and forming it into a 3D round, square, or rectangular shape called a case or enclosure.

What is deep drawing in manufacturing?

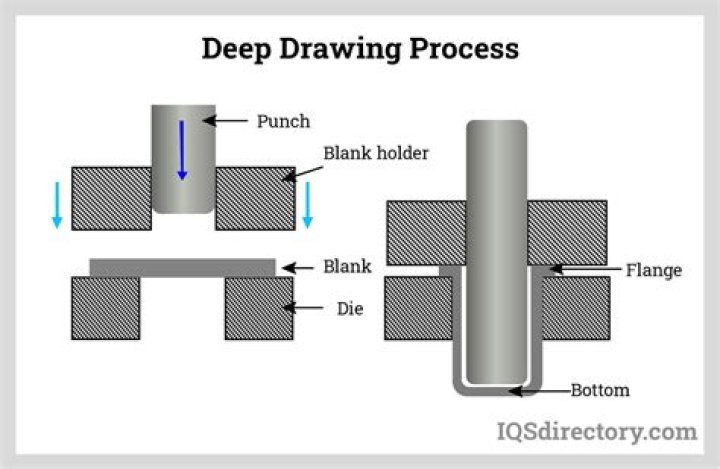

Deep drawing is a sheet metal forming process in which a sheet metal blank is radially drawn into a forming die by the mechanical action of a punch. ... The process is considered "deep" drawing when the depth of the drawn part exceeds its diameter. This is achieved by redrawing the part through a series of dies.

What do you mean by deep drawing process?

Deep Drawing process

Deep drawing is a process in sheet metal forming by the mechanical action of a punch. A flat sheet metal blank is formed over a single, rigid, shape defning tool half by a flexible rubber diaphragm under uniform hydrostatic pressure.

What is the purpose of deep drawing?

Deep drawing is used for sheet metal and various plastics. The process is equally suitable for industrial small-series and mass production. Many everyday objects consist of deep-drawn parts.

What is deep or cup drawing?

Deep drawing is a sheet metal forming process used industrially to produce cup-shaped, box-shaped, and other complex-curved hollow-shaped sheet parts.

Deep-drawn manufacturing process for MDI cans

34 related questions found

Which of the following are the example of deep drawing?

To manufacture the product more quickly, more efficiently and with higher quality. The most common examples of deep drawing are probably the beer or soft drinks cans we buy. Or the kitchen sinks we have at home.

What is cup drawing process?

The process of cup-drawing may be considered as con- sisting of the following parts : (1) Radial drawing of material over a die : (a> Plane drawing of material in the rim region under. (b) Plane drawing of material not in contact with the.

What are the equipment used in the deep drawing process?

Both mechanical and hydraulic presses are used in the deep draw manufacturing process. Precision punches and dies are tools usually made of steel and iron. However, materials for punches and dies can span from plastics to carbides. Deep drawn parts are usually created at speeds of 4″-12″ per second.

What are the features of the deep drawing process and what product is one of its most popular applications?

Deep drawing is perhaps most useful for creating cylindrical objects: a circular metal blank can easily be drawn down into a 3D circular object with a single draw ratio, minimizing both production time and cost. Production of aluminum cans is one example of a popular use of this method.

How does a deep drawing press work?

Deep drawing presswork is the industrial manufacturing process of progressively forming a piece of sheet metal into a three dimensional shape by mechanically drawing the metal sheet 'blank' into a forming die which will cut into the metal; eventually forming the required shape of the product..

How deep drawing is different than shallow drawing?

Shallow drawing is used to describe the process where the depth of draw is less than the smallest dimension of the opening; otherwise, it is considered deep drawing. Drawing leads to wrinkling and puckering at the edge where the sheet metal is clamped. This is usually removed by a separate trimming operation.

What is wrinkling in deep drawing?

One of the primary defects that occurs in deep drawing operations is the wrinkling of sheet metal material, generally in the wall or flange of the part. The flange of the blank undergoes radial drawing stress and tangential compressive stress during the stamping process, which sometimes results in wrinkles.

What is limiting drawing ratio in deep drawing?

The limiting drawing ratio (LDR) test evaluates the deep drawability of sheet metals. It indicates the maximum ratio of circular blanks to the diameter of the die, by deep drawing the blank into a cup, without crack formation.

What are the defects in deep drawing process?

The most common defects in deep drawing operations are wrinkling, galling, orange peeling, earing, and tearing.

What is mean by deep drawing Mcq?

Explanation: Deep drawing or Cup drawing: It is a process in which a raw material sheet is deformed plastically between the punch and die working process to convert into a cup-shaped component.

What are the common failures in deep drawing operation?

5 Common Deep Draw Problems and How to Avoid Them

• Metal Fracture.
• Wrinkles on the Top Edge.
• Uneven Top Rim.
• Fractures at the Bottom of the Cup.
• Excess Material at the top of the Drawn Shell.

What is the difference between deep drawing and bar drawing?

12.4 What is the difference between deep drawing and bar drawing? Answer. Deep drawing is a sheet metal forming process used to fabricate cup-shaped parts; bar drawing is a bulk deformation process used to reduce the diameter of a cylindrical workpart.

What are different types of drawing processes?

Drawing process can be divided into following three types.

• Wire Drawing: A wire is a circular, small diameter flexible rod. ...
• Rod Drawing: Rod drawing is similar process like wire drawing except it is rigid and has larger diameter compare to wire. ...
• Tube Drawing: ...
• Working Process:

What is Rod drawing?

From Wikipedia, the free encyclopedia. Rod drawing may refer to: Bar drawing, the drawing of solid stock through a die to decrease its cross-section. Rod drawing, a specific type of tube drawing that uses a rod as a mandrel.

Is deep drawing expensive?

In general, the deep drawing method is highly valuable for large quantity or long run production orders for multiple reasons. ... The deep drawing method is typically associated with lower costs of raw materials than traditional methods.

How do you find the blank size of a deep drawing?

Calculation steps of blank size:

1. Determine the margin for trimming.
2. Calculate the surface area of the drawn part. The deep drawing is divided into several simple geometries. Find the surface area ofeach simple geometry. ...
3. According to the principle of equal surface area, find the diameter of the blank.

What is actual draw ratio?

DR is defined as the ratio of the blank diameter to the punch diameter, and LDR is defined as the highest value of the ratio of the blank diameter to the punch diameter that can be drawn out without failure, which can be expressed as follows:(1.1)LDR=(Db/Dp)maxwhere Db and Dp are the diameters of blank and punch, ...

What is draw ratio?

The draw ratio is the relationship between the size of the draw post and the size of the blank. The draw ratio must fall within acceptable limits to allow metal to flow. During forming, a blank is forced into circumferential compression, which creates a resistance to flow.

What is ironing in deep drawing?

From Wikipedia, the free encyclopedia. Ironing is a sheet metal forming process that uniformly thins the workpiece in a specific area. This is a very useful process when employed in combination with deep drawing to produce a uniform wall thickness part with greater height-to-diameter ratio.

What is difference between punching and blanking?

If you punch a hole out of a piece of paper and keep the circular piece, then you have blanked the paper. If you keep the sheet of paper and throw away the punched-out piece, then you have punched the paper.
