Two parallel lines on the outside of an ellipse perpendicular to the major axis. Directrices can be used to define an ellipse.

How do you find the directrices of an ellipse?

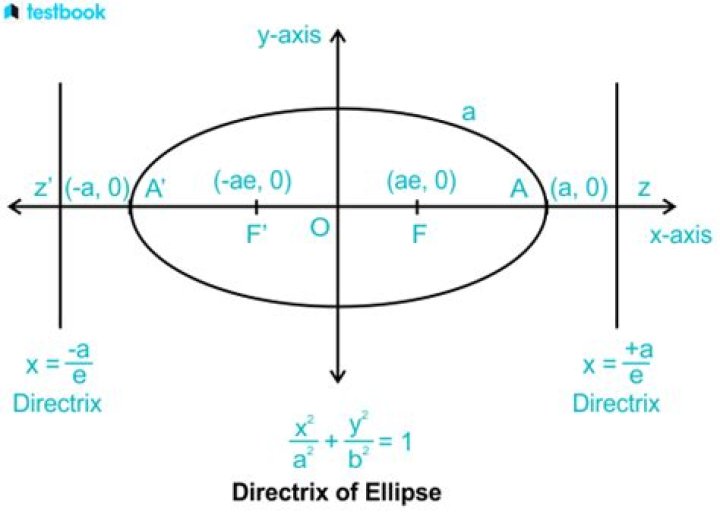

If an ellipse has centre (0,0), eccentricity e and semi-major axis a in the x-direction, then its foci are at (±ae,0) and its directrices are x=±a/e.

How do you find the radius of an ellipse?

One-half of the length of the major axis. One-half of the length of the minor axis. The equation of an ellipse written in the form (x−h)2a2+(y−k)2b2=1. The center is (h,k) and the larger of a and b is the major radius and the smaller is the minor radius.

What is focus and Directrix in ellipse?

In the presence of a point F and a straight line d, ellipse can be characterized is the locus of points P whose distances to F and d are in a fixed ratio less than 1: dist(P, F) / dist(P, d) = const < 1. The point is called a focus and the line a directrix of the ellipse.

What is the directrix?

A parabola is set of all points in a plane which are an equal distance away from a given point and given line. The point is called the focus of the parabola, and the line is called the directrix . The directrix is perpendicular to the axis of symmetry of a parabola and does not touch the parabola.

Vertex axis focus directrix of an ellipse (KristaKingMath)

17 related questions found

What is Directrices of hyperbola?

Two parallel lines which are perpendicular to the major axis of a hyperbola.

What is radius of ellipse?

The radius is the line from the center of an object to its perimeter. An ellipse, which is like a circle that has been elongated in one direction, has two radii: a longer one, the semimajor axis, and a shorter one, the semiminor axis. ... Measure the distance of the point on the perimeter from each of the foci.

How do you find the center and radius of an ellipse?

Steps to Find the Center and Radii of an Ellipse

Given the equation (x−h)2a2+(y−k)2b2=1 ( x − h ) 2 a 2 + ( y − k ) 2 b 2 = 1 , or (x−h)2b2+(y−k)2a2=1 ( x − h ) 2 b 2 + ( y − k ) 2 a 2 = 1 , the coordinates (h,k) is the center of the ellipse.

What is diameter of ellipse?

Definition : A line through the centre of an ellipse is called a diameter of the ellipse. The equation of the diameter bisecting the chords. of slope. of the ellipse.

What is focus and directrix?

A parabola is set of all points in a plane which are an equal distance away from a given point and given line. The point is called the focus of the parabola and the line is called the directrix.

How do you find the focus and directrix?

Focus & directrix of a parabola from the equation

So the focus is (h, k + C), the vertex is (h, k) and the directrix is y = k – C.

How do you find the coordinates of the focus and the equation of directrix?

The standard form is (x - h)² = 4p (y - k), where the focus is (h, k + p) and the directrix is y = k - p. If the parabola is rotated so that its vertex is (h,k) and its axis of symmetry is parallel to the x-axis, it has an equation of (y - k)² = 4p (x - h), where the focus is (h + p, k) and the directrix is x = h - p.

Do ellipses have directrices?

directrix: A line used to construct and define a conic section; a parabola has one directrix; ellipses and hyperbolas have two (plural: directrices).

What are the equation of the directrices of an ellipse whose major axis is parallel to Y axis?

If the x-coordinates of the given vertices and foci are the same, then the major axis is parallel to the y-axis. Use the standard form (x−h)2b2+(y−k)2a2=1 ( x − h ) 2 b 2 + ( y − k ) 2 a 2 = 1 .

What is meant by Latus Rectum?

: a chord of a conic section (such as an ellipse) that passes through a focus and is parallel to the directrix.

What is the coordinate of the center of the ellipse?

the center of the ellipse is (0,0) the coordinates of the vertices are (0,±a)=(0,±√25)=(0,±5)

What is the standard equation of an ellipse?

Given an ellipse on the coordinate plane, Sal finds its standard equation, which is an equation in the form (x-h)²/a²+(y-k)²/b²=1.

How do you know if an ellipse is vertical or horizontal?

Whichever denominator is larger determines which variable is a (because a is always bigger since it is the major axis.) If the larger number is under the x, then the ellipse is horizontal. If it is under the y then it is vertical.

Are all ellipses circles?

All ellipses are circles.

What are directrices in geometry?

Two parallel lines on the outside of an ellipse perpendicular to the major axis. Directrices can be used to define an ellipse.

What's the eccentricity of an ellipse?

The eccentricity of an ellipse refers to how flat or round the shape of the ellipse is. The more flattened the ellipse is, the greater the value of its eccentricity. The more circular, the smaller the value or closer to zero is the eccentricity. The eccentricity ranges between one and zero.

What is the purpose of the directrix?

A line used to help define a shape. Example: a parabola can be defined as a curve where any point is at an equal distance from the directrix (a line) and the focus (a point).
