LRECL specifies the length, in bytes, of each record in the data set. If the records are of variable length or undefined length, the maximum record length must be specified.

What is record length?

With a given sampling frequency, the number of samples that is taken determines the duration of the measurement. This number of samples is called record length. The result is that more of the measured signal is visible. ...

What is block size in JCL?

Block size (BLKSIZE) specifies the maximum length, in bytes, of a physical block of storage in MVS. If BLKSIZE(0) is specified, the system will determine the optimal block size based on the maximum record length (LRECL) and the physical characteristics of the disk, or approximately half of a physical track.

How do you increase the record length in JCL?

Assuming the requirement is to amend an existing dataset then the simplest way is to change the program that creates the dataset to declare the dataset as being 90 bytes record length, change the record declarations to the new length with the new/extended fields, assign data to those fields, change the record length in ...

What is the maximum record length in mainframe?

The maximum logical record length (LRECL) of a file on z/OS is 32,760 bytes. This maximum is set by IBM and applies to all files, including an extract file.

JCL Series Part 9 || DCB PARAMETER || DATA CONTROL BLOCK IN DD STATEMENT

18 related questions found

What is the record length in JCL?

LRECL specifies the length, in bytes, of each record in the data set. If the records are of variable length or undefined length, the maximum record length must be specified. For input, the field has no effect for undefined-length (format-U) records.

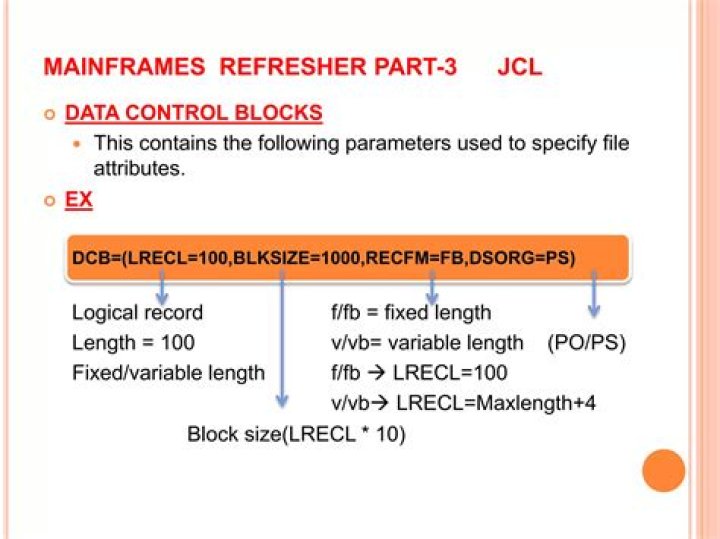

What is DCB parameter in JCL?

DCB. The Data Control Block (DCB) parameter details the physical characteristics of a dataset. This parameter is required for datasets that are newly created in the job step. LRECL is the length of each record held within the dataset. RECFM is the record format of the dataset.

What is PARM parameter in JCL?

PARM parameter is an optional keyword parameter in JCL. PARM parameter is a way to pass a data from JCL to the program but the maximum amount of data which we can send to the program using the PARM Parameter is 100 character.

What is swap mainframe?

Swapping is the process of transferring all of the pages of an address space between central storage and auxiliary storage. A swapped-in address space is active, having pages in central storage frames and pages in auxiliary storage slots.

How many blocks are in a track?

Using the following formula, you can calculate that each track can contain 26 blocks, or 1300 records, and a total of 155 tracks is required for the dictionary.

How does Cobol calculate record length?

To find the record length, look at the record layout described by the FD entry in the File Section of the COBOL program that uses the data file. The record length is the sum of all the lengths of all the elementary data items which make up the FD group item.

What is Recfm?

RECFM=U usually means that the file format is unknown or undefined. However, I have seen files labeled as RECFM=U which are very similar to RECFM=V files - the only difference being that they have a 2 byte descriptor length instead of a 4 byte descriptor length.

What is the default value of the Recfm?

Its meaning depends on the record format in effect (RECFM). The default is 256. The maximum length is 1G. If RECFM=F, the value for the LRECL= option determines the length of each output record.

What is record format in mainframe?

RECFM specifies the characteristics of the records in the data set as fixed-length (F), variable-length (V), ASCII variable-length (D), or undefined-length (U). Blocked records are specified as FB, VB, or DB. Spanned records are specified as VS, VBS, DS, or DBS.

What is Steplib and Joblib in JCL?

JOBLIB and STEPLIB in JCL both are used to specify the load libraries so that that the programs that are being used in that JCL/JOB are searched in these libraries. ... If it does not find it in there, then it searches in the SYSTEM LOAD LIBRARIES. So STEPLIB overrides the JOBLIB.

Why do we use parm in JCL?

The PARM parameter is used to pass the input data from job step to program. ... If JCL needs to pass more than one sub parameter, those should be separated by comma (,) which are enclosed in parentheses/quotes. PARM parameter can pass maximum 100 characters.

What is Ssrange and Nossrange in COBOL?

SSRANGE is a compiler option that handles the array overflow. SSRANGE also needs to be specified in COBOL programing language. These help in finding the subscript out of range. NOSSRANGE is used for performance-sensitive applications.

What is DCB mainframe?

In IBM mainframe operating systems, such as OS/360, MVS, z/OS, a Data Control Block (DCB) is a description of a dataset in a program. A DCB is coded in Assembler programs using the DCB macro instruction (which expands into a large number of "define constant" instructions).

What is Region parameter in JCL?

JCL REGION parameter is an optional keyword Parameter and you can define REGION parameter at either JOB Level or STEP Level or at both the places. If you define JCL REGION parameter at the job level, then it is the amount of virtual storage a job requires for execution.

What is dataset in Cobol?

A data set definition is a container for information about a data set on the z/OS® system. All data sets referenced by a build process must have a corresponding data set definition.

What is the maximum amount of characters allowed for the name of a JCL statement?

The maximum length of any JCL statement is limited to 8194 characters.

What is logical record length?

The logical record length is a 3-digit value that is left-padded with zeros. If the variable is VDEFINEd in character format, it should be defined with a length of 5. The returned value is left padded with zeros.

What should be the record length for a variable length file in JCL?

A variable-length logical record consists of a record descriptor word (RDW) followed by the data. The record descriptor word is a 4-byte field describing the record. The first 2 bytes contain the length of the logical record (including the 4-byte RDW). The length can be from 4 to 32,760 bytes.
