The basic and main difference between shaper and planer is that in shaper machine work piece is fixed at the table and tool is in reciprocating motion which rub the work piece and cut unwanted metal. ... But in planer machine tool is act like as stationary body and work piece move over it.

What is the difference between planer and shaper Mcq?

Explanation: Planer is used for the purpose of machining too large and heavy jobs. ... Explanation: Shaper is used for the purpose of machining smaller jobs. It is mainly used for producing flat and plan surfaces. 3.

What is the use of shaper?

A shaper is a type of machine tool that uses linear relative motion between the workpiece and a single-point cutting tool to machine a linear toolpath. Its cut is analogous to that of a lathe, except that it is (archetypally) linear instead of helical.

Which of the following is common between planer and shaper?

One is that shaper is a light duty machine, while planer is a heavy duty machine. ... Comparatively, there are also some similarities that a planer and shaper has: both their length of stroke can be adjusted, and they can be operated by hydraulic drive or hydraulic arrangement.

What is a shaper machine?

The shaper machine is a reciprocating type of machine basically used for producing the horizontal, vertical or flat surfaces. The shaper holds the single point cutting tool in ram and workpiece is fixed in the table. ... During the return stroke, No metal is cutting.

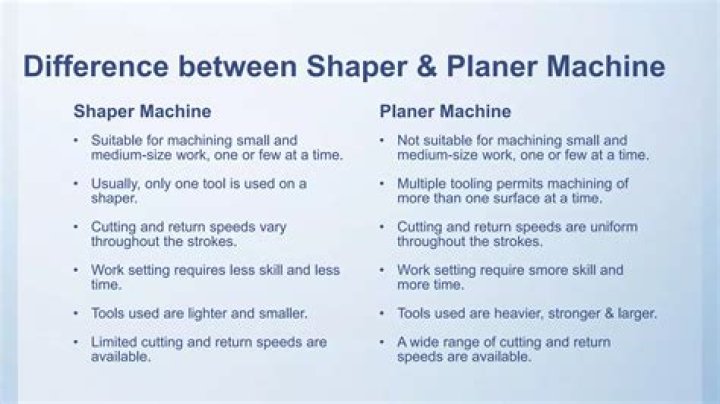

Difference between shaper and planer Machine | Shaper Machine Vs Planer Machine

21 related questions found

What does a planer do?

A planer is used to shave wood from the surface of boards. Imagine scraping a knife across the top of a block of butter. That's pretty much the action with a planer – though you might need a bit more muscle power! They're used to make a rough surface flat and smooth, or to reduce its thickness.

What are the limitations of shaper machine?

Disadvantages of Shaper Machine:

• The cutting speed is low in the case of shaper.
• Only one cutting tool is used in this machine and there is no space for the installation of another tool.
• It can shape change only one workpiece at a time.
• Applicable only for those workpieces(stock) whose length is more than 25cms.

Can a shaper use router bits?

Router bits can be used with most shapers. ... Shaper cutters can also cut much wider profiles such as those in raised panels and crown moldings . Reverse - If you ever had issues with your wood splitting out because of grain direction, a shaper has made your work easier by being able to run in reverse.

Why is shaper slow?

A, shaper by nature is a slow machine, because of its straight line,forward and return(idle) stroke. The single point tool requires several strokes to complete a work. ... owing to these reasons the shaper does not find ready adaptability for assembly and production line.

What is shaping in manufacturing?

Shaping is a separate manufacturing process that, like planing, is designed to remove material from a workpiece. ... In shaping, the cutting tool rotates while the workpiece remains stationary. Shaping is used to change the size and shape of a workpiece. Like planing, it will remove material from the workpiece.

Which machine job reciprocates?

Shaper is a reciprocating type of machine tool in which the ram moves the cutting tool backwards and forwards in a straight line. The work-piece is rigidly held in a vice or clamped directly on the table. It is intended primarily to produce flat surfaces.

Which of the following type of planer has to work table?

Double Housing Planer Double housing planer is the major type of planer. It consists of mostly a massive bed on which work table respond, and two vertical columns or housing, one on every side of bed.

How the MRR can be changed in a shaper?

The shaper machine has an idle stroke during its return motion. This project will uses the idle stroke as cutting stroke and hence increase the production rate. This can be achieved by addition of clapper box with a tool such that the arrangement on tool holder has one tool clamped on the clapper box individually.

What are the classification of shaping?

Various types of shaping machines are classified into four such as motion type (driving mechanism), ram travel, table design, and the type of cutting stroke: Types of shaper machine base on driving mechanism: Crank type e.g. quick return motion mechanism. Geared shaper type.

Which movement of RAM in shaper machine is called stroke?

Explanation: Back and forth movement of ram is called stroke, but only in forward stroke useful work is done.

Can a shaper replace a router table?

A shaper typically has a much larger motor and spindle. It does the same thing but can take larger cuts — both in depth and height — in one pass. It also requires cutters that are, by and large, much more expensive than router bits. ... There's very little a shaper can do that you can't duplicate with a router table.

What is a Delta shaper?

DELTA^® Industrial shapers feature a spindle, housing, motor, raising and lowering mechanism that is a single self-contained unit, securely assembled to the underside of the table for absolute 90° spindle-to-table alignment: ... spindle, 3" travel; 5-1/4" capacity under nut.

Can you use a shaper as a jointer?

A shaper is basically a vertical jointer. The difference is the split fence on most shapers is not nearly as accurate as the tables on a jointer. You can get good results by making a straight fence out of MDF and adding a strip of plastic laminate to the outfeed side of the fence for your offset.

What is the advantage of a shaper machine?

Advantages of Shaper Machine:

The single point tool used is inexpensive or we can say low tooling cost. The cutting stroke having a definite stopping point. The work can be held easily in the shaper machine. The set up is very quick and easy and also can be readily changed from one job to another job.

What is the principle of shaper machine?

Working Principle of the Shaper Machine

In a standard shaper, cutting takes place during the forward stroke of the ram and the backward stroke remains idle. The forward and backward motion is obtained by “Quick Return Mechanism”. The depth of the cut is adjusted by moving the tool downwards towards the work piece.

How does a planer machine work?

The working principle of the planer machine is the same as the shaper machine which is a Quick return motion mechanism. While the workpiece moving forward the forward strokes complete and while it moving back the return stroke complete. In a forward stroke, the material is cut and in backward no material is cut.

When would you use a planer?

Woodworking jointers and planers are used to mill wood so they can be used to build furniture and other projects to correct dimensions. If your workshop doesn't have a jointer to square up an edge or your wood piece is too large to fit through, you can use your planer to flatten both pieces of wood.

Does a planer make wood smooth?

Smooth rough-cut wood stock with a planer. The planer is a tool for woodworkers who require large quantities of planed stock and who elect to buy it rough cut. ... It, too, cuts with a cutterhead, but the planer smooths the face of much wider stock.

Is buying a planer worth it?

A thickness planer serves three unique purposes that other tools do not: 1) It makes the second face of a board parallel to the other face; 2) It smooths rough stock; and 3) It reduces stock down to the exact thickness you need. ... If you really want to get into woodworking, a thickness planer is worth the cost.

Which operation can be performed in shaper?

The various operations performed on Shaper machine are: Horizontal cutting. Cutting vertical and Angular surfaces. Irregular cutting.
