Answer: Symmetrical faults are those faults which involve with all the three phase. it simply means that symmetrical faults affect all the three phases. On the other side, unsymmetrical faults are those faults in which either one or two phase involve.

What are symmetrical and unsymmetrical faults give examples?

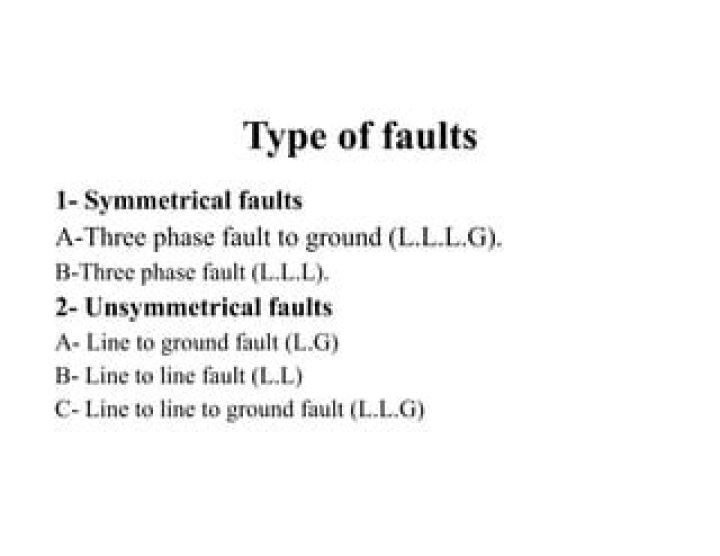

A double line-to-ground fault occurs when two conductors fall on the ground or come in contact with the neutral conductor. LG, LL, and LLG are unsymmetrical fault while LLL and LLLG are the symmetrical faults.

What is the difference between balanced and unbalanced fault?

Balanced audio uses three conductors to carry the audio signal. Two of the conductors carry negative and positive signals (audio is an AC signal), and the third is used for grounding. With an unbalanced signal, there are only two conductors.

Which faults are symmetrical faults?

Symmetrical Fault types:

Three-phase-to-ground fault (LLLG)– Triple Line-to-ground fault (LLLG)- A triple line-to-ground fault occurs when three conductors fall on the ground or come in contact with the neutral conductor. It is a symmetrical fault.

What is an unsymmetrical fault?

An unsymmetrical or asymmetrical fault is defined as a fault that affects one or two phases of a three-phase system in contrast with the previously studied balanced or symmetrical faults which equally affect each of the three phases.

Symmetrical and Unsymmetrical Fault in Power System by TheNextLevel Learner

25 related questions found

What is symmetrical and unsymmetrical alkene?

The key difference between symmetrical and unsymmetrical alkenes is that symmetrical alkenes have doubly bonded carbon atoms bearing the same ligands, whereas unsymmetrical alkenes have doubly bonded carbon atoms bearing different ligands. ... Often, we call them olefins.

What is symmetrical system?

Symmetrical Components

P.S.R. Murty, in Power Systems Analysis (Second Edition), 2017. An unbalanced system of n phasors can be resolved into n systems of balanced phasors. These subsystems of balanced phasors are called symmetrical components.

What is Llg fault?

Double Line to Ground Fault (LLG):

Figure 11.9 shows a Double Line to Ground Fault at F in a power system. The fault may in general have an impedance Z^f as shown. The current and voltage (to ground) conditions at the fault are expressed as. The symmetrical components of voltages are given by. from which it follows that.

Which type of unsymmetrical fault is most severe?

The results obtained show that symmetrical three phase fault is the most severe kind at the transmission lines, while for faults occurring very close to the generating station or synchronous generator, single line to ground fault is the most severe.

Which fault gives rise to symmetrical faults?

Railways Question

LLLG fault is a symmetrical fault. LG, LL, LLG faults are asymmetrical faults. So, three-phase faults give symmetrical fault currents.

Is a symmetrical fault?

Symmetrical Fault :

In symmetrical faults, all phases are shorted to each other or to earth (L-L-L)or(L-L-L-G). The nature of this type of fault is balanced. In this type of fault,fault currents in all phases are symmetrical i.e. their magnitudes are equal and they are equally displaced by angle 120^o as shown in figure.

What is symmetrical fault current?

In symmetrical fault, fault currents in phases are symmetrical in the sense that their magnitudes are equal and they are equally displaced by an angle of 120°. Thus, a symmetrical fault may be assumed as a normal case but with high value of current in phases.

Why symmetrical components are used in fault analysis?

The symmetrical components are used in the fault analysis because. the number of equations becomes smaller. the sequence networks do not have mutual couplings. the results are required in terms of symmetrical components.

What is the definition of unsymmetrical?

Definitions of unsymmetrical. adjective. lacking symmetry. synonyms: unsymmetric asymmetric, asymmetrical. characterized by asymmetry in the spatial arrangement or placement of parts or components.

What is symmetrical and asymmetrical?

If you know that symmetrical means that both sides of something are identical, then it should be easy to learn that asymmetrical means the opposite: the two sides are different in some way. Asymmetrical things are irregular and crooked, and don't match up perfectly when folded in half.

What is symmetrical fault and unsymmetrical fault?

A symmetrical fault is a fault where all phases are affected so that the system remains balanced. A three-phase fault is a symmetrical fault. The other three fault types (line to ground, line to line, and two- line to ground) are called unsymmetrical or asymmetrical faults.

What are the causes of unsymmetrical fault?

The unsymmetrical fault occurs in a system due to presence of an open circuit or short circuit of transmission or distribution line. It can occur either by natural disturbances or by manual errors. The natural disturbances are heavy wind speed, ice loading on the lines, lightening strokes and other natural disasters.

Why do we prefer to analyze unsymmetrical faults by symmetrical components method?

Why do we prefer to analyze unsymmetrical faults by symmetrical components method? ... Unsymmetrical faults are more common. Approximately 70% of the faults in power systems are single line-to ground faults. While applying symmetrical component method to fault analysis, the load currents are ignored.

Which of the following is unsymmetrical fault?

They can be analyzed by using the symmetrical components. The standard types of unsymmetrical faults considered for analysis include the following (in the order of their severity): ➢ Line–to–Ground (L-G) Fault ➢ Line–to–Line (L-L) Fault ➢ Double Line–to–Ground (L-L-G)Fault and ➢ Three-Phase–to–Ground (LLL-G) Fault.

What is their importance in unsymmetrical fault analysis?

The calculations of unsymmetrical faults are important applications of symmetrical components. ... Approximately 70% of the faults in power systems are single line-to ground faults. While applying symmetrical component method to fault analysis, the load currents are ignored.

How do you analyze an unsymmetrical fault?

In the Analysis of Unsymmetrical Faults, the following assumptions will be made :

1. The generated e.m.f. system is of positive sequence only.
2. No current flows in the network other than due to fault e. load currents are neglected.
3. The impedance of the fault is zero.
4. Phase R shall be taken as the reference phase.

Where does a symmetrical fault occur?

❖ The symmetrical fault occurs when all the three conductors of a 3-Ø line are brought together simultaneously into a short circuit condition as shown in the Fig.

What are symmetrical components in three phase system?

Kirtley Jr. The three component variables V 1, V 2, V 0 are called, respectively, positive sequence, negative sequence and zero sequence. They are called symmetrical components because, taken separately, they transform into symmetrical sets of voltages.

What are symmetrical components and explain?

In simple terms, symmetrical component is a mathematical tool that simplifies the analysis of power system during unbalanced system conditions. It does so by decoupling the one 3-phase system into three 1-phase systems. It is easy and less confusing to calculate currents in a 1-phase network than in a 3-phase network.

What is the unsymmetrical alkene?

An unsymmetrical alkene is an alkene in whose molecule the pair of ligands on one doubly bonded carbon is different from that on the other. ... In 1, one doubly bonded carbon bears two methyl groups and the other a methyl group and a hydrogen atom. Thus, 1 is an unsymmetrical alkene. eg.
