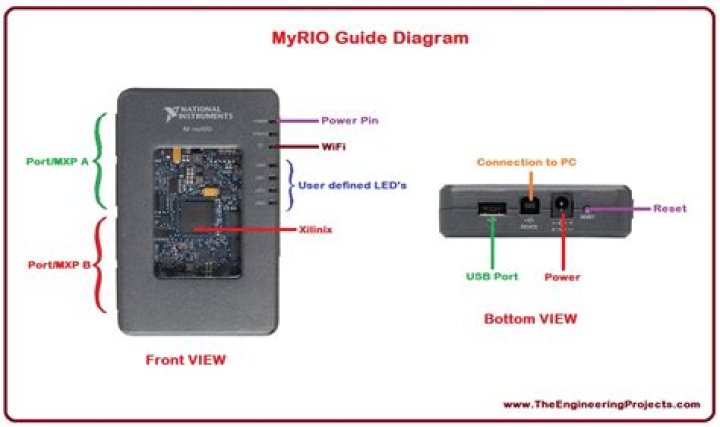

MyRIO is a real-time embedded evaluation board made by National Instruments. It is used to develop applications that utilize its onboard FPGA and microprocessor. It requires LabVIEW. It's geared towards students and basic applications.

What does myRIO mean?

What is RIO? RIO stands for reconfigurable I/O and describes a technology used in many NI hardware products. RIO products feature a processor and FPGA, both of which are fully programmable using NI LabVIEW software.

What is a myRIO microcontroller?

National Instrument's myRIO is a unique microcontroller that combines the flexibility of an ARM processor with the speed of a Field Programmable Gate Array (FPGA). The all-in-one package includes both analog and digital interfaces, with bipolar analog I/O, making it an ideal device for high-speed control.

What is FPGA in myRIO?

FPGA is an integrated circuit whose hardware structure can be changed according to the desired function. ... Graphical programming software called LabVIEW can be used for programming FPGA. In this study, a project designed on LabVIEW FPGA module has been tested on MyRIO which has a Xilinx FPGA board.

What is the use of accelerometer in NI myRIO?

Your accelerometer produces 3 signals: X-axis, Y-axis, and Z-axis acceleration data. These signals can be used to compute the roll and pitch of your myRIO board.

What is NI myRIO?

32 related questions found

Is myRIO an FPGA?

Overview. NI myRIO is an embedded hardware device designed specifically to help students design real, complex engineering systems more quickly and affordably than ever before. NI myRIO features a fully programmable dual-core ARM Cortex-A9 processor running a real-time OS as well as a customizable FPGA.

What is FPGA design?

Field Programmable Gate Arrays (FPGAs) are integrated circuits often sold off-the-shelf. ... FPGAs contain configurable logic blocks (CLBs) and a set of programmable interconnects that allow the designer to connect blocks and configure them to perform everything from simple logic gates to complex functions.

What is LabVIEW FPGA?

LabVIEW FPGA is a software add-on for LabVIEW that you can use to more efficiently and effectively design FPGA-based systems through a highly integrated development environment, IP libraries, a high-fidelity simulator, and debugging features.

How do I connect myRIO to WiFi?

Before you can configure the settings of the wireless network on the myRIO, you must connect the myRIO to the host computer over USB. To learn about configuring the wireless network on the myRIO, launch LabVIEW, click the Set Up and Explore link, and select Configure WiFi.

How many digital I O does myRIO have?

You can add up to 12 digital input channels. (myRIO Toolkit) If you use the myRIO high-throughput FPGA personality, this option is available only when you specify Digital input (1 sample) for I/O mode. (myRIO Toolkit) Specifies the sampling frequency of the input signal.

How do I connect myRIO to my computer?

Restart your computer when prompted. Connect power to the myRIO device, then connect the USB cable from the myRIO device to the computer. Allow 20 to 30 seconds for the computer to recognize the myRIO device. Launch the Getting Started Wizard and follow the prompts to install software on the device.

Is an Arduino an FPGA?

Arduino is a micro controller and will execute all your operations in a sequential fashion whereas an FPGA is a field programmable gate array which will execute all your operations in parallel fashion.

What is Xilinx FPGA?

An FPGA is an integrated circuit (IC) that can be programmed for different algorithms after fabrication. Modern FPGAs consist of up to two million logic cells that can be configured to implement a variety of software algorithms.

What are the advantages of FPGA?

FPGA advantages

• Long-term availability. ...
• Updating and adaptation at the customer. ...
• Very short time-to-market. ...
• Fast and efficient systems. ...
• Acceleration of software. ...
• Real-time applications. ...
• Massively parallel data processing.

What is VHDL code?

The VHSIC Hardware Description Language (VHDL) is a hardware description language (HDL) that can model the behavior and structure of digital systems at multiple levels of abstraction, ranging from the system level down to that of logic gates, for design entry, documentation, and verification purposes.

What type of device is FPGA?

Which type of device FPGA are? Explanation: Field-Programmable Gate Arrays (FPGAs) are reprogrammable silicon chips. In contrast to processors that you find in your PC, programming an FPGA rewires the chip itself to implement your functionality rather than run a software application. Thus, FPGAs are PLD devices.

How do I install myRIO?

To install the myRIO Toolkit using the installer from double-click the setup.exe file in the root directory of the myRIO Toolkit installer and follow the instructions on the screen to install this product.

Which palette is available in front panel?

The Controls palette contains the controls and indicators you use to create the front panel. You access the Controls palette from the front panel window by selecting View»Controls Palette or by right clicking on any empty space in the front panel window.

Is Arduino an IoT?

Arduino IoT Cloud is an application that helps makers build connected objects in a quick, easy and secure way. You can connect multiple devices to each other and allow them to exchange real-time data. You can also monitor them from anywhere using a simple user interface.

Is Arduino a firmware?

In case of Arduino boards is then the firmware the bootloader and the firmware in the USB chip. But the main application is for you to play and upload sketches which are not firmware.

What is Arduino vs Raspberry Pi?

The main difference between them is: Arduino is microcontroller board, while Raspberry Pi is a microprocessor based mini computer (SBC). The Microcontroller on the Arduino board contains the CPU, RAM and ROM. All the additional hardware on Arduino Board is for power supply, programming and IO Connectivity.

How do I learn LabVIEW?

How to Learn LabVIEW: Step-by-Step

1. Purchase and install the software. Before you begin, download the application development environment and set it up.
2. Watch tutorials. There are plenty of LabVIEW tutorials available online for you to watch. ...
3. Enroll in classes. ...
4. Read books. ...
5. Practice.

Why do we use LabVIEW?

LabVIEW can be used to perform a huge number of mathematical and logic functions, including, but certainly not limited to: basic arithmetic, if/then/elseif conditional statements, case statements, FFTs, filtering, PID control loops, etc. There are huge libraries of functions to pull from.
