A stepper motor is a brushless, synchronous electric motor that converts digital pulses into mechanical shaft rotation. Its normal shaft motion consists of discrete angular movements of essentially uniform magnitude when driven from sequentially switched DC power supply.

What is stepper motor used for?

The stepper motor is used for precise positioning with a motor, such as hard disk drives, robotics, antennas, telescopes, and some toys. Stepper motors cannot run at high speeds, but have a high holding torque.

What is stepper motor and its working?

A stepper motor is an electromechanical device it converts electrical power into mechanical power. ... Stepper motors are similar to switched reluctance motors. The stepper motor uses the theory of operation for magnets to make the motor shaft turn a precise distance when a pulse of electricity is provided.

Why it is called stepper motor?

Stepper motors are so named because each pulse of electricity turns the motor one step. Stepper motors are controlled by a driver, which sends the pulses into the motor causing it to turn.

Is a stepper motor AC or DC?

Stepper motors are DC motors that move in discrete steps. They have multiple coils that are organized in groups called "phases". By energizing each phase in sequence, the motor will rotate, one step at a time. With a computer controlled stepping you can achieve very precise positioning and/or speed control.

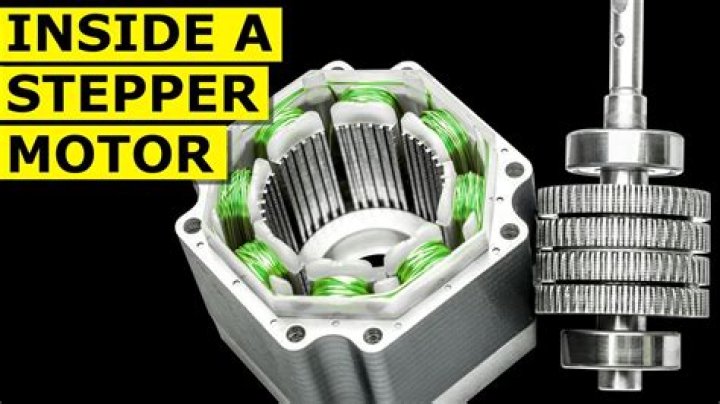

What is a Stepper Motor and How it Works?

41 related questions found

What is stepper motor PPT?

1. PrinciPle of stePPer motor A stepper motor is an electromechanical device which converts electrical pulses into discrete mechanical movements. The shaft or spindle of a stepper motor rotates indiscrete step increments when electrical command pulses are applied to it in the proper sequence.

What voltage is a stepper motor?

Stepper motors have a rated voltage and current. A typical stepper motor like our NEMA 17 might have a rated voltage of 2.8 Volts and a maximum current of 1.68 Amps. This basically means if you hook it up to 2.8 Volts it will draw 1.68 Amps.

Are stepper motors High torque?

Although stepper motors aren't notable for their ability to produce high torque at high speed, it is possible, in some applications, to achieve both. The motor's pull-out torque curve shows the maximum torque that can be produced over the range of operating speeds.

How many steps are in a stepper motor?

A stepper mottor is a brushless, synchronous electric motor that converts digital pulses into mechanical shaft rotation. Every revolution of the stepper motor is divided into a discrete number of steps, in many cases 200 steps, and the motor must be sent a separate pulse for each step.

What is the difference between stepper motor and DC motor?

Some DC motors also generate high torques at low speeds, but are more suited towards continuous uses, as their torque is constant over their speed range. The main difference is that, while stepper motors can push harder from rest, DC motors tend to have more sustained output.

What is step angle?

The step angle is the basis of the movement of a stepping motor. The step angle depends on the total number of magnetic poles of the motor. The step angle is determined by the formula: Step angle = 360 degrees / N where N = (NPH x PH) NPH: Number of magnetic poles for each phase.

What is stepper motor in mechatronics?

A stepper motor (or step motor) is a brushless DC electric motor that can divide a full rotation into a large number of steps. ... Stepper motors convert digital information into proportional mechanical movement. They are digital and different from DC motors that are controlled by changing the current across them.

What is stepper motor torque?

If external force is applied to a stepping motor when it is stopped but energized, the attractive force generated between the rotor and stator works to maintain the stop position of the motor. This torque of withstanding the external force is called the holding torque.

What is stepper motor Slideshare?

Introduction  A stepper motor, also known as step motor or stepping motor, is a brushless DC electric motor that divides a full rotation into a number of equal steps.  A standard motor will have a step angle of 1.8 degrees with 200 steps per revolution.

What is the difference between a servo and a stepper motor?

The main difference between these motors comes from the overall pole count. Stepper motors have a high pole count, usually between 50 and 100. Servo motors have a low pole count – between 4 and 12. ... Servo motors require an encoder to adjust pulses for position control.

Can a stepper motor run continuously?

Stepper motors fall somewhere in between a regular DC motor and a servo motor. They have the advantage that they can be positioned accurately, moved forward or backwards one 'step' at a time, but they can also rotate continuously.

What is largest size stepper motor?

NEMA 42 stepper motor is the largest NEMA size in the market.

Are stepper motors accurate?

Stepper motors are often misconceived as the lesser of servo motors, but as a matter of fact, they are highly reliable just like servo motors. The motor operates by accurately synchronizing with the pulse signal output from the controller to the driver, achieving highly accurate positioning and speed control.

How many watts does a stepper motor use?

x. If you are actually using 2 phase steppers with a maximum of 4.5 A (the capability of the controller), then you might expect 4.5^2 * 0.6 = 12 W per phase. If you use x2 (400 step, which is half step) micro-stepping then with both phases on you'd get maximum dissipation of about 24 W.

Which stepper motor do I need?

The two most commonly used types of stepper motors are the permanent magnet and the hybrid types. Generally speaking, the hybrid stepper motor may be the better choice along with reducing cost, as it offers better performance with respect to step resolution, torque and speed.

What is hybrid stepper motor?

A "hybrid" type stepper motor combines the design and advantages from both permanent magnet type and variable reluctance type stepper motors. Therefore, a hybrid type stepper motor uses both the permanent magnet rotor as well as a toothed rotor and stator in their design.

What is permanent magnet stepper motor?

The Permanent Magnet Stepper Motor has a stator construction similar to that of the single stack variable reluctance motor. The rotor consists of permanent magnet poles of high retentivity steel and is cylindrical in shape. ... The rotor poles align with the stator teeth depending on the excitation of the winding.

How do you calculate one rotation of rotor on a stepper motor?

Standard hybrid stepping motors have 200 rotor teeth, or 200 full steps per revolution of the motor shaft. Dividing the 200 steps into the 360° of rotation equals a 1.8° full step angle. Normally, full step mode is achieved by energizing both windings while reversing the current alternately.

What is a 12V stepper motor?

The 12V, 1.7A, 416 oz-in Geared Bipolar Stepper Motor has an integrated Planetary gearbox with a 26 103/121 :1 ratio. It comes with the rear shaft exposed, so you can mount an encoder or shaft coupler. At 1.7 Amps (maximum current), this stepper motor can produce a maximum torque of 77 kg-cm.
