Protection circuits, like reverse polarity protection, short-circuit protection and over/under voltage protection, are used to protect any electronic appliance or circuit from any sudden mis-happening.

What is the need for overvoltage protection?

Over-voltage protection is necessary to prevent damage as a result of electrical transients. It is a power supply feature which shuts down the supply or clamps the output when the voltage exceeds a preset level. Most power supplies use an over-voltage protection circuit to prevent damage to the electronic components.

Which devices are used for overvoltage protection?

Overvoltage protection devices

• Arcing horns.
• Avalanche diode.
• Gas-filled tube.
• Lightning rod.
• Metal-oxide varistor.
• SiBar Thyristor.
• Spark gap.
• Transient-voltage-suppression diode.

What is the need for over voltage and under voltage protection?

Over voltages are the voltages that exceed the normal or rated values which cause insulation damage to electrical appliances leading to short circuits. Similarly, under-voltage causes overloading of the equipment leading to lamp flickers and inefficient performance of the equipment.

What does overvoltage protection mean?

Over voltage protection is a power supply feature which shuts down the supply, or clamps the output, when the voltage exceeds a preset level. Most power supplies use an over-voltage protection circuit to prevent damage to the electronic components.

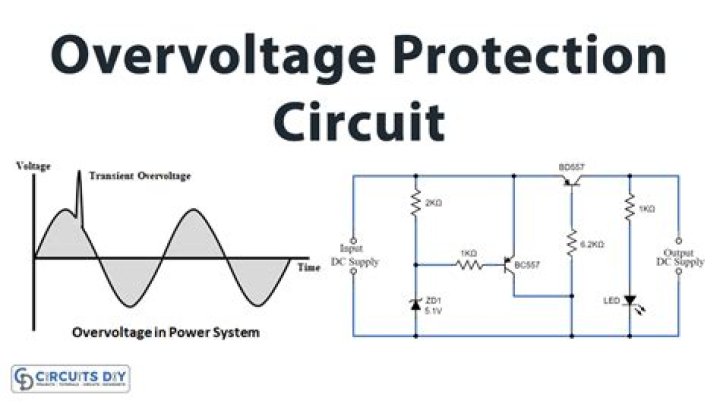

5V Overvoltage protection circuit

26 related questions found

Can overvoltage damage electronics?

Severe transient over voltages can damage components, circuit boards and can even burn or destroy the equipment as well as producing the start of a fire. They mainly affect electronic, computer and telecommunications systems.

How do I protect my appliances from high voltage?

5 Ways to Protect Your House and Appliances from a Power Surge

1. Install a Whole-House Surge Protector. ...
2. Have Added Protection for Specific Devices. ...
3. Upgrade Your AC Unit. ...
4. Unplug Devices During a Storm. ...
5. Inspect Your Wiring.

What device is commonly used to protect equipment from over and under voltage problems?

To protect motors and equipment, use a three-phase monitor relay, also known as a phase failure relay, as a cost-effective solution to prevent costly damage from undervoltage. A three-phase monitor relay, with undervoltage protection, can shutdown equipment when undervoltage occurs preventing damage.

What are the applications of over voltage relay?

Overvoltage relays in substations are used to protect power transformers from damage due to high voltage. In the Peruvian system, these relays are usually located only at power transformers or busbars.

Why is under voltage protection needed?

Undervoltage protection (ANSI 27) constantly monitors the system voltage. If the voltage level of an installation goes out of its acceptable limits, the information provided by undervoltage protection can be used to initiate appropriate action to restore good operating conditions in the installation.

How can overvoltage be prevented?

5 Ways You Can Prevent Over Voltage

1. Take note of your appliances' voltage requirements. ...
2. Use transformers properly. ...
3. Be careful when dealing with insulators. ...
4. Stop using appliances when there is a storm. ...
5. Consult with experts regularly.

What is the effect of overvoltage?

EFFECTS OF OVER VOLTAGES ON POWER SYSTEMS

damage to them when it frequently occurs. Over voltage caused by surges can result in spark over and flash over between phase and ground at the weakest point in the network, breakdown of gaseous/solid/ liquid insulation, failure of transformers and rotating machines.

How can overvoltage damage a computer or data?

WHEN POWER STOPS, EVERYTHING STOPS:

Overvoltages hit the most sensitive equipment of the system first. These are network interface units of servers, workstations and PC stations. When the data network is paralysed, the immediate result of the breakdown is already sever: there is no data flow in the company.

What are the methods used for over voltage protection of SCR?

The SCRs can be protected against the over currents using conventional over current protection devices like ordinary fuses (HRC fuse, rewirable fuse, semiconductor fuse, etc,), contractors, relays and circuit breakers.

How can we protect mosfet from overvoltage?

Select a zener diode (Z2) to limit the source-gate voltage (VSG) of the P-Channel MOSFET so that it remains below the device's maximum allowable value. It is common for P-Channel, power MOSFETs to have a VSG max value of 20V, so a 16V zener is placed from source to gate.

What are the types of overvoltages?

Over voltage stressing a power system can be classified into two main types: 1-External overvoltage: generated by atmospheric disturbances of these disturbances, lightning is the most common and the most severe. 2. Internal overvoltages: generated by changes in the operating conditions of the network.

How does an over voltage relay work?

An over-voltage relay operates when the current produced by a load, or device connected to the output of a circuit, exceeds a predetermined value. ... The relay is calibrated to operate at or over a preset voltage level. When the relay is switched on, one or multiple contacts trip, or open a circuit breaker.

What is meant by overvoltage?

1 : the excess potential required for the discharge of an ion at an electrode over and above the equilibrium potential of the electrode. 2 : voltage in excess of the normal operating voltage of a device or circuit.

How does over current protection work?

An overcurrent protection device protects the circuit by opening the device when the current reaches a value that will cause an excessive or dangerous temperature rise in conductors. Most overcurrent protection devices respond to both, short-circuit or ground-fault current values as well as overload conditions.

What are overload protection devices?

An overcurrent protection device (OCPD) is a piece of equipment used in electrical systems that are at risk of experiencing overcurrent due to overloads, short circuits, or ground faults. ... The most common of these protection devices are fuses, circuit breakers, and overcurrent relays.

What device protects a circuit from current overload?

Circuit breakers are devices that protect circuits from overload current conditions. They do the same job as fuses, but they are not destroyed when activated.

Does a surge protector protect against high voltage?

A surge protector guards against the damage that sudden power surges can cause. ... A surge protector contains metal oxide varistor, or MOV, which diverts any extra voltage to ensure devices receive a consistent power level.

Should my refrigerator be on a surge protector?

We do not recommend connecting a refrigerator or freezer to a surge protector. The compressor is sensitive to temperature and current overloads, and will shut itself down with a surge. ... A surge protector will override this system, and if there is a power surge, your refrigerator may not restart.

Can high voltage damage home appliances?

In most houses, fans and tubelights got damaged due to high voltage fluctuations. ... This was not the first time that the incident of short circuit resulting in damage to house hold equipments have happened. A few months back, a TV exploded in Rajajipuram as high voltage current went through it.

How overvoltage can be protected against lightning overvoltage?

The lightning arresters or surge diverters provide protection against such surges. A lightning arrester or a surge diverter is a protective device which conducts the high voltage surges on the power system to the ground.
