Thermodynamic diagrams are diagrams used to represent the thermodynamic states of a material (typically fluid) and the consequences of manipulating this material. For instance, a temperature–entropy diagram (T–s diagram) may be used to demonstrate the behavior of a fluid as it is changed by a compressor.

How are thermodynamic diagrams used to help forecasters?

Thermodynamic diagrams allow for analysis of temperature, moisture, pressure and wind in the atmosphere. ... By plotting the soundings of temperature and dew point temperature, one can investigate how adiabatic processes will determine instability and be used to help predict severe weather.

Which graph is mostly used in thermodynamics?

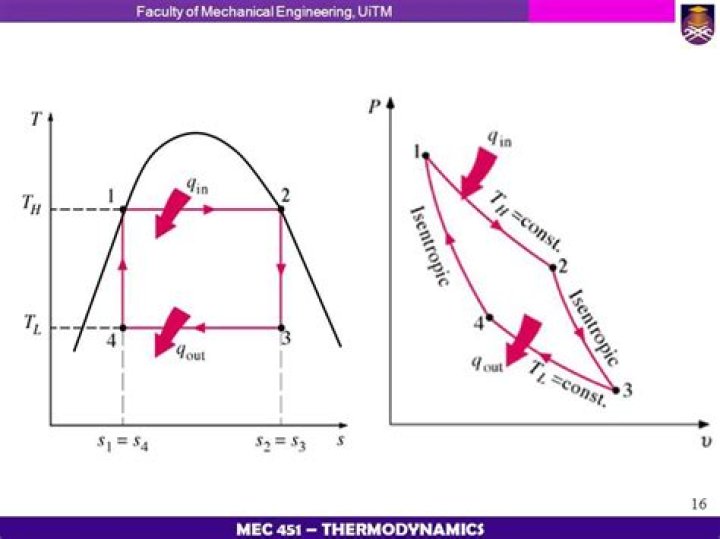

A temperature–entropy diagram, or T–s diagram, is a thermodynamic diagram used in thermodynamics to visualize changes to temperature and specific entropy during a thermodynamic process or cycle as the graph of a curve.

Why thermodynamic process is important?

The thermodynamic equilibrium of the system is necessary for the system to have well-defined values of macroscopic properties such as the temperature and the pressure of the system at each instant of the process. Therefore, quasi-static processes can be shown as well-defined paths in state space of the system.

What are stuve diagrams used for?

A Stüve diagram is one of four thermodynamic diagrams commonly used in weather analysis and forecasting. It was developed circa 1927 by the German meteorologist Georg Stüve (1888–1935) and quickly gained widespread acceptance in the United States to plot temperature and dew point data from radiosondes.

Thermodynamics and P-V Diagrams

45 related questions found

What are different types of thermodynamic diagrams?

Specific to weather services, there are mainly three different types of thermodynamic diagrams used:

• Skew-T log-P diagram.
• Tephigram.
• Emagram.

What does the tropopause do?

The tropopause minimum acts as a barrier^ between the troposphere and stratosphere because mixing and heat transport by convection can only occur when temperature decreases with height. The troposphere - with convection allowed - is turbulent and well mixed.

How is thermodynamics used in everyday life?

The human body obeys the laws of thermodynamics. ... As the sweat absorbs more and more heat, it evaporates from your body, becoming more disordered and transferring heat to the air, which heats up the air temperature of the room. Many sweating people in a crowded room, "closed system," will quickly heat things up.

Where do we use thermodynamics?

The second rule of thermodynamics applies to all refrigerators, deep freezers, industrial refrigeration systems, all forms of air-conditioning systems, heat pumps, and so on. Thermodynamic cycles govern the operation of all forms of air and gas compressors, blowers, and fans.

What are the 4 types of thermodynamic processes?

The four types of thermodynamic process are isobaric, isochoric, isothermal and adiabatic.

Which thermodynamic process is called an isentropic process?

In thermodynamics, an isentropic process is an idealized thermodynamic process that is both adiabatic and reversible. The work transfers of the system are frictionless, and there is no net transfer of heat or matter.

What are the different thermodynamic processes?

Types of Thermodynamic Processes

• Isobaric process.
• Isochoric process.
• Isothermal process.
• Adiabatic process.
• Quasi-static process.

What are thermodynamic properties?

Thermodynamic properties are defined as characteristic features of a system, capable of specifying the system's state. Some constants, such as the ideal gas constant, R, do not describe the state of a system, and so are not properties. ... "Specific" properties are expressed on a per mass basis.

What do you understand by thermodynamic equilibrium?

Thermodynamic equilibrium, condition or state of a thermodynamic system, the properties of which do not change with time and that can be changed to another condition only at the expense of effects on other systems.

What do you mean by thermodynamics process?

A thermodynamic process is defined as a change from one equilibrium macrostate to another macrostate. The initial and final states are the defining elements of the process. ... In this process energy may be transferred form or into the system and also work can be done by or on the system.

How does the second law of thermodynamics apply to organisms and biological systems?

The Second Law of Thermodynamics states that when energy is transferred, there will be less energy available at the end of the transfer process than at the beginning. Due to entropy, which is the measure of disorder in a closed system, all of the available energy will not be useful to the organism.

What is the application of thermodynamics in your own study?

Here are some more applications of thermodynamics: Sweating in a crowded room: In a crowded room, everybody (every person) starts sweating. The body starts cooling down by transferring the body heat to the sweat. Sweat evaporates adding heat to the room.

What is an example of a thermodynamic system?

A thermodynamic system includes anything whose thermodynamic properties are of interest. ... For example, if we are studying a car engine, the burning gasoline inside the cylinder of the engine is the thermodynamic system; the piston, exhaust system, radiator, and air outside form the surroundings of the system.

How do cars use thermodynamics?

When compression is complete, the spark plugs ignite the fuel, which then increases the temperature and pressure at a constant volume. Then the gas expands adiabatically, called the “power stroke,” resulting in a sudden drop in the pressure and temperature. This part of the reaction is what gives power to the car.

What is the difference between troposphere and tropopause?

The troposphere is the lowest and thickest layer of the atmosphere. ... The tropopause is the boundary layer between the troposphere and the stratosphere . The thickness of the troposphere depends upon a number of atmospheric variables at latitude .

What is the hPa of the troposphere?

The tropopause can be defined in terms of physical parameters. The tropopause can exist anywhere between about 70 hPa (∼18 km) and 400 hPa (∼6 km), and it is therefore not convenient to use a constant pressure level to describe the tropopause.

How important is the tropopause when considering climate on the earth?

The study of the troposphere is very important because we breathe the air in this layer of air. ... Tropospheric processes, such as the water or hydrologic cycle (the formation of clouds and rain) and the greenhouse effect, have a great influence on meteorology and the climate.

What is PH diagram thermodynamics?

A p-h diagram is a figure with a vertical axis of absolute pressure and a horizontal axis of specific enthalpy. It is an important diagram used frequently for a performance calculation of a refrigerating machine. A p-h diagram is made respectively for a specified refrigerant.

What is path in thermodynamics system?

Path refers to series of condition changes through which system pass through a method. Therefore, path refers to loci of different intermediate states approved through by a system during a method. Sequence refers to a usual sequence of process in such a fashion that the first and final states are equal.
