The bonding in graphite These "spare" electrons in each carbon atom become delocalised over the whole of the sheet of atoms in one layer. They are no longer associated directly with any particular atom or pair of atoms, but are free to wander throughout the whole sheet.

Where are delocalised electrons found in graphite?

Each carbon atom is bonded into its layer with three strong covalent bonds. This leaves each atom with a spare electron, which together form a delocalised 'sea' of electrons loosely bonding the layers together. These delocalised electrons can all move along together – making graphite a good electrical conductor.

Are there delocalised electrons in graphite?

Graphite has delocalised electrons, just like metals. These electrons are free to move between the layers in graphite, so graphite can conduct electricity. This makes graphite useful for electrodes in batteries and for electrolysis. The forces between the layers in graphite are weak.

Where are delocalized electrons located?

Delocalized electrons are contained within an orbital that extends over several adjacent atoms. Classically, delocalized electrons can be found in conjugated systems of double bonds and in aromatic and mesoionic systems.

Where does delocalized electrons come from?

Delocalised electrons are spread across more than one atom. Usually electrons in materials are bound to one atom, and atoms are held together by the interactions of the charges on different atoms. In some cases, electrons can be shared between atoms, and are then called delocalised.

GCSE Science Revision Chemistry "Graphite"

18 related questions found

Where do the delocalized electrons come from in a metal?

In metals, the electrons leave the outer shells of metal atoms , forming positive metal ions and a 'sea' of delocalised electrons. The structure of a solid metal consists of closely packed metal ions, arranged in a regular way to form a metallic lattice structure.

Which compound has delocalized electrons?

Delocalized electrons also exist in the structure of solid metals. Metallic structure consists of aligned positive ions (cations) in a "sea" of delocalized electrons. This means that the electrons are free to move throughout the structure, and gives rise to properties such as conductivity.

What are localized and delocalized electrons?

In general chemistry, localized electrons and delocalized electrons are terms that describe chemical structures of chemical compounds. Localized electrons are the bonding electrons in molecules while delocalized electrons are nonbonding electrons that occur as electron clouds above and below the molecule.

Why are electrons delocalized in metals?

Metals tend to have high melting points and boiling points suggesting strong bonds between the atoms. ... The electrons can move freely within these molecular orbitals, and so each electron becomes detached from its parent atom. The electrons are said to be delocalized.

What is electron delocalization in chemistry?

Electron delocalization (delocalization): Distribution of electron density beyond a fixed place such as a single atom, lone pair, or covalent bond via resonance or inductive effects. ... One of the five oxygen lone pairs and the carbonyl pi bond electrons of acetate ion is delocalized by resonance.

What is a property of graphite?

Properties of Graphite

Its properties are as follows: A greyish black, opaque substance. Lighter than diamond, smooth and slippery to touch. A good conductor of electricity( Due to the presence of free electrons) and good conductor of heat. A crystalline solid.

What holds the layers of graphite together?

Although graphite is composed of giant molecules, its atoms are arranged in layers that can slide past one another. Weak Van der Waals forces hold the layers together.

Where do you find graphite?

Graphite is most often found as flakes or crystalline layers in metamorphic rocks such as marble, schist's and gneisses. Graphite may also be found in organic-rich shale's and coal beds.

What is meant by delocalization?

to remove from the proper or usual locality. to free or remove from the restrictions of locality; free of localism, provincialism, or the like: to delocalize a person's accent. Also especially British, de·lo·cal·ise .

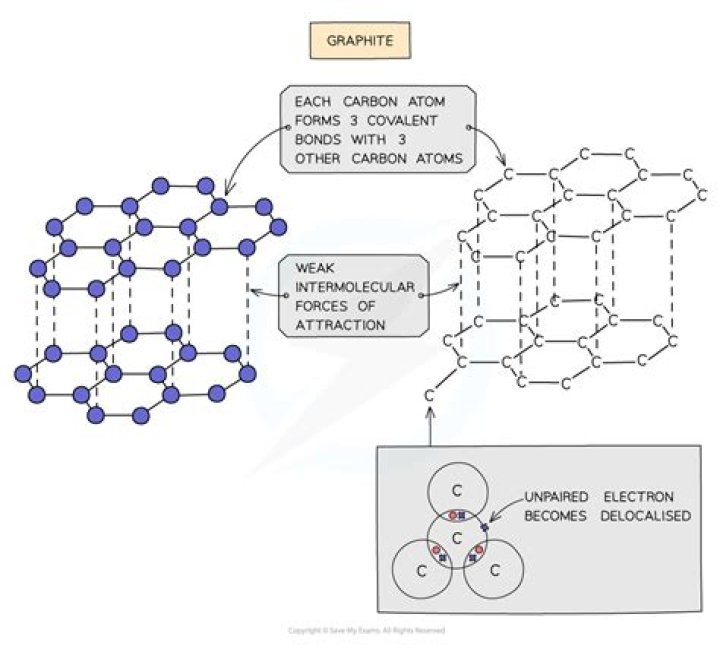

What is structure of graphite?

Graphite has a giant covalent structure in which: each carbon atom is joined to three other carbon atoms by covalent bonds. the carbon atoms form layers with a hexagonal arrangement of atoms. the layers have weak forces between them. each carbon atom has one non-bonded outer electron, which becomes delocalised.

How does graphene have Delocalised electrons?

Each carbon atom is bonded covalently (sp² hybridized) to three other carbon atoms in a hexagonal arrangement, leaving one free electron for each carbon atom. ... Within the graphene sheet, each hexagon has two pi-electrons, which are delocalized and enable efficient conduction of electricity.

Which electrons from the metal make up the delocalized electrons?

In metallic bonds, the valence electrons from the s and p orbitals of the interacting metal atoms delocalize. That is to say, instead of orbiting their respective metal atoms, they form a “sea” of electrons that surrounds the positively charged atomic nuclei of the interacting metal ions.

What is the sea of electrons?

(noun) The body of delocalized electrons that surrounds positive metal ions in metallic bonds.

Are all electrons Delocalised in metals?

Metals consist of giant structures of atoms arranged in a regular pattern. The electrons from the outer shells of the metal atoms are delocalised , and are free to move through the whole structure. This sharing of delocalised electrons results in strong metallic bonding .

How do you know if electrons are delocalized and localized?

If the lone pairs can participate in forming resonance contributors – they are delocalized, if the lone pairs cannot participate in resonance, they are localized.

Why is benzene delocalized?

The difference in benzene is that each carbon atom is joined to two other similar carbon atoms instead of just one. ... Because the electrons are no longer held between just two carbon atoms, but are spread over the whole ring, the electrons are said to be delocalised.

What is Delocalised and Localised?

The difference between localised and delocalised chemical bonds is that a localised chemical bond is a specific bond or a lone electron pair on a specific atom whereas a delocalised chemical bond is a specific bond that is not associated with a single atom or a covalent bond.

Do molecular compounds have delocalized electrons?

Thus, among all the molecules, only (2), (4) and (5) have delocalization electrons. On the other hand, molecule (1) does not have delocalization electron because pi electrons can not move towards sp3 carbon atom.

Which molecule will show delocalization?

One of the best known examples of a molecule in which bonding electrons are delocalized is benzene, shown below: Benzene consists of a ring of six carbons atom.

Does cyclohexane have delocalized electrons?

However, within Cyclohexene the delocalised pi- electrons are localised above and below the two specific Carbon atoms in the double bond, which means there is a region of high electron density within Cyclohexene. Cyclohexene is able to induce a dipole within a bromine molecule, allowing it to react.
