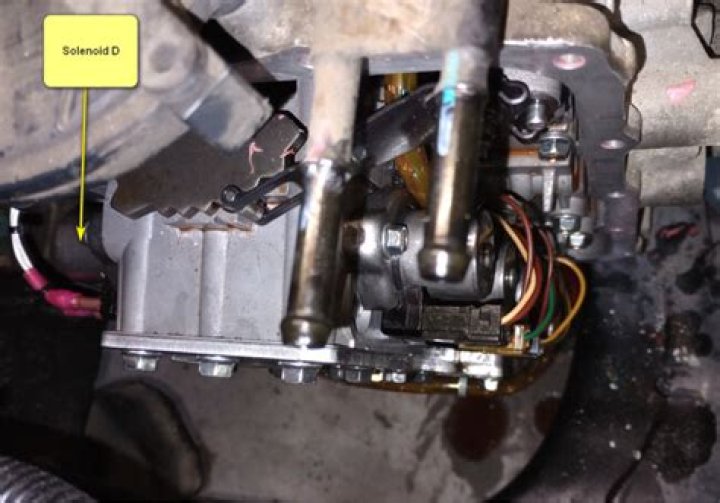

Where are Solenoids Located? The location of a solenoid can vary depending on your vehicle's make and model. Most cars have their solenoids mounted right on the starter motors, connected to other “starter” components like the starter gear and starter control terminal.

Where do I find the solenoid?

The starter and solenoid are located on the engine of your vehicle. In order to gain access to it, pull on the hood release located near the door on the driver's side of the vehicle. You will need to release the safety latch on the front of the vehicle in order to open the hood as well.

What are the symptoms of a bad solenoid?

If the starter engages but does not disengage when you let go of the key, the solenoid is likely bad and the starter may suffer significant damage as a result. 6. Sometimes your car starts, sometimes it doesn't. Intermittent operation can be a sign of a failing starter solenoid.

Where is the starter solenoid is located?

The starter solenoid is above the starter motor. The threaded terminal at left would connect to the battery through a heavy cable. At the right end of the solenoid coil, a linkage inside the housing would engage the pinion visible in the housing at the right side of the motor.

What does a solenoid look like?

A solenoid is a coil of wire in a corkscrew shape wrapped around a piston, often made of iron. ... Like all magnets, the magnetic field of an activated solenoid has positive and negative poles that will attract or repel material sensitive to magnets.

Solenoid Testing, Function and Replacement

33 related questions found

Is solenoid a temporary magnet?

A solenoid is used as a temporary magnet (an electromagnet).

When I turn the key it just clicks once?

Clicking when you turn the key is usually a sign that there is not enough power for the starter to fully turn. If your battery is new, then that is likely not the source of the problem. ... It may be possible that one of the components, perhaps a relay, switch, or even the starter, have failed.

What does a bad solenoid sound like?

One of the first and most common signs of a bad starter solenoid is hearing weird rapid clicking sounds. These sounds happen as the solenoid is not receiving the right amount of electrical current. One of the main reasons for this issue is loose connections and issues with the wiring.

Can you jumpstart a car with a bad solenoid?

Jump-starting a car with a solenoid, which is a switching mechanism that sends a 12-volt current to the starter, should be approached with caution. ... If the solenoid is bad, you won't hear any clicking. Bypassing the solenoid may enable you to jump-start your car, but precautions are necessary.

Can you start a car with a bad solenoid?

Check That Power is Getting to the Starter Solenoid

If there's an issue somewhere in the starting circuit, power won't reach the solenoid, resulting in a vehicle that doesn't crank or start.

How do I know if my starter fuse is blown?

Starter stays on after engine started. If the fuse is blown you can have a properly performing alternator and battery with no warning light on the dash (saying your battery is not charging). Vehicle does not start.

What are the symptoms of a faulty starter?

What are common bad starter symptoms?

• Something sounds off. One of the symptoms of a bad starter is a clicking noise when you turn the key or push the start button. ...
• You've got lights but no action. ...
• Your engine won't crank. ...
• Smoke is coming from your car. ...
• Oil has soaked the starter.

Is it the starter or the solenoid?

In most cases, the solenoid mounts to the transmission housing or bell housing on the driver's side of the vehicle. The starter is usually approximately 8 inches long and cylindrical in shape. It has the solenoid bolted to it. Two wires are bolted to the back of the solenoid.

How do you jump a solenoid?

How to jump a solenoid on a lawnmower, step by step

1. Step 1: Turn the ignition switch on.
2. Step 2: Locate the lawnmower solenoid.
3. Step 3: Find the relevant terminals.
4. Step 4: Clean the carbon and rust deposits from the terminal.
5. Step 5: Jump the solenoid.

Why does my car click but wont start?

If you hear a chatter or a quickly repeating clicking, you're most likely dealing with a battery or alternator issue. Because the starter is not getting enough electricity to stay powered and crank the engine, the system's repeated attempts make a clicking sound.

Where is the starter relay located?

The starter relay is most often located under the car hood, found in the power distribution center. It can also be located in the fuse block in the cabin.

How can the strength of a solenoid be increased?

Strength of the magnetic field in solenoid can be increased by: increasing the current in the coil. increasing the number of coils in the solenoid; and. using a soft iron core within the solenoid.

Which type of coil is a solenoid?

Which type of coil is a solenoid? Explanation: Solenoid is an electromagnetic coil. When an electric current is supplied to the solenoid, the magnetic field is induced in it and due to this the spool shifts to the selected position. Explanation: The iron is used in solenoids for increasing the magnetic field strength.

What is the current carrying?

A current carrying conductor placed in a magnetic field experiences a force. If the direction of the field and that of current are mutually perpendicular to each other, then the force acting on the conductor will be perpendicular to both and that can be determined using the Fleming's left-hand rule.
