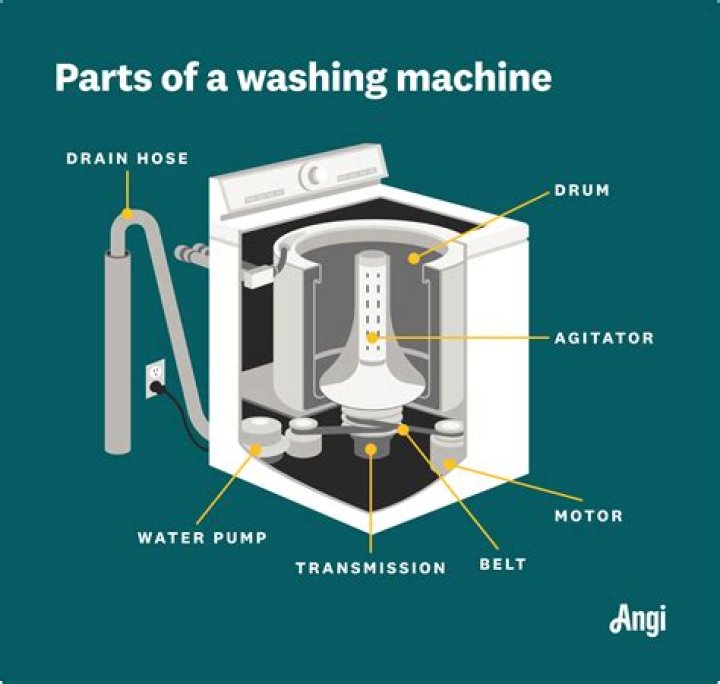

The inner tub is attached to the gearbox, which is attached to the black metal frame you see in the picture above. This frame holds the motor, gearbox and the concrete weight.

How do I know if my washing machine motor is bad?

Problems in Every Cycle. A washing machine that won't spin, agitate, or fully perform each cycle may have a faulty drive motor, which will need to be replaced. On GE washers, the automatic shift lever of the clutch may have failed, and will need to be repaired by a technician.

Is it easy to change a washing machine motor?

The easiest part of the replacement comes from simply taking the cable connector and plugging it into the motor. With that complete, you will find that you're finished and your washing machine is once more ready for duty. In no more than half an hour, you have saved yourself a ton of money.

Does a washing machine contain a motor?

Most of your washing machine processes are electrically controlled, such as the drum, valves, pump, motor and heating.

How much does it cost to replace a washing machine motor?

Washing Machine Motor Repair Cost

If a part of the motor, like the coupling, just needs to be fixed, the cost may be under $100. However, a washing machine motor replacement cost runs an average of $325 to $500.

How to run a washing machine (universal) motor off a 12v battery

24 related questions found

Why is my washing machine not spinning?

Drain pump blockage

One of the most common reasons why your washing machine has stopped spinning is when it can't drain properly due to a blocked drain pump. This can happen when something gets stuck in the outlet pipe, preventing the steady flow of water in and out of the machine.

What is washer motor?

Step 1: The Washing Machine Motor

It is a commutated series-wound motor where the stator's field coils are connected in series with the rotor windings through a commutator. It is often referred to as an AC series motor.

How many motors are in a washing machine?

A new generation of washing machines will be designed with brushless three-phase motors. The best candidates for this kind of design are three-phase AC induction motors and permanent magnet sinusoidal motors.

How many motors are there in a washing machine?

There are two pumps, one for the drum movement, and one for the drum rear wall.

Can a washing machine motor be repaired?

Unfortunately washing machine motors are not designed to be disassembled and repaired, so you have to replace the motor.

What can you do with a washing machine motor?

Some types of washing machine use large DC motors that can be removed along with their axles and bearings and reused as generators. You can use these motors to build a wind or water turbine, and turn the motion of a stream or the wind into electrical power.

How do I know if my washing machine motor is broken?

If the washer fills to the selected level and you hear the motor running but the washer is not agitating, set the dial on the spin cycle. If the washer drains the water and you hear the motor running (making noise but not spinning), it is likely you have a broken motor coupler.

Why is my washing machine motor not working?

In most cases, motor problems in your washing machine are going to be caused by worn carbon brushes. These are designed to come into contact with the moving part of the motor, which is called the armature, and pass power through it but they do wear down over time so obviously they will need to be replaced.

Is a washing machine motor AC or DC?

Step 1: The Washing Machine Motor

It is often referred to as an AC series motor. ... This type of electric motor can operate well on AC because the current in both the field coils and the armature (and the resultant magnetic fields) will alternate (reverse polarity) synchronously with the supply.

What holds a washer drum in place?

Unfortunately, shocks and dampeners can wear out. When they wear out, they need to be replaced. Dampeners, in particular, can cause a loose drum. They're usually what holds the washing machine's drum in place.

How do you fix a washer that won't spin?

1. Redistribute an off-balanced load of laundry. ...
2. Level an off-kilter washer. ...
3. Check the power source. ...
4. Stop using an extension cord. ...
5. Inspect the spin switch. ...
6. Stick to high efficiency detergent with a front-load washer. ...
7. Undo any kink in the hose. ...
8. Track down a blockage in the drainage system.

What would cause a front load washer not to spin?

Front-load washer tubs spin thanks to a drive belt that runs off of the motor. A loose, frayed, or torn belt could be why your washer won't spin. Overloading your washing machine can cause the belt to loosen or become worn out. Inspect the drive belt closely.

How long does a washing machine motor last?

Unless it's a high-end model and has a particular appeal to you, Consumer Reports doesn't recommend replacing any appliance that's more than eight years old. Replacing any top-loading washer made in 1999 or earlier is suggested by others.

Is it cheaper to repair or replace washing machine?

A relatively new washer may not break down regularly, hence it may be more affordable to repair it. Getting replacement parts for modern machines can be easier than finding components for older models. Washing machine repair is recommended when the repair cost is less than 50 percent of a new machine's price.
