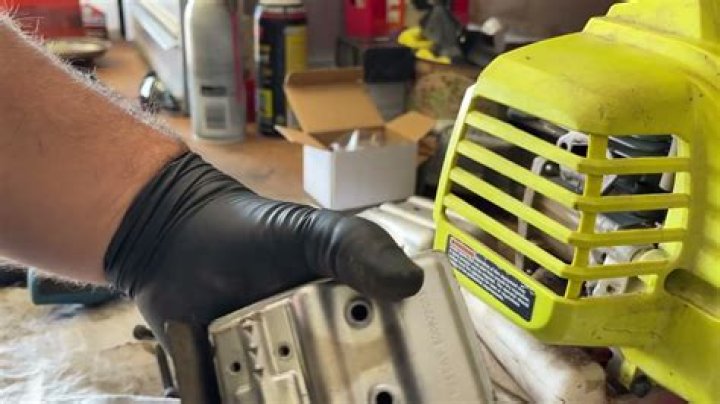

I have a Ryobi 780R. The spark arrestor is located on the backside of the muffler. Remove the air filer/muffler cover, remove the two bolt with a 5/16 socket or nutdriver. When you turn the muffler over, you will see the spark arrestor.

Where is the spark arrestor located?

The spark arrestor is in a different place on different models, but is part of the exhaust system, which means it will be near the spot where air leaves the motor. On most chainsaws, you will need to remove the slotted plastic muffler cover to access the spark arrestor.

What does a spark arrestor do on a weed eater?

Your stihl uses a screen type spark arrestor, it's a mesh screen that prevents large particles from leaving the exhaust system. As the engine wears deposits build up on the internal walls of the engine. When those deposits break free they exit through the exhaust system and present a potential fire hazard.

What happens if spark arrestor is clogged?

Sometimes the spark arrestor screen can become clogged up itself. Common symptoms include lack of power, especially under load; poor acceleration; engine won't come up to full RPM; and higher than normal "spit back" through the carburetor.

Should I remove spark arrestor?

You can safely remove the spark arrestor or even install an aftermarket exhaust system on many ATVs without having to make alterations to your jetting because they are normally set up to run a bit rich from the factory, but this is no general rule!

Symptoms & Repair Of A Clogged Spark Arrester On A STIHL Grass Weed Wacker

29 related questions found

Why is my weed eater spitting gas out exhaust?

The carburetor is not functioning properly and, at a minimum, will need to be spray cleaned and blown out with compressed air. You may possibly need to soak (in a bath cleaner) and recondition the carb with an OEM rebuild kit depending on the condition of it once you have disected it.

Can you clean a spark arrestor with carb cleaner?

Carb cleaner, brake cleaner, gas, lacquer thinner, mineral spirits any kind of solvent that will dissolve and wash away the gunk and use a brush too, let air dry and reinstall!

Will a spark arrestor keep an engine from starting?

Clogged spark arrestor – The spark arrestor is a thin metal mesh designed to prevent sparks emitted by the engine from exiting the muffler and potentially starting a fire. ... Dirty air filter – By restricting the air coming into the carburetor, a dirty air filter can prevent the engine from starting as well.

Why is fuel coming out of my carburetor?

One of the more common questions we get concerns either the overwhelming smell of gas coming from the carburetor or fuel leaking out of the bowl or overflow. Both conditions are typically caused by a stuck or worn float needle valve. ... Another common cause is the use of fuel containing any Ethanol.

Why is my Echo trimmer leaking oil?

Oil seals form a seal between the crankcase and the crankshaft on your Echo SRM-225 trimmer. They also protect the crankshaft bearings from dirt and debris. If you have noticed any leakage from the crankcase (past the seals or along the crankshaft), the oil seals are likely to blame, and they should be replaced.

Do spark arrestors take away power?

As a rule, spark arrestors don't have much effect on peak horsepower, but do lessen throttle response.

Does a spark arrestor reduce noise?

Yes, spark arrestor reduces noise in any equipment but the effect of sound that you can notice is negligible. ... However, in some cases, you may not notice any change because some spark arrestors can decrease only 1 dB or 2 dB sound range. Sparks are most common at welding and soldering the metals.

How often should a flame arrestor be cleaned?

Once you've broken it loose once it's really quick and easy to clean. The maintenance schedule says to clean it every 100 hours. From the Indmar manual: Your engine is equipped with a U.S. Coast Guard approved flame arrestor. Its purpose is to contain any backfire that may occur during operation of your engine.

Is a flame arrestor an air filter?

The K&N Flame Arrestor makes the best air-filtration technology available for marine engine use. Marine application owners can experience the increased horsepower and engine protection provided by K&N's oiled cotton gauze and epoxied screen filter element.

How do you clean a flame arrestor on a water heater?

To clean the bottom of the flame arrestor, turn the flame arrestor cleaning attachment over and insert it through the air intake opening at the base of the heater, and use a gentle sweeping motion to clean the entire base, see Figure 3. 5. Re-insert the air intake screen when finished.

How do I know if my carburetor float is stuck?

One of the signs that the carburetor float is sticking is when the engine will not idle. The float is not letting enough fuel into the reservoir, allowing for a constant idle of the engine. The carburetor float is stuck in the closed position, and only a small amount of fuel is seeping into the reservoir.
