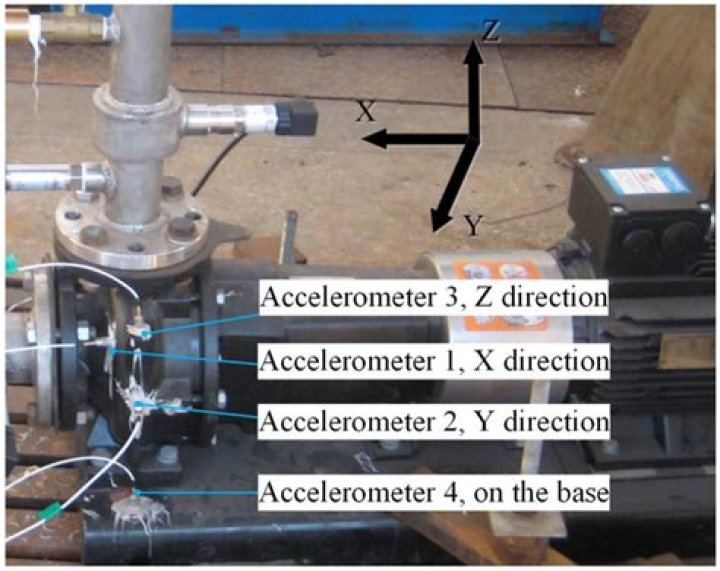

Accelerometers should be mounted onto a surface that is free from oil and grease as close as possible to the source of vibration. The surface should be smooth, unpainted, flat and larger than the base of the accelerometer itself.

How do you attach accelerometers?

Use an insulated cap screw to securely mount a ring-style accelerometer. Insert the cap screw into a through-hole in the accelerometer housing and screw it into a tapped hole on the mounting surface (see Figure 3A). The tapped hole should be deep enough so that the screw does not bottom out in the mounting structure.

Where is the accelerometer located on the aircraft?

Strap-Down INS. Ring Laser Gyros and accelerometers are attached rigidly, or “strapped down”, to the frame of the aircraft i.e. as the aircraft moves, so does the INS platform - exactly. Three gyroscopes sense the rate of roll, pitch, and yaw; and three accelerometers detect accelerations along each aircraft axis.

What are the common accelerometer mounting techniques?

Four main methods are used for attaching sensors to monitoring locations in predictive maintenance. They are stud mounted, adhesive mounted, magnetically mounted and the use of probe tips, or stingers. Each method affects the high frequency response of the accelerometer.

Are accelerometers affected by magnets?

No, accelerometers do not use any magnetic fields to make measurements, they measure the deflection of a mass, which is proportional to the acceleration received (ADXL335 datasheet).

How an accelerometer works!

38 related questions found

Do accelerometers work in space?

An accelerometer in the spacecraft, at least if it's at or close enough to the center of gravity of the spacecraft, will read exactly zero if the spacecraft is in free fall. I.e., not firing any thrusters. The accelerometer is useful during rocket firings to get a measure of the actual acceleration during the burn.

How do aircraft accelerometers work?

How do accelerometers work? An accelerometer usually uses a concentrated mass (seismic mass), which resists movement because of its inertia. The displacement of the seismic mass relative to its supporting frame or container is used as a measure of acceleration.

Are accelerometers accurate?

Accelerometers were most accurate when placed on the hip (compared with wrist placement), were most accurate for detecting sedentary behavior, and were least accurate for detecting light activity.

How are accelerometers mounted?

Accelerometers should be mounted onto a surface that is free from oil and grease as close as possible to the source of vibration. The surface should be smooth, unpainted, flat and larger than the base of the accelerometer itself.

Why accelerometer is used?

An accelerometer is an electronic sensor that measures the acceleration forces acting on an object, in order to determine the object's position in space and monitor the object's movement. ... This is why accelerometers are used in automobile collision safety systems, for example.

Where do you take a vibration reading on a motor?

You should take housing vibration measurements in three planes (vertical, horizontal, and axial) on both bearing housings, as shown in the Figure on the right. Take shaft vibration measurements in two directions (90° apart) on one drive end of the motor.

Where is vibration analysis performed?

What Are Some Industrial Applications of Vibration Analysis? Vibration analysis is predominantly applied for the condition monitoring on machineries and their key rotating parts, including but not limited to: Bearings, gears, shafts, free wheels. Rotating machines such as gearboxes, motors, fans and drive-trains.

How does an accelerometer measure vibration?

An accelerometer is a device that measures the vibration, or acceleration of motion of a structure. The force caused by vibration or a change in motion (acceleration) causes the mass to "squeeze" the piezoelectric material which produces an electrical charge that is proportional to the force exerted upon it.

How does piezoelectric accelerometer work?

A piezoelectric accelerometer consists of a mass attached to a piezoelectric crystal which is mounted on a case. When the accelerometer body is subjected to vibration, the mass on the crystal remains undisturbed in space due to inertia. As a result, the mass compresses and stretches the piezoelectric crystal.

How do phone accelerometers work?

The accelerometer is an in-built comment of a smartphone to measure its acceleration. It tracks the different motion like shaking, tilting, swinging, and rotating and accordingly change the orientation of your app. To calculate and detect the motion, the accelerometer uses the value of XYZ.

Do satellites have accelerometers?

These other forces acting on the satellites are measured using instruments called accelerometers mounted at the center of gravity of each satellite. These instruments allow scientists to distinguish between gravity influences and those caused by air drag in the atmosphere.

Does my Iphone have an accelerometer?

All iOS devices have a three-axis accelerometer, which delivers acceleration values in each of the three axes shown in Figure 1.

How do accelerometers work?

An accelerometer works using an electromechanical sensor that is designed to measure either static or dynamic acceleration. Static acceleration is the constant force acting on a body, like gravity or friction. These forces are predictable and uniform to a large extend.

Where should I put my outdoor weather sensor?

Location of your outdoor temperature sensor is important.

1. Mount the sensor vertically at least 6 feet off the ground.
2. Provide good airflow around the sensor.
3. Direct sunlight can inflate the temperature reading, so a north-side, shaded location is best.
4. If you have a solar panel on the sensor it will need to be charged.

Where should I place my outdoor thermometer?

Answer: For the most accurate reading, use a liquid-in-glass or a digital thermometer. Place it so that it is not in direct sunlight at any time. The shade of a tree and a north-facing porch are two good places. Place the thermometer four to six feet above the ground in an area where there is sufficient airflow.
