Sharp-tipped self-drilling screws are used when soft materials are being fastened as they don't require a pilot hole to be drilled. Self-drilling, self-tapping screws are ideal for thicker metals as they can drill and fasten in one step.

What are self drilling screws used for?

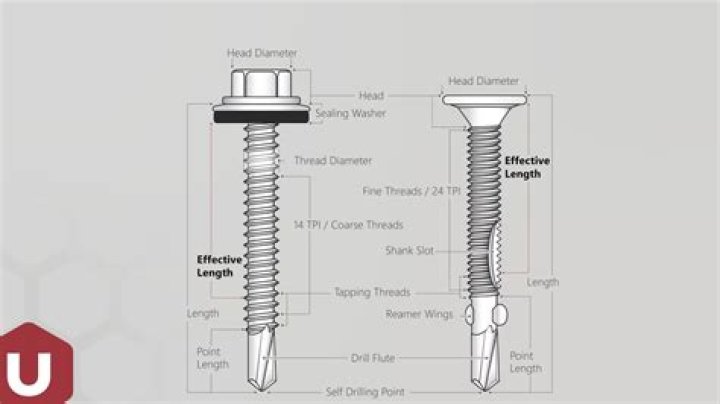

Self drilling screws have a point that acts as a drill bit and sharp cutting threads that tap the hole during installation. Self drilling screws are a commonly used variety of screw for quick drilling into both metal and wood. A self drilling screw can typically be identified by its point and flute (notch) tip.

When should you use a self-tapping screw?

Self-tapping screws are ideal for items that require regular maintenance and work well when working with two different kinds of material being fastened together. These screws either come with a blunt, flat, sharp or piercing tip. Sharp-tipped self-tapping screws drill their own holes in softer wood and plastic.

Should use self drilling screws in wood?

Self-tapping screws are ideal for drilling into metal and other hard materials, but are not useful for soft materials — such as wood — that require the screw to force a path into the material for increased holding strength. Self-tapping screws are more dependable for installing into stone or brick.

Can self drilling screws be used on metal?

Unlike self-tapping screws, self-drilling screws need no pilot hole to cut and fasten; they can drill, tap, and fasten in one go, which saves you the extra step of drilling, then fastening. These screws can fasten metal to metal, wood to metal, and work well with light, low-density materials.

Self-tapping vs Self-drilling Screws

16 related questions found

Do you need a pilot hole for self-tapping screws?

Self-tapping screws tap their own thread, which means they require a pilot hole which is slightly smaller than the diameter of the screw. ... For that reason, they don't require a pilot hole due to the drill bit end, and they were designed to secure thin pieces of metal together.

What is the difference between self tapping and self-drilling screws?

To summarise: Self-Tapping – a screw for securing thinner sheet metals and other substrates that cuts its own thread, but usually requires a predrilled or pre-punched hole. Self-Drilling – a screw that can, well, self-drill through various gauges of metal materials without predrilling.

Do self drilling screws split wood?

For rough construction, you can usually just power screws into place without drilling a hole. However, for finer woodworking projects, you risk splitting the wood without first drilling holes, especially near the end of a board. When driving screws, drill a pilot hole to prevent the wood from splitting.

What screws do you use for hardwood?

Conventional wisdom has always been that screws with fine threads are best for hardwoods — oak, cherry, maple, birch, etc. — while coarse-threaded screws drive and hold better in softwoods, plywood and composite sheet goods (particleboard, MDF, etc.).

What is the difference between a wood screw and a self tapping screw?

Wood screws have sharper, coarser threads with a sharper tip than self tapping screws. This allows the screw to easily cut into the wood with reduced stress within the housing, which helps to prevent splitting.

Do self-tapping screws rust?

You should also consider the material of which the self-tapping screw is made. Stainless steel is the most common material, as it offers a balanced combination of strength, durability and resistance to rust/corrosion. Some self-tapping screws, however, are also coated with other metals like zinc for enhanced strength.

Can you use self-tapping screws in stainless steel?

The Type of Self-Tapping Screws Available

The material flows around the threads of the screw, resulting in a zero-clearance fit. This makes them ideally suited for materials where large stresses are needed to resist loosening, such as in steels, stainless steels, light metals, and light metal alloys.

How strong are self-tapping screws?

Typically, a self-tapping screw can sustain around 80 to 100 pounds of weight. However, this depends on various factors such as the type of threads on the screw, its length, screw quality, screw insertion angle and forces that act on it.

How does self-drilling screw work?

Self-tapping screws work by cutting into the thread of the screw; thus, creating a flute and cutting edge, much like a tap. ... With a self-tapping screw, it automatically creates the pilot hole as it's driven into the material, eliminating the need for a dedicated pilot hole.

How can you tell if a screw is self-drilling?

Whichever name is used, a self-tapping screw (or sheet metal screw), is designated as such because it contains form mating threads (thereby “tapping” the threads) in a pre-drilled hole into which they are driven. A self-drilling screw is a type of self-tapping screw that also features a drill point.

How far should screws go into wood?

The most important factor in screw selection is length. The general rule of thumb is that the screw should enter at least half the thickness of the bottom material, e.g. 3/4″ into a 2 x 4. The other factor is the screw's diameter, or gauge.

What are the 3 types of screws?

3 Common Screw Types at a Glance – Machine, Sheet Metal, and Cap Screws.

Can Tek screws be used in wood?

Tek screws, also called self-drilling screws, are self-tapping fasteners that have a drill bit end allowing them to be used for screwing materials such as wood and metal together without pre-drilling. Tek screws are best fitted with a high-speed impact drive.

How do you drill wood without sliding holes?

You can drill a hole in wood without splintering by using sharp and well-maintained drill bits, drilling a hole at higher speeds, avoiding putting pressure on the drill & letting the bit find its way through the wood. To avoid wood splintering, use another wooden board at the bottom that you let drill in.

Can self drilling screws be used on concrete?

Can self-drilling screws be used on concrete? Self-drilling screws are basically concrete screws that tap threads into concrete and are the only kind of screws that are strong enough to penetrate concrete.

What are self drilling screws called?

Self-drillers are also commonly called 'Tek' screws, a proprietary brand name associated with their unique shape and function. Drill point sizes dictate drilling capacity.

Can I use a sheet metal screw in wood?

These screws are not really interchangeable. In a bind, if you're short of the right available screws, you can use a sheet metal screw on wood. However, the opposite is not the case. Wood screws are unlikely to form a tight enough joint when used on sheet metal – especially if they have a threadless shank.

Can self drilling screws be reused?

The advantage of using self-tapping screws for aluminium is that they don't need pre-drilling and are easily removed without damaging the metal. They can also be reused in the same material.
