Bluetooth technology uses a special binary frequency shift keying modulation scheme called Gaussian Frequency Shift Keying (GFSK).

Which modulation scheme is used by Bluetooth Mcq?

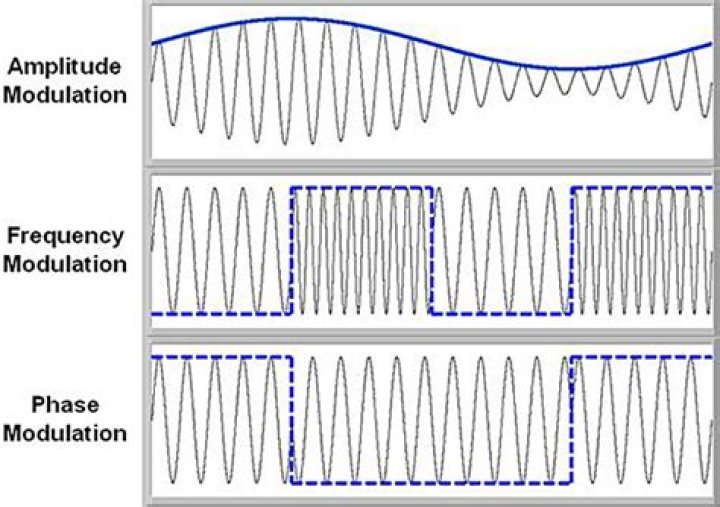

Which modulation scheme is used by Bluetooth? Explanation: Bluetooth uses GFSK (Gaussian Frequency Shift Keying). When GFSK is used for Bluetooth modulation, the frequency of the carrier is shifted to carry the modulation.

Is Bluetooth a FHSS?

Instead of transmitting over one frequency within the 2.4 GHz band, Bluetooth radios use a fast frequency-hopping spread spectrum (FHSS) technique, allowing only synchronized receivers to access the transmitted data. How is Bluetooth used? Bluetooth can be used to wirelessly synchronize and transfer data among devices.

Which technique is used in Bluetooth?

It is a low-speed data transmission method. Bluetooth operates in the same 2.4- to 2.483-GHz unlicensed spectrum as Wi-Fi. It uses a technique known as frequency-hopping spread spectrum (FHSS), where the data is divided into chunks and transmitted via a carrier that hops from one random frequency to another.

Which modulation technique is used in Ble?

Radio interface

Instead of the classic Bluetooth 79 1-MHz channels, Bluetooth Low Energy has 40 2-MHz channels. Within a channel, data is transmitted using Gaussian frequency shift modulation, similar to classic Bluetooth's Basic Rate scheme.

GFSK Modulation Technique - Bluetooth low energy (PHY layer data transfer)

15 related questions found

What is a Bluetooth modulator?

The Bluetooth radio interface also uses a modulation technique called Gaussian Frequency Shift Keying, GFSK. This form of modulation is spectrally efficient and also enables the use of efficient radio power amplifiers, thereby saving on battery life.

Is Bluetooth an interface?

A Bluetooth profile is a wireless interface specification for Bluetooth-based communication between devices. ... Provides support for Bluetooth headsets to be used with mobile phones. This includes both the Bluetooth Headset profile and the Hands-Free (v1. 5) profile.

How is Bluetooth used?

Bluetooth technology is a short-range wireless communications technology to replace the cables connecting electronic devices, allowing a person to have a phone conversation via a headset, use a wireless mouse and synchronize information from a mobile phone to a PC, all using the same core system.

How does Bluetooth work physics?

Devices connected in a Bluetooth network communicate with each other using ultra-high frequency (UHF) radio waves. These are electromagnetic waves with frequencies around 2.4 gigahertz (2.4 billion waves per second). UHF waves of different frequencies are used in microwave ovens, GPS systems and many other devices.

What channels does Bluetooth use?

The ISM 2.4 GHz band is 2400 to 2483.5 MHz, and Bluetooth uses 79 radio frequency channels in this band, starting at 2402 MHz and continuing every 1 MHz. It is these frequency channels that Bluetooth technology is "hopping" over.

Does Bluetooth use RF?

Bluetooth (which is a type of RF) is an open wireless technology standard for transmitting data over short distances. It uses radio waves on a particular frequency for data transmission from device to device.

What spectrum is Bluetooth?

Bluetooth® technology uses the 2.4 GHz ISM spectrum band (2400 to 2483.5 MHz), which enables a good balance between range and throughput. In addition, the 2.4 GHz band is available worldwide, making it a true standard for low-power wireless connectivity.

What is Bluetooth made of?

Bluetooth uses a radio technology called frequency-hopping spread spectrum. Bluetooth divides transmitted data into packets, and transmits each packet on one of 79 designated Bluetooth channels. Each channel has a bandwidth of 1 MHz.

Which multiplexing is used by Bluetooth?

Network Connectivity

A piconet consists of one master Bluetooth device and up to seven active slave devices within radio range of the master, typically 10 meters or less. All communication is between master and one slave, and time division multiplexing is used as the master switches rapidly between slaves.

What is nominal range of Bluetooth?

Extended range: Low-energy Bluetooth has a nominal range of 10 to 30 meters. Bluetooth 5 extends this to the 30- or 50-meter range. Actual range depends entirely on the environment, but longer range means more potential uses. With a line-of-sight path, the range can be many hundreds of meters.

Which modulation scheme is used in Zigbee Mcq?

It uses 2.4 GHz band with DSSS-OQPSK modulation. I tried to find it using Nyquist criteria which is: Data rate=2*Bandwidth*log2(M), M being 16 for OQPSK. The raw, over-the-air data rate is 250 kbit/s per channel in the 2.4 GHz band, 40 kbit/s per channel in the 915 MHz band, and 20 kbit/s in the 868 MHz band.

Why is Bluetooth called Bluetooth?

Surprisingly, the name dates back more than a millennia to King Harald “Bluetooth” Gormsson who was well known for two things: Uniting Denmark and Norway in 958. His dead tooth, which was a dark blue/grey color, and earned him the nickname Bluetooth.

What is Bluetooth communication?

Bluetooth is a wireless communication technology that can be used for close-range data transmission from one digital device to another. Bluetooth is essentially a one-to-one wireless connection that uses 2.4 GHz-band radio waves. ... For two devices to connect using Bluetooth, both devices must support the same profile.

What is Bluetooth and its uses?

Computer NetworkInternetTech News. Bluetooth is a network technology that connects mobile devices wirelessly over a short-range to form a personal area network (PAN).

What is Bluetooth application?

There are some important application of Bluetooth which are given below, The Bluetooth is used in wireless head sets. Bluetooth is used to transfer files, images and MP3 or MP4 between cell phones. It is used in laptops and notebooks. ... It is almost used in wireless communication (WAN).

What is Bluetooth used for on a computer?

Bluetooth is now a ubiquitous wireless technology that transmit data back and forth between devices over a short distance. It allows you to get rid of cables around your desk. Of course, Windows 10 includes support for Bluetooth.

What port does Bluetooth use?

Infrared Port

It enables wireless connection of data through infrared rays. Moreover, it works within a range of 10m. Furthermore, any two devices having an infrared port face each other so that they can share data through infrared rays.

Is Bluetooth trademarked?

The Bluetooth^® brand is globally recognizable with up to 92% consumer awareness. ... The Bluetooth Special Interest Group (SIG) owns the Bluetooth word mark, figure mark, and combination mark (collectively, the Bluetooth trademarks), and it protects the Bluetooth trademarks through the brand enforcement program.

Is Bluetooth a guided media?

The guided media is a type of media transmission system, where the transmission is performed through connected wiring system and physical medium is necessary in this case. ... That's why, we cannot consider the bluetooth as a guided media.
