The molecular ion is also the base peak, and the only fragment ions are CO (m/z=28) and O (m/z=16).

Is the M+ peak the molecular ion peak?

Molecular ion peak Page 2 Mass spectrometry Page 3 Mass spectrometry The mass spectrometer bombards the sample with electrons this knocks one electron off the molecule and forms a cation with the same mass as the molecular mass. This cation is measured as the molecular peak and is often noted as [M+].

What is molecule ion peak?

This ion provides information on molecular weight, because the electron mass is so small compared to the mass of a molecule that the mass of a molecular ion is regarded as the mass of the molecule. ...

Is the base peak the molecular ion?

Base peak: The most intense (tallest) peak in a mass spectrum, due to the ion with the greatest relative abundance (relative intensity; height of peak along the spectrum's y-axis). Not to be confused with molecular ion: base peaks are not always molecular ions, and molecular ions are not always base peaks.

What is molecular peak and peak ion?

 Molecular ion - The ion obtained by the loss of one. electron from the molecule (m+)  Base peak - The most intense peak in the MS, assigned 100% intensity.

Molecular ion peak

28 related questions found

What is m2 peak?

mass spectra - the M+2 peak. MASS SPECTRA - THE M+2 PEAK. This page explains how the M+2 peak in a mass spectrum arises from the presence of chlorine or bromine atoms in an organic compound. It also deals briefly with the origin of the M+4 peak in compounds containing two chlorine atoms.

Why is there no molecular ion peak?

Using the molecular ion to find the relative formula mass

A few compounds have mass spectra which don't contain a molecular ion peak, because all the molecular ions break into fragments. That isn't a problem you are likely to meet at A'level.

What does M+ peak mean?

The M+ peak is usually the highest intensity peak in the cluster of peaks at highest m/z.

Which peak is the molecular ion chegg?

In the mass spectrum, the molecular ion peak is m/z = 88.

Which peak represents the molecular ion the molecular ion peak is expected to appear at M Z?

The presence of the base peak at 45 in combination with our knowledge about the nitrogen rule suggests that the peak at m/z 60 is likely the molecular ion because even molecular ions usually produce odd molecular fragments by breaking single bonds.

Which peak is the base peak the base peak appears at M Z?

identification of chemical compounds

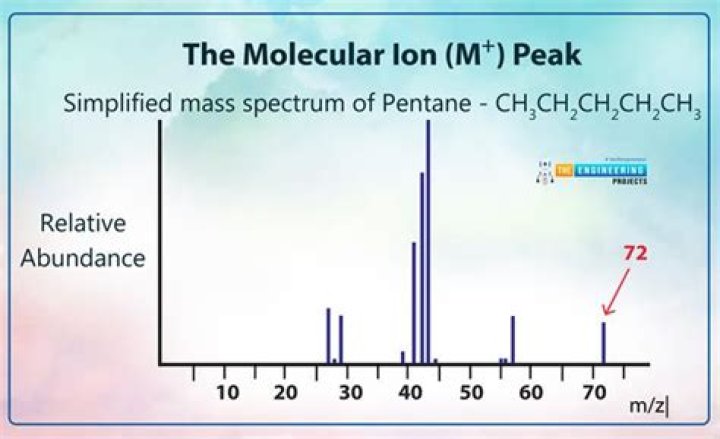

… spectrum is known as the base peak, and its intensity is arbitrarily set at a value of 100. The peak at m/z= 72 is the molecular ion and as such gives the molecular mass of the molecule.

How many molecular ion peaks are there?

There are two molecular ion peaks in the mass spectra of compounds containing a single chlorine atom.

What does the base peak tell you?

The base peak is the tallest peak because it represents the commonest fragment ion to be formed - either because there are several ways in which it could be produced during fragmentation of the parent ion, or because it is a particularly stable ion.

What are fragment ions?

Fragment ions are produced by decomposition of a molecular ion (fragmentation) in the ion source. There exist many kinds of fragment ions, whose distribution reflects the chemical structure of a compound, according to various ways of fragmentation. The fragment ions have smaller masses than the molecular ion.

Which of the following is NOT a molecular ion?

Since ,ammonium ion (NH4⁺) is not formed by the gain or lose of electron . Therefore it is not a molecular ion.

What is the molecular ion peak of ethanol?

The SDBS database (used throughout this site) gives the -OH peak in ethanol at about 2.6.

What is a peak in mass spectrometry?

A mass spectrum is the two-dimensional representation of ion abundance versus m/z. ... The signal at highest m/z within a spectrum normally reflects the molecular ion and the corresponding peak is generally termed molecular ion peak. All other signals must therefore represent fragment ions thereof.

What is the difference between molecular ion peak and base peak?

Significance of Molecular ion:  Molecular ion peak gives the molecular weight of the compound. ... BASE PEAK :  The most intense (tallest) peak in a mass spectrum, due to the ion with the greatest relative abundance (relative intensity; height of peak along the spectrum's y-axis).

What is base peak and parent peak?

On this scale, the most abundant ion, called the base peak, is set to 100%, and all other peaks are recorded relative to this value. ... The molecular weight of acetone is 58, so we can identify the peak at m/z = 58 as that corresponding to the molecular ion peak, or parent peak.

What is the MZ value for the molecule ion peak of 2 2 dimethylpropane?

2-2-Dimethylpropane (neopentane)

The base peak should be at m/z=57 . This corresponds to loss of a methyl group and formation of the stable t-butyl cation, (CH3)3C+ .

What mean MZ?

M stands for mass and Z stands for charge number of ions. In mass analysis, an electron is taken from molecules to create single charged ions. If two electrons are removed, double charged ions are produced. The number of electrons removed is the charge number (for positive ions).

Which compound will show an intense peak in the mass spectrum at M Z 58?

For acetone, the base peak corresponds to a fragment with m/z = 43 - . The molecular weight of acetone is 58, so we can identify the peak at m/z = 58 as that corresponding to the molecular ion peak, or parent peak.
