André-Marie Amphere invented the solenoid in the late 1820s.

When was a solenoid valve invented?

The first Solenoid Valves were invented and manufactured in 1910 by Automatic Switch Company (ASCO). These valves went hand-in-hand with the company's primary products: switches. Solenoid Valves could be used with level switches, float switches or temperature switches, etc.

How is a solenoid created?

A solenoid is a device comprised of a coil of wire, the housing and a moveable plunger (armature). ... When an electrical current flows through this wire, a strong magnetic field/flux is created. The housing, usually made of iron or steel, surrounds the coil concentrating the magnetic field generated by the coil.

What is a solenoid switch for?

Definition of 'solenoid switch'

A solenoid switch is an electrical switch that is often used where a high current circuit, such as a starter motor circuit, is brought into operation by a low current switch. ... The solenoid switch activates a heavy-duty switch that connects the vehicle's battery to the starter motor.

Where is solenoid used?

The main use of solenoid is as a switch for power. They are used in inductors, valves, antennas, etc. Its application is in varied fields like medical, industrial use, locking systems, automotive, etc. It is used to control a valve electrically.

Solenoid Basics Explained - Working Principle

31 related questions found

Are solenoids AC or DC?

Solenoids are the most important components used in solenoid valves to control the flow of liquids and gases. Solenoids are electromechanical devices that convert AC or DC electrical energy into linear motion.

What is solenoid BYJU's?

A solenoid is a common term for a wire coil used as an electromagnet. It also applies to any system that uses a solenoid to transform electric energy into mechanical energy. The system generates a magnetic field from electric current and produces linear motion using the magnetic field.

What is the main advantage of the solenoid switch?

For automation control systems, the solenoid valves make automatic control easier and more efficient. Because they are able to automatically open and close by electromagnetic signals. Compared to other mechanical or gas valves, the solenoid valves have a lower cost and can last longer.

What is the principle of solenoid?

The solenoid simply works on the principle of “electromagnetism”. When the current flow through the coil magnetic field is generated in it, if you place a metal core inside the coil the magnetic lines of flux is concentrated on the core which increases the induction of the coil as compared to the air core.

Who discovered the relationship between electricity and magnetism?

Oersted made the discovery for which he is famous in 1820. At the time, although most scientists thought electricity and magnetism were not related, there were some reasons to think there might be a connection.

Is solenoid a temporary magnet?

A solenoid is used as a temporary magnet (an electromagnet).

What is solenoid with diagram?

The solenoid is a device with a long cylindrical coil of wire having a large number of turns fixed together very tightly. ... The condition for being a solenoid is that the length of the coil must be greater than its diameter. The magnetic field around a current carrying solenoid is represented in the diagram.

What is SV in Ro?

RO Service Solenoid Valve (Sv) Slx 24 V Volt Solid Filter Cartridge Price in India - Buy RO Service Solenoid Valve (Sv) Slx 24 V Volt Solid Filter Cartridge online at Flipkart.com.

How much force can a solenoid generate?

A linear solenoid can provide up to 30 pounds of force from a unit less than 2-1⁄4 inches long. A rotary solenoid can provide well over 100 lb-in of torque from a unit also less than 2-1⁄4 inches long.

What is the operating current of a solenoid called?

Fig. 3 shows a diagram of the current flow pattern when a solenoid coil is energized. The initial current flow is called inrush current. The current that holds the armature in the energized position is called holding current.

What are three types of solenoids?

Different Types of Solenoids

• AC Laminated Solenoid.
• DC C–Frame Solenoid.
• DC D–Frame Solenoid.
• Linear Solenoid.
• Rotary Solenoid.

How many types of solenoid are there?

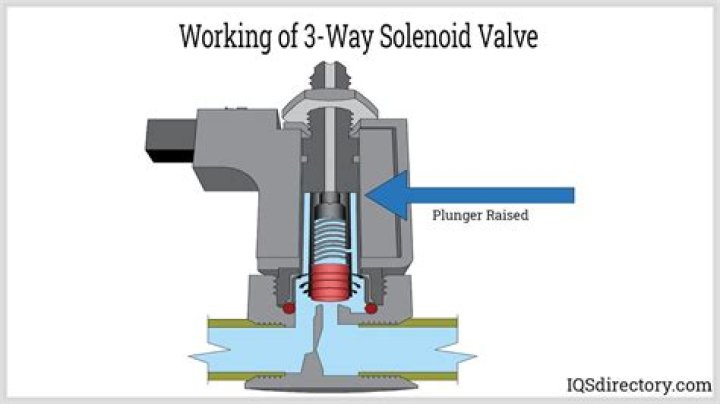

There are four basic types of 3-way solenoid valves. Each of these different types is used for different purposes. Two of the main types include 3-way normally closed and 3-way normally open.

Is a solenoid a relay?

Solenoids are a type of relay engineered to remotely switch a heavier current (typically ranging from 85-200 amps). In contrast to the smaller electromechanical cube relays, a coil is used to generate a magnetic field when electricity is passed through it, which effectively opens or closes the circuit.

Can a solenoid engine power a car?

These engines mimic the function of an internal combustion engine, with each solenoid acting as a piston. The only problem with [Emiel]'s concept engines, though, was that he never actually put them into a vehicle to prove their effectiveness. This build finally proves that they can work at powering a vehicle.

Why solenoid is used in almost all industrial applications?

Solenoid valves are used in industries to control machines, dose, mix, or restrict the flow of liquids or gases. ... The valves can also be used to mix different liquid substances using precise volumes. In automatic systems, solenoid valves are utilized to control the flow of fluid and produce movements.

What is the advantage of a solenoid over and ordinary coil?

Magnetic field due to the coil is directly proportional to the no. of turns of the coil. Ordinary coil has single turn only and solenoid has large no. of turns so magnetic field strength is more due to the solenoid than the ordinary coil.

What is toroid formula?

Magnetic Field of Toroid

The toroid is a useful device used in everything from tape heads to tokamaks. Magnetic field = permeability x turn density x current. For a solenoid of radius r = m with N = turns, the turn density is n=N/(2πr)= turns/m.

What is a Tesla physics?

Definition: The International System unit of field intensity for magnetic fields is Tesla (T). One tesla (1 T) is defined as the field intensity generating one newton (N) of force per ampere (A) of current per meter of conductor: T = N × A-1 × m-1 = kg × s-2 × A-1.

Is solenoid and electromagnet same?

An electromagnet is an electrically induced magnet. ... A solenoid is a cylindrical coil of wire acting as a magnet when carrying an electric current. A solenoid is the same as an electromagnet but without a core of material that can be magnetised i.e. iron (which is magnetically soft).
