An ohmic resistor is made ohmic because its function follows Ohm's law. Ohm's law essentially says that current is equal to voltage divided by resistance. Additionally, resistance is equal to voltage divided by current, and voltage is equal to current times resistance.

What is ohmic resistance with example?

Solution. Ohmic Resistor: An ohmic resistor is a resistor that obeys Ohm's law. For example: all metallic conductors (such as silver, aluminium, copper, iron etc.)

Who is ohmic conductor?

An ohmic conductor is defined as a two-terminal device in which the voltage or current characteristics have a straight line passing through the origin. Silver, copper wire, metals are examples of ohmic conductors.

What is ohmic resistance class 12?

Ohmic resistances: The material or resistance which obeys Ohm's law i.e. V = iR are said to be ohmic resistance. ... Non-Ohmic resistances: The material or resistance which obeys Ohm's law are said to be non-ohmic resistance.

Is Nichrome and ohmic resistance?

Nichrome is an ohmic resistance.

What are Ohmic & Non-Ohmic Conductors & Components

30 related questions found

Is transistor an ohmic resistance?

So, diodes are non-ohmic resistances. A transistor itself means 'trans' 'resistance' which means variable resistance. So, the only material which obeys ohm's law in the given options is copper wire.

Is led a ohmic resistor?

LEDs are not Ohmic materials, meaning the relationship between current and voltage is not linear.

What is ohmic resistance your answer?

Materials and components that obey Ohm's law are described as "ohmic" which means they produce the same value for resistance (R=IV​) regardless of the value of V or I applied and whether the applied voltage or current is DC or AC. Out of the options listed only Copper wire is ohmic.

What do you mean by ohmic and non ohmic resistance?

Ohmic resistors are the resistors which obey ohms law. Non ohmic resistors are those which do not obey ohms law. in ohmic resistors current is directly proportional to voltage. in non ohmic resistors there is no linear relationship.

What is Ohm's law BYJU's?

Ohm's law states that the current through a conductor between two points is directly proportional to the voltage across the two points. Ohm's law formula is written as; V ∝ I. Therefore, V = RI where R is a constant called resistance.

What is an ohmic material?

Any material, component, or device that obeys Ohm's law, where the current through the device is proportional to the voltage applied, is known as an ohmic material or ohmic component. Any material or component that does not obey Ohm's law is known as a nonohmic material or nonohmic component.

What is the relation between conductance and resistance?

Conductance (G) is the reciprocal of resistance (1/R) with the unit of conductance being the siemens (S) and is given the upside down ohms symbol mho, ℧. Thus when a conductor has a conductance of 1 siemens (1S) it has a resistance is 1 ohm (1Ω).

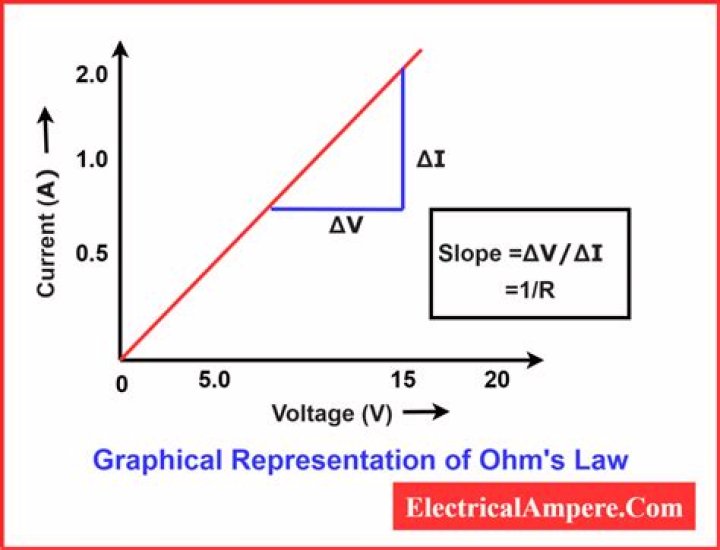

Which IV represents ohmic conductor?

Ohm's law V=IR is an equation of straight line. Hence I-V characteristics for ohmic conductors is also a straight line and its slope give resistance of the conductor.

What does an ohmic conductor look like?

Ohmic conductors definition:

If the voltage and current for an Ohmic electrical or electronic component is plotted, then a straight line is seen on the graph. A low resistance component will have a much shallower line and a higher resistance device will have a much steeper line on the Ohmic conductor graph.

Is a diode an ohmic resistor?

Here the graph curves because as the filament heats it's resistance goes up. A diode only allows current to flow in one direction through it (forward biased), when the current tries to flow the other way (reverse biased) no current is allowed to flow through the diode.

What is an ohmic resistor physics?

An ohmic resistor is a resistor that obeys Ohm's law V = IR (voltage = current x resistance). Therefore, if the voltage in such element is increased by n number of times, by the same number n has to increase the current.

What is difference between ohmic and non ohmic resistance?

Ohmic conductors are the conductors that follow Ohm's law that is their resistance remains the same on changing the current and voltage. Non-ohmic conductors are those that do not follow ohm's law which means that their resistance changes with changing current and voltage.

What is mean by non ohmic resistance?

Complete step by step solution: - A non-ohmic resistance is a resistance which does not follow the Ohm's law. Ohm's law states that the current through a conductor between two points is directly proportional to the voltage across the two points.

What does it mean if something is ohmic?

/ (ˈəʊmɪk) / adjective. of or relating to a circuit element, the electrical resistance of which obeys Ohm's law.

What causes resistance?

Resistance occurs because moving electrons in current bump into atoms of matter. Resistance reduces the amount of electrical energy that is transferred through matter. That's because some of the electrical energy is absorbed by the atoms and changed to other forms of energy, such as heat.

What is pure ohmic resistance?

In a pure ohmic AC Resistance, the current and voltage are both “in-phase” as there is no phase difference between them. ... Impedance, which is given the letter Z, in a pure ohmic resistance is a complex number consisting only of a real part being the actual AC resistance value, ( R ) and a zero imaginary part, ( j0 ).

How do you find the resistance?

If you know the total current and the voltage across the whole circuit, you can find the total resistance using Ohm's Law: R = V / I. For example, a parallel circuit has a voltage of 9 volts and total current of 3 amps. The total resistance R_T = 9 volts / 3 amps = 3 Ω.

Is copper a ohmic resistor?

The materials or components that obey the Ohm's law are said to be "ohmic" , which means that they produce the same value of resistance (R= V/I) regardless of the value of Voltage or current. ... From the above options only copper wire is an ohmic resistance.

What is diode resistant?

Hence, diode resistance can be defined as the effective opposition offered by the diode to the flow of current through it. ... Ideally speaking, a diode is expected to offer zero resistance when forward biased and infinite resistance when reverse biased.

What are potentiometers made of?

The resistive element of inexpensive potentiometers is often made of graphite. Other materials used include resistance wire, carbon particles in plastic, and a ceramic/metal mixture called cermet.
