Alternators are operated in parallel for the following reasons: Several alternators can supply a bigger load than a single alternator. ... Parallel operation of the alternator, reduces the operating cost and the cost of energy generation. It ensures the greater security of supply and enables overall economic generation.

Why are alternators run in parallel?

Advantages of Parallel Operating Alternators

During light loads, more than one alternator can be shut down while the other will operate in nearly full load. High efficiency. The operating cost is reduced. Ensures the protection of supply and enables cost-effective generation.

Why is parallel operation of generator necessary?

Parallel generators provide the maximum output when the power demand peaks and minimum output when the load necessities are low. Hence, parallel generators increase the reliability of power systems and make them more efficient.

Why parallel operations are used?

Reasons for parallel operation

Parallel operation reduces the space capacity of the substation when we connect transformers of standard size. The parallel connection maximizes the electrical power system availability as we can shut down any system for maintenance without affecting other systems performance.

What is are the necessary conditions for parallel operation of alternators?

The phase sequence of the busbar voltages and the incoming machine voltage must be same. The terminal voltage of the incoming machine and the alternator which is to be connected in parallel or with the Busbar voltage should be equal. ...

Parallel Operation Of Alternator || Conditions || Working || Advantage ||

28 related questions found

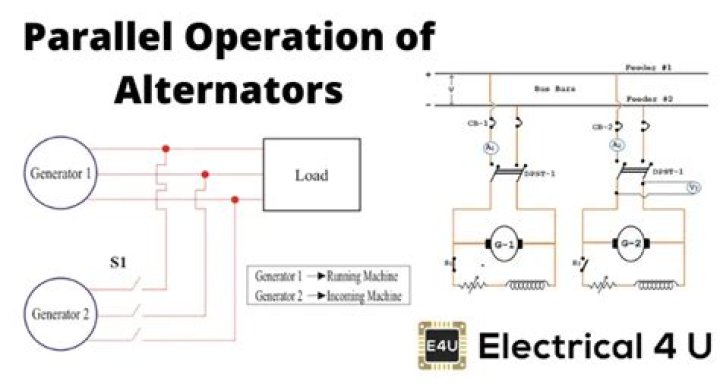

What is parallel operation of alternators?

When the load on a system exceeds the amount of power that a single or existing number of generators can deliver, an additional generator is connected to the system to deliver required power. This method of adding an alternator in the existing system is called 'parallel operation of alternators'.

What is parallel operation?

Parallel operation is the connec- tion of two or more power sources of the same size and output volt- age to obtain a higher output cur- rent. When connecting in parallel the outputs must be connected together keeping polarity in mind. The output voltage remains the same, but the current increases.

Why all transformers Cannot be operated in parallel?

Same polarity

Polarity of transformer means the instantaneous direction of induced emf in secondary. ... Polarity of all transformers run in parallel should be same otherwise huge circulating current flows in the transformer but no load will be fed from these transformers.

What are the advantages of parallel operation of alternator Mcq?

1. The alternators are operated is parallel because it. (a) increases the reliability of supply. (b) makes the repairing economical and convenient.

What are the advantages of parallel operation of transformers?

Advantages of Transformer Parallel Operation

• Maximize electrical system efficiency: Generally electrical power transformer gives the maximum efficiency at full load. ...
• Maximize electrical system availability: ...
• Maximize power system reliability: ...
• Maximize electrical system flexibility:

Is alternator a synchronous generator?

The rotating magnetic field induces an AC voltage in the stator windings. Since the currents in the stator windings vary in step with the position of the rotor, an alternator is a synchronous generator. ... This increases the magnetic field around the field coils which induces a greater voltage in the armature coils.

When two alternators are running in parallel if the field of one of the alternator is adjusted it will?

If the field of one of the alternator is adjusted, it will. reduce its speed.

Why three phase alternators are invariably star connected?

A star connected alternator will require less number of turn then a delta connected alternator, for the same line voltage. ... 2. For the same line voltage, a star connector alternator requires less insolutions then a delta connected alternator.

What happens to the power factor of an alternator operating in parallel with other alternators if its excitation is increased above the normal value of excitation?

If the excitation of an alternator operating in parallel with other alternators is increased above its normal value of excitation, its power factor changes in the lagging direction and its current output increases with no appreciable change in its kW load.

What is the function of alternator Mcq?

Alternators are used in modern automobiles to charge the battery and to power the electrical system when its engine is running.

Which polarity is used for parallel operation of transformer?

In perfect parallel operation of two or more transformers, current in each transformer would be directly proportional to the transformer capacity, and the arithmetic sum would equal one-half the total current. Any combination of positive and negative polarity transformers can be used.

What will happen if the transformers working in parallel are not connected with correct polarity?

What will happen if the transformers working in parallel are not connected with regard to polarity? ... An incorrect polarity connection of these transformers will result in dead short circuit.

Can you connect two transformers in parallel?

It is possible to connect transformers that have different polarities in parallel. You need to remember that you match up the polarities. ... The supply line polarity determines the primary polarity of the transformer. The primary polarity determines the secondary polarity of the transformer.

Why do we need parallel operation of single phase transformer?

Need of Parallel Operation in Single Phase Transformers

Firstly, if one transformer fails, the continuity of supply can be maintained through other transformers. Secondly, when the load on the substation becomes more than the capacity of the existing transformers, another transformer can be added in parallel.

Why are Delta motors connected?

Firstly, the stator winding is connected in star and then in Delta so that the starting line current of the motor is reduced to one-third as compared to the starting current with the windings connected in delta. ... Since the developed torque is proportional to the square of the voltage applied to an induction motor.

Why are slip rings in an alternator necessary?

For the alternators, an electrical slip ring is used that allows the alternation of current to electrical energy via a mechanical energy. This is how slip rings work transferring the energy from a stationary object to a rotating one.

What is the advantage of salient pole in an alternator?

reduced noise. reduced windage loss. adoptability to low and medium speed operation.

When two alternators are running in parallel if the field?

Detailed Solution. Parallel operation of Two alternators: When two alternators are running in parallel, both machines are connected to the supply. Both alternators produced voltage and current which gives to supply because both machines act as an alternator.

When two alternators are running in exactly synchronism the synchronizing power will be?

When two alternators are in exact synchronism, the alternator will run on synchronism. A synchronizing torque will be developed if any of the alternators drops out of synchronism and will bring it back to the synchronism.

What happens when a stationary alternator is connected in parallel with live bus bar?

Under a stationary condition, the emf induced in stator winding is zero. If such an alternator is connected to a live bus bar, there is always a danger of short circuit as armature resistance is negligible, and reactance is zero (frequency is zero).
