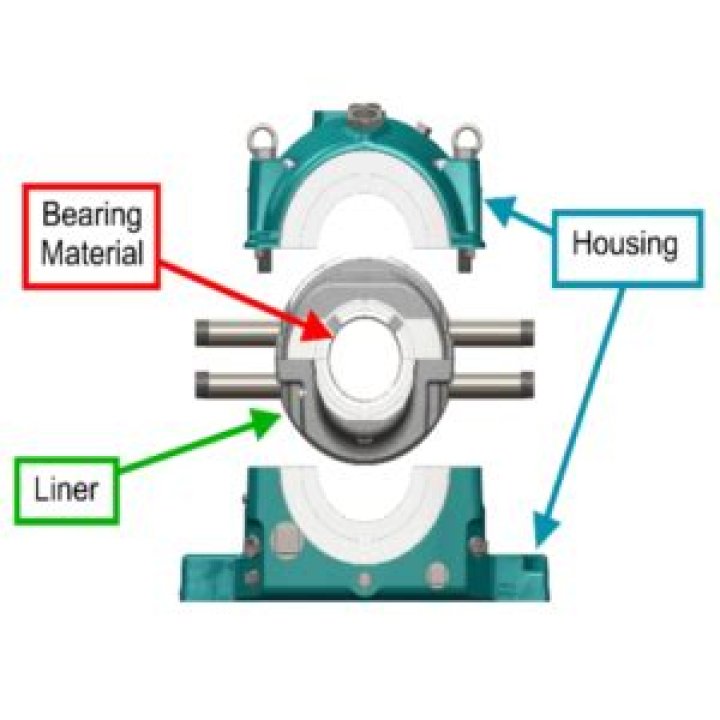

Babbitt metal is used as the lining for bearing shells of cast iron, steel and bronze. The Babbitt lining prevents friction and wear that is common when a lubricant is not able to prevent the bearing's moving parts from welding together. The Babbitt therefore extends the life of the bearing.

What are the advantages and disadvantages of Babbitt as bearing material?

Combining a thin layer of babbitt on a steel backing markedly improves its fatigue resistance and load carrying capacity. Although more labor intense, the addition of the low cost backing reduces the overall bearing cost, making the babbitt bearing a top performer in all the desirable bearing traits.

What are the important properties of Babbitt metal?

Babbitt metal is characterized by its resistance to galling. Babbitt metal is soft and easily damaged, which suggests that it might be unsuitable for a bearing surface. However, its structure is made up of small hard crystals dispersed in a softer metal, which makes it a metal matrix composite.

What is Babbitt made of and what is it used for?

It is a soft, white non-ferrous alloy which is used to provide a bearing surface. Bearings are used in engines to support moving mechanical parts and protect them from frictional degradation. Babbitt metal also has properties that help it reduce friction which makes it a good material for use in a plain bearing.

What are the most important bearing alloys?

The most popular bearing alloys are based on tin and lead. They are widely used in friction assemblies (for example in: turbines, compressors, transport, cars, various friction units).

babbit bearings,types of babbit bearings,white metal

39 related questions found

What is Babbitt made out of?

Babbitt is a white metal alloy that was patented by Isaac Babbitt in 1839. Over time, the term Babbitt has been applied to other similar white metals comprised of tin, copper and antimony. Lead can sometimes be added in place of the tin.

What are bearing alloys?

Bearing alloys form a special group of materials which have found wide use in the manufacture of slide bearing bushings. The bearing alloys used in commercial practice include cast irons, bronzes, and alloys based on tin, lead, zinc and aluminium. The most common alloys are those of tin and lead.

What does Babbitt mean?

: a person and especially a business or professional man who conforms unthinkingly to prevailing middle-class standards.

What is the difference between Babbitt and lead?

Industrially speaking, the tin based Babbitt's are used for high speed, low weight bearing applications. The lead based Babbitt's are formulated for low speed, heavy rotating weight systems. Their compositions also vary considerably because of the casting requirements for the various applications vary wildly.

How do you clean Babbitt bearings?

Clean the Surface Where the Bearing Will Be Located

This is because bearing cases often get inundated with oil, and you will need to remove all that oil in order to ensure the success of your new bearing. You can clean the bearing case with a caustic solvent, sandblaster or grinding wheel.

How do you use a Babbitt?

Skim off any dross (impurities) that have floated to the top of the molten metal. Pour the bearing. Pour the molten Babbitt metal into the bearing shell. If the ladle is not big enough to fill with 1 pour, work quickly to get the second pour in so that no boundary forms between the 2 pours.

What metal is Babbitt?

The alloy mentioned in the patent was 89% Tin, 9% Antimony and 2% Copper, which is amazingly close to today's very popular ASTM B-23 Grade 2 “Babbitt” was originally applied to Tin-base alloys, it is now used to describe bearing metals with Lead or other metals as the major element.

What is tin based babbitt used for?

Due to having high load capabilities, tin-based Babbitt bearings can be used in compressors, electric motors, heavy machinery, and marine work. A common trade name for some tin-based Babbitt is Tuftin, which is sold through our Jackson Wheeler brand.

What is the purpose of thrust ball bearing?

Thrust bearings support the axial thrust of both horizontal and vertical shafts. The functions are to prevent the shaft from drifting in the axial direction and to transfer thrust loads applied on the shaft.

What is the hardness of Babbitt?

This alloy has a melting temperature of 240-422° C (464-792° F) and a hardness of 27-30 HV100. AIM-Co Babbitt is typically used for very high loads that have multiple axes for stress strain.

What is nickel Babbitt?

4X Nickel Babbitt is an alloy of Tin, Antimony, Copper and Nickel and is lead-free. ... 4X Nickel Babbitt is similar to Grade 2 Babbitt but with a little nickel added for higher tensile strength over 300F. This Babbitt metal comes in 5.5 to 6 lb. notched ingots.

Which type of bearing bronze is the weakest?

7. Which type of bearing bronze is the weakest? Explanation: Leaded bronze is a Copper-base bearing alloy containing 75% Cu, 5% Sn, 18% Pb, and 2% Ni. They are less stronger than other bearing bronzes.

What is the material used in bearing?

Most ball bearings are made of a type of steel known as high carbon chromium steel, often called chrome steel. This is used for reasons of cost and durability. Bearings are also made from other materials such as stainless steel, ceramics and plastic.

Which alloy is used for making bearings?

Bearings Made of Carbon Alloy Steel

Carbon steel materials are used to produce various components of bearings and have two basic types, Medium versus Low Carbon Alloy Steel.

What are the important properties of bearing materials?

For the bushing, however, there are other requirements, as discussed below that must be considered in selecting the best material for bearing.

• Low Coefficient of friction. ...
• High Compressive Strength. ...
• High Fatigue Strength. ...
• Low Thermal Expansion. ...
• High Thermal Conductivity. ...
• Elasticity. ...
• Conformability. ...
• Embeddability.

When was Babbitt written?

Babbitt, novel by Sinclair Lewis, published in 1922.

Who discovered Babbitt metal?

babbitt metal, also spelled Babbit Metal, any of several tin- or lead-based alloys used as bearing material for axles and crankshafts, based on the tin alloy invented in 1839 by Isaac Babbitt for use in steam engines.
