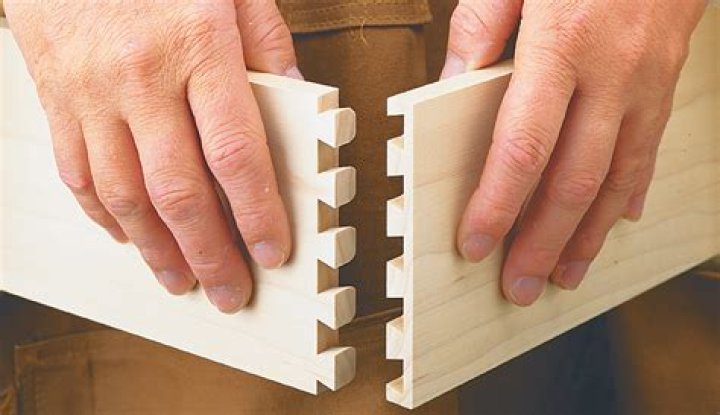

Methods. The dovetail joint is very strong because of the way the 'tails' and 'pins' are shaped. This makes it difficult to pull the joint apart and virtually impossible when glue is added. ... There are different types of dovetail joints.

Is a dovetail joint hard?

Honestly, they aren't that hard. They seem hard because people think they are hard. Or they make a few common mistakes. 1) Accurate sawing.

Is dovetail the strongest joint?

Dovetails are probably the strongest method for joining two pieces of wood, surface to surface, with the grain running in the same direction. The dovetail joint provides considerable mechanical strength because when the joint is assembled, it can't be twisted or racked.

How do I get better at dovetails?

5 things that helped me cut better dovetails

1. Tip 1: Keep your chisels sharp. ...
2. Tip 2: Use a cutting gauge to layout the baselines. ...
3. Tip 3: Use a pencil to transfer the tails to the pin board. ...
4. Tip 4: Listen to Phil Lowe. ...
5. Tip 5: Stop cutting halfblind dovetails for drawer fronts.

What are the disadvantages of a dovetail joint?

The disadvantages of dovetail joints are that they can be fairly difficult to mark out and cut, and if they are made badly these joints lose the advantages listed above. Depending on the project, function, and design, there are a number of different types of dovetail joints to choose from.

How to cut a DOVETAIL JOINT by HAND

45 related questions found

What is the weakest wood joint?

The Butt Joint is an easy woodworking joint. It joins two pieces of wood by merely butting them together. The butt joint is the simplest joint to make. It is also the weakest wood joint unless you use some form of reinforcement.

When did they stop making dovetail furniture?

Wider, uniform machine-cut dovetails were common in factory-made pieces from 1890 until the modern era. If a piece has no dovetails, it can still be a candidate for refinishing if it's sturdy and well-designed, but it's not likely to be an old piece with antique value.

How tight should dovetails be?

Lee Grindinger: The dovetails should be properly snug. ... Both pieces will move in the same manner, so the pins and tails will not be working against each other. As the tail increases in width the space between the pins does,too, so there is no conflict.

How hard are dovetails?

Dovetail joints are strong and beautiful but look intimidating to cut. With the proper jigs and practice you'll be cutting dovetails all day. ... Dovetail joints are commonly used to build boxes, drawers, and cabinets. The shape of the "tails and pins" in the joint make it nearly impossible to break.

Do you glue dovetails?

Michael Dresdner: The only areas that require glue on dovetails are the diagonal faces. All the diagonal faces are long grain, all the square faces are end grain, and all the flat faces abut end grain. Therefore, you need only apply glue to the diagonal faces on the tails or pins, or both.

Why is it called dovetail?

Dovetail joints are made up of two parts called pins and tails. When a master craftsman wants to marry two boards together, they cut a series of pins on one board and matching tails on the other. They are trapezoidal in shape, resembling the tail feathers of a dove (hence the name dovetail).

What is a through dovetail?

A through dovetail joint uses is where the end grain of both boards is visible where the joint is assembled, creating a stunning dovetail effect from all sides of the box. This very strong joint is also sometimes known as a lapped, English, or plain dovetail.

Is a dovetail a mechanically locking joint?

First, the sides of the mating pins and tails provides a large amount of good, long grain gluing surface. Second a dovetail creates a strong mechanical lock. Even without glue, the joint has a great deal of holding power. Finally, a dovetail joint is extremely rigid.

Is a dovetail jig worth it?

Dovetail jigs are useful and fun because they can create so many different types of joints. By swapping out a template, the user can change from making a standard dovetail to a box joint to a half-blind or even a full-blind mitered joint.

Are dovetail joints still used?

They are still used today by many experienced custom furniture makers. Dovetail joints are not only used to make a strong joint for drawer construction, but cabinet makers often use them to join the tops, bottoms and sides of cabinet cases, as was done on antique furniture.

When were dovetail joints first used?

Dovetail joints, named due to their resemblance to the bird's tail, were first used as far back as ancient Egyptian times where they are found on the furniture entombed with mummies. They were first used in English cabinet making in around 1650.

What is a rabbet joint?

A rabbet (American English) or rebate (British English) is a recess or groove cut into the edge of a piece of machinable material, usually wood. ... A rabbet can be used to form a joint with another piece of wood (often containing a dado). Rabbet joints are easy to construct and have good appeal to them.

What does dovetail mean in furniture?

Dovetail refers to a type of joint in which two pieces of wood interlock. Joints that have been dovetailed are extremely strong and secure. They are usually used to construct drawers. Dovetail drawers are recognized by their distinct pattern at the outside corner of a drawer.

Can you cut dovetails in plywood?

A wide variety of methods can be used to make dovetail plywood drawers. ... The dovetails can be cut by hand with dovetailing saw and chisel or you can use a dovetail jig and router.

Do you need to clamp dovetails?

When well-made, a good joint won't require clamping in most cases. (When you are learning to cut the joint, clamps are a good thing.) Years ago, I decided to make my dovetails a little on the tight side after reading a lot about early workshop practice.

Who invented dovetail joints?

The dovetail joint technique probably pre-dates written history. Some of the earliest known examples of the dovetail joint are in ancient Egyptian furniture entombed with mummies dating from First Dynasty, the tombs of Chinese emperors, and a stone pillar at the Vazhappally Maha Siva Temple in India.

How many dovetails are there?

There should be roughly one dovetail each 25mm or so across the width. There's no hard and fast rule so it's up to the woodworker to use his or her judgement to decide how many are needed.

What is a French dovetail joint?

A dovetail joint is a locking joint. The English dovetail construction tends to allow for the largest possible drawer storage capacity. French dovetail construction is used for more elaborate features such a curved, bowed design.
