A barograph is a barometer that records the barometric pressure over time in graphical form. This instrument is also used to make a continuous recording of atmospheric pressure.

What is unit of barograph?

A barometer measures atmospheric pressure in units of measurement called atmospheres or bars. An atmosphere (atm) is a unit of measurement equal to the average air pressure at sea level at a temperature of 15 degrees Celsius (59 degrees Fahrenheit).

What do you do with the recorded barogram paper?

After a barogram is complete and removed from the drum, it should be marked Lat, Long, Dates and comparison with a barometer for the benefit of the Met office. These records along with weather log books are handed over to the meteorological office of the home port.

What is the principle of barograph?

The principle of the barograph is same as that of the aneroid baromoter. A metal box partially exhausted of air (vaccum) will undergo changes of shape as the outside pressure varies.

How does an aneroid barograph work?

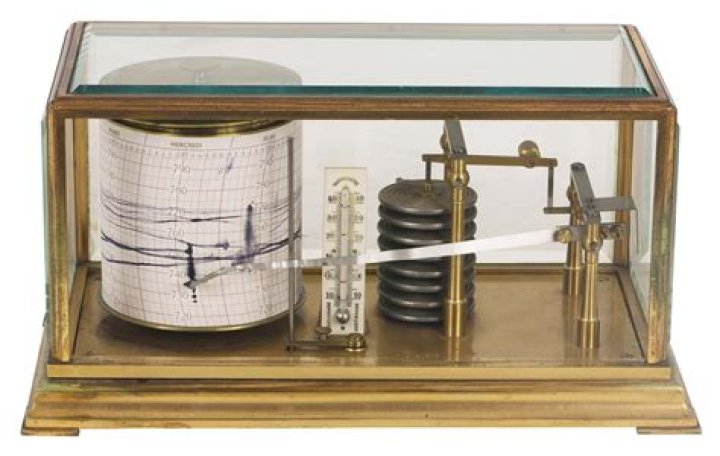

A barograph is a recording aneroid barometer where the changes in atmospheric pressure are recorded on chart paper. A barograph chart is mounted on to the drum which is normally turned by clockwork. The ink trace, or barogram, on the recording paper is a visual record of changes in pressure.

barograph

23 related questions found

Why barometer is used in mobile phones?

What does a phone barometer do? ... Whenever you (and your device) experience a change in elevation, the barometer measures the resulting pressure difference. That pressure difference augments the GPS data about your horizontal (x/y) location to produce a more accurate picture of where you are at any given time.

Who invented the mercurial barometer?

1644: Italian physicist Evangelista Torricelli demonstrates the principles of the mercury barometer, an instrument he invented the previous year.

Why mercury is used in barometer?

Mercury is employed in the barometer because its density is sufficiently high for a relative short column to be obtained. and also because it has very small vapour pressure at normal temperature. High density scales down the pressure head(h) to repesent same magnitude of pressure in a tube of smaller height.

What is meteorological instruments and their uses?

Meteorological instruments are the equipment used for the measurement of different weather parameters such as temperature, pressure, humidity, wind speed, cloud cover etc. ... Hygrometer – humidity, Anemometer – wind speed, Ceilometer – Cloud cover, Rain/Snow gauge – precipitation.

Why is mercury used as barometric liquid give three reasons?

(i) The density of mercury is greater than that of all the liquids, so only 0.76m height of mercury column is needed to balance the normal atmospheric pressure. (ii) The mercury neither wets nor sticks to the glass tube therefore it gives the correct reading.

What is the major reason for using mercury in barometers rather than h2o?

What is the major reason for using mercury (rather than water) in barometers? Mercury is much denser than water. Mercury has a higher boiling point than water.

What is mercury barometer?

A mercury barometer is a barometer with a column of mercury whose height varies according to the atmospheric (barometric) pressure. A barometer is an instrument for measuring atmospheric pressure, which is used in forecasting the weather.

Why is the barometer important?

— Barometers are very important when it comes to weather forecasting. A barometer can measure the pressure of the atmosphere and it can tell us whether or not the air pressure is rising or falling. A meteorologist can use this information to determine whether a storm is coming or leaving.

How does a mercurial barometer work?

The classic mercury barometer is designed as a glass tube about 3 feet high with one end open and the other end sealed. The tube is filled with mercury. ... The barometer works by balancing the weight of mercury in the glass tube against the atmospheric pressure, much like a set of scales.

Why did Evangelista Torricelli invent barometer?

Evangelista Torricelli became the first scientist to create a sustained vacuum and to discover the principle of a barometer. Torricelli realized that the variation of the height of the mercury from day to day was caused by changes in the atmospheric pressure. Torricelli built the first mercury barometer around 1644.

Does iPhone XR have barometer?

The magnetometer in the iPhone XR can perform "measurements of the Earth's magnetic field relative to the device," according to Apple. You can get even elevation readings and use the barometer to measure air pressure.

Does iPhone 12 have barometer?

The new iPhones have a barometric pressure sensor built in so this app works completely without internet. ... The Altimeter helps you track your altitude changes based on the change of pressure.

How does barometer phone work?

Using the simply-titled Barometer app on Android, we calibrate the needle to zero so we know how it moves over time. In addition to being able to predict the weather, you can check your current altitude. ... If your atmospheric pressure changes, so too will your altitude even if you don't move or change position.

What is a Stormograph?

Recording Barometer (Barograph)

This “Cyclo-Stormograph” gives a continuous 7-day recording of barometric pressure, commonly used to predict weather, as can be seen on the original tag for interpreting the instrument output seen here.

How do you explain air pressure to a child?

Air pressure is a measure of the weight of air above us in the atmosphere. Air pressure changes with the weather. High pressure happens when cold air pushes down, usually bringing fine weather. Low pressure happens when warm air rises up to make clouds and rain.

What does an aneroid capsule measure?

An aneroid barometer is an instrument used for measuring air pressure as a method that does not involve liquid. Invented in 1844 by French scientist Lucien Vidi, the aneroid barometer uses a small, flexible metal box called an aneroid cell (capsule), which is made from an alloy of beryllium and copper.

Why is not water used as a barometric liquid Give two reasons?

Water is not a suitable barometric liquid because: (i) The vapour pressure of water is high, so its vapours in the vacuum space will make the reading inaccurate. (ii) Water sticks with the glass tube and wets it, so the reading becomes inaccurate.
