Ferroelectric polarization can have an important role to increase output power of energy harvesters by enhancing internal potential. Strong ferroelectric polarization produces high piezoelectric potential and surface potential.

What is the use for ferroelectric materials?

The principal use of ferroelectric ceramics has been in the regions such as dielectric ceramics for capacitor applications (132) ferroelectric thin films for nonvolatile memories, piezoelectric materials for medical ultrasound imaging and actuators, and electro-optic materials for data storage and displays (68).

What is ferroelectricity in chemistry?

Ferroelectricity is a property of certain materials to have a spontaneous polarization which can be reversed by the application of an external electric field. From: Progress in Solid State Chemistry, 2015.

What are the properties of ferroelectricity?

Ferroelectricity, property of certain nonconducting crystals, or dielectrics, that exhibit spontaneous electric polarization (separation of the centre of positive and negative electric charge, making one side of the crystal positive and the opposite side negative) that can be reversed in direction by the application of ...

What causes ferroelectricity?

We now know that the origin of ferroelectric phase transitions in oxides is due to the underlying anharmonic potential surfaces which are caused by softening of the short-range repulsions by covalent hybridization so that the atoms can move off-center and towards each other.

How Ferroelectricity Could Change the Way We Store Data

23 related questions found

Who discovered ferroelectricity?

1 The discovery of ferroelectricity (a) Joseph Valasek (1897–1993) discovered ferroelectricity as a PhD student in 1920 when measuring the polarization of potassium sodium tartrate tetrahydrate as a function of the applied electric field.

What is piezoelectricity and ferroelectricity?

Piezoelectricity is electric charge that accumulates in response to applied mechanical stress in materials that have non-centrosymmetric crystal structures. ... Ferroelectric materials exhibit interesting semiconductor properties that are analogous to the properties found in stressed piezoelectric materials.

What is ferroelectricity explain the structure and properties of ferroelectric materials?

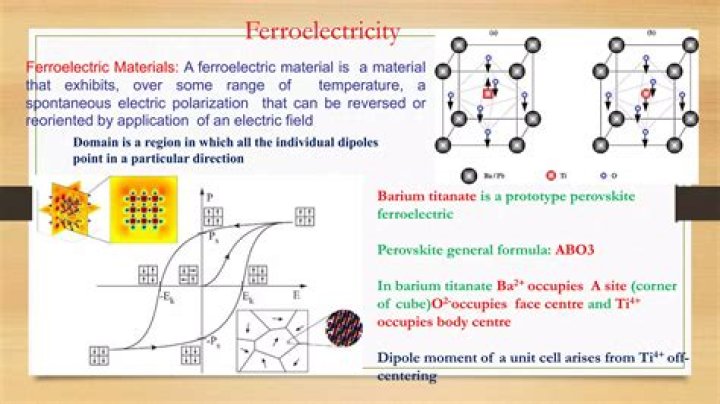

Ferroelectric crystals possess regions with uniform polarization called ferroelectric domains. Within a domain, all the electric dipoles are aligned in the same direction. There may be many domains in a crystal separated by interfaces called domain walls.

What does ferromagnetism and ferroelectricity mean?

Let us start with the basic definition; a ferroelectric is defined to be a material with a spontaneous electric polarization that is switchable by an applied electric field. Likewise, a ferromagnet has a spontaneous mag- netization that can be reoriented by an external magnetic field.

Which of the following materials show ferroelectricity?

Examples of Ferroelectric Materials

• BaTiO. ...
• PbTiO. ...
• Lead Zirconate Titanate (PZT)
• Triglycine Sulphate.
• PVDF.
• Lithium tantalite etc.

Does Rochelle salt exhibit ferroelectricity?

Rochelle salt is a potassium-sodium tartratetetrahydrate (KNaC₄H₄O₆•4H₂O) and belongs to the family of uniaxial ferroelectrics. This was the first material in which Valasek discovered the ferroelectric phenomenon in 1921, and from which he also introduced the term Curie temperature or Curie point for ferroelectrics.

What is meant by dielectric constant?

Dielectric constant (ϵr) is defined as the ratio of the electric permeability of the material to the electric permeability of free space (i.e., vacuum) and its value can derived from a simplified capacitor model.

Is AlN a ferroelectric?

Ferroelectric materials have a charge polarization that can be switched in direction by an applied electric field. ... AlN has strong spontaneous polarization and piezoelectric effects.

Why are all ferroelectric materials also piezoelectric?

All the ferroelectric materials exhibit piezoelectric effect due to lack of symmetry. Special class of piezoelectric materials exhibit certain other characteristics also. It exhibits spontaneous polarization i.e. polarization in absence of electric field.

What happens in a ferroelectric material when T TC?

What happens in Ferroelectric material when T < T_c? Explanation: When the temperature is less than the transition temperature, the material becomes spontaneously polarized i.e., an electric polarization develops in it without the help of an externally applied field.

What are polymers and ferroelectric materials?

Ferroelectric polymers are a group of crystalline polar polymers that are also ferroelectric, meaning that they maintain a permanent electric polarization that can be reversed, or switched, in an external electric field.

What is the significance of crystal structure in ferroelectric ceramics with respect to transition temperature?

As the temperature increases, thermal energy overcomes the energy needed to keep such a dipolar order and, at the same time, the crystal structure evolves so as to reduce the spontaneous polarization.

Are all ferroelectrics Piezoelectrics?

c) All ferroelectrics are therefore piezoelectric, but all piezoelectrics are not ferroelectric. For example: tourmaline is piezoelectric, but not ferroelectric. d) The piezoelectric coefficient is the ratio of the set-up charge to the stress applied along crystallographic axis.

What is hysteresis explain with diagram?

A hysteresis loop shows the relationship between the induced magnetic flux density B and the magnetizing force H. It is often referred to as the B-H loop. ... This is referred to as the point of retentivity on the graph and indicates the remanence or level of residual magnetism in the material.

What are the essential properties of ferroelectric crystals?

They are: 1) High dielectric constants making them useful for electrical capacitors, 2) high piezoelectric constants useful in making sensors, actuators, RF Filters, 3) Ferroelectric hysteresis useful to make non-volatile memories, 4) high pyroelectric properties for infra-red detectors, thermistors, 5) strong electro- ...

What is the effect of temperature on ferroelectric material?

High temperature disturbs the ferroelectric alignment and produces molecules that are free to reorient in an external field, and these contribute to the dielectric constant.

What are multiferroic materials?

Multiferroics are materials that inherently exhibit both magnetic and electric polarizations, making them highly prized for spintronic and other magnetoelectric applications. Multiferroicity typically derives from asymmetry in a material's crystal structure.

Why does the piezoelectric effect happen?

The piezoelectric effect results from the linear electromechanical interaction between the mechanical and electrical states in crystalline materials with no inversion symmetry. ... Conversely, those same crystals will change about 0.1% of their static dimension when an external electric field is applied.

What is piezoelectric technology?

Piezoelectric Effect is the ability of certain materials to generate an electric charge in response to applied mechanical stress. The word Piezoelectric is derived from the Greek piezein, which means to squeeze or press, and piezo, which is Greek for “push”.

What is the Curie temperature piezoelectric?

The Curie point is the temperature above which the material loses its ferroelectric and piezoelectric behavior.
