Star/Delta starters are probably the most common reduced voltage starters. They are used in an attempt to reduce the start current applied to the motor during start as a means of reducing the disturbances and interference on the electrical supply.

Why we use soft starter instead of star delta starter?

Compared with star/delta starters, soft starters are much more flexible and provide a smooth start with no risk of transients. Star/delta starters offer limited performance because: Start torque cannot be adjusted to accommodate motor and load characteristics.

Why is the star delta starter preferred with induction motor?

Because of the reduction in starting current, starting torque reduces. Therefore we can conclude that by using Star Delta starter, the starting current is reduced to approximately two-thirds. Since starting current is reduced, the voltage drops during the starting of motor in systems are reduced.

When would a star delta starter used on a motor?

Star delta starter is mainly used to reduce the flow of current at the starting of the three-phase induction motor to avoid sparking, overheating, coil burning, etc. Now it is most important to understand that how a star-delta starter reduces the starting current of the induction motor.

Why we use star delta starter for above 5 hp motor?

Main use of this starter is to reduce the starting current. ... Due to starting star connection reduces the voltage by 1/ root 3 times. Due to this reduced voltage starting current is limited.

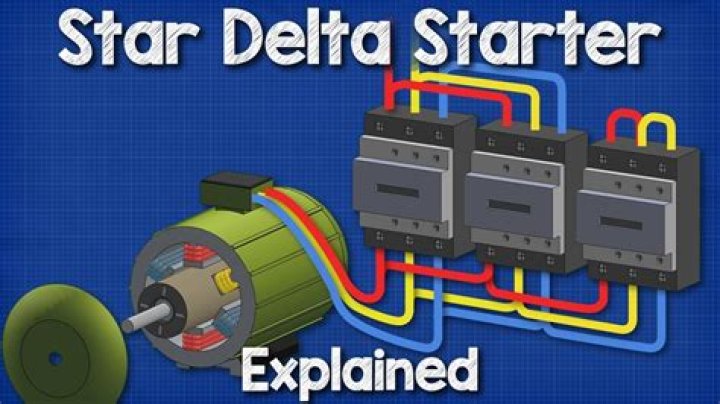

Star Delta Starter Explained - Working Principle

37 related questions found

Why we use DOL starter?

The applications of DOL starters are primarily motors where a high inrush current does not cause excessive voltage drop in the supply circuit (or where this high voltage drop is acceptable). Direct on line starters are commonly used to start small water pumps, conveyor belts, fans, and compressors.

Why small motors are star connected?

During starting the motor windings are connected in star configuration and this reduces the voltage across each winding 3. ... They are used in an attempt to reduce the start current applied to the motor during start as a means of reducing the disturbances and interference on the electrical supply.

Does a motor run faster in Star or Delta?

The speeds of Star connected motors are slow as they receive 1/√3 voltage. The speeds of Delta connected motors are high because each phase gets the total of line voltage. In Star Connection, Smooth starting and operation with nominal power, normal operation without overheating can be achieved.

What will happen if star connected motor in Delta?

If the delta connected motor is connected in star, the voltage across the stator winding get reduced to 1/√3 (58%) of the voltage when the stator is connected in the delta. The torque delivering capacity of the motor is proportional to the square of the stator voltage.

What is difference between Star and Delta Connection?

Star and Delta Connections are the two types of connections in a 3 – phase circuits. A Star Connection is a 4 – wire system and a Delta Connection is a 3 – wire system. ... Hence, most of the power generated and distributed is actually a 3 – phase power (but majority of households will receive a single phase supply).

Why do we use Star and Delta Connection?

Generally, star connection is used where you need a neutral and two separate voltages, like our distribution system. Delta connection is generally preferred where neutral conductor is not needed like for transmission of high voltage power. Also, delta connection is preferred where 3rd harmonics needs to controlled.

What is the difference between DOL starter and star delta starter?

DOL means the motor is connected Directly ON Line using one contactor with no starting circuit to lower the high starting current. Typically the Delta part of Star-Delta. Star-Delta uses two contactors, one to start at a lower voltage in Star and one to run at a higher voltage in Delta configuration.

What are the advantages of ∆ ∆ connection?

The advantage of ∆ - ∆ Transformation:

The delta-delta connection is good for balanced and unbalanced loading. If a third harmonic is present, it circulates in the closed path and therefore does not appear in the output voltage wave.

What is difference between VFD and DOL starter?

As a basic starting method, a DOL starter applies full voltage, current, and torque immediately to the motor after the start command. ... A VFD converts the AC line voltage to DC voltage, and then inverts it back to a simulated AC voltage for the motor.

What is difference between soft starter and VFD?

The main difference between the two is that a VFD can vary the speed of a motor while a soft starter only controls the starting and stopping of that motor. When faced with an application, price and size are in the favor of a soft starter. A VFD is the better choice if speed control is required.

Should I connect a motor in Star or Delta?

400v delta/690v star motors should always be connected in delta to a 400v supply as connecting in star gives 1/3 of the rated output power (as above), so if only 1/3 of the power is needed then a smaller, cheaper motor should be used.

Can we run Delta motor in Star?

The Delta connection motor will draw 1.732 times higher current when connected into a star connection mode.

Can a motor start in Delta?

A star delta starter is the most commonly used method for the starting of a 3 phase induction motor. In star delta starting an induction motor is connected in through a star connection throughout the starting period. Then once the motor reaches the required speed, the motor is connected in through a delta connection.

What pulls more current Star or Delta?

when you connect the delta connection motor into a star connection mode, the effective per phase voltage is reduced to (1/1.732) times hence to maintain the torque/speed it will draw 1.732 times higher current.

What is Y connection?

Wye (Y) connection, also known as “Y” connection, is a three-phase circuit in which all the three loads are connected at a single neutral point. Unlike delta connection, wye-connected systems carry a fourth neutral conductor, often grounded but sometimes left floating (ungrounded wye system).

Does delta connection have neutral?

But in Delta connection, there is no neutral point. The end of each coil is connected to the starting point of the other coil that means the opposite terminals of the coils are connected together.

Why do motors run Delta?

For this reason, Induction Motor is started with Star connection to reduce the starting current by reducing the voltage across windings. ... So in running condition, delta connection is used to develop high torque by providing the high voltage across windings.

What is difference between HT and LT?

LT motors called low tension motor and HT motor called high tension motor. LT Motor – Motors which work on 230 V, 415 V and 690 V. HT Motor – Motors which work on 3.3 KV, 6.6 KV and 11 KV. ... HT Motor – Motors which work on 6.6 KV & 11 KV.

Why are Delta motors connected?

Firstly, the stator winding is connected in star and then in Delta so that the starting line current of the motor is reduced to one-third as compared to the starting current with the windings connected in delta. ... Since the developed torque is proportional to the square of the voltage applied to an induction motor.
