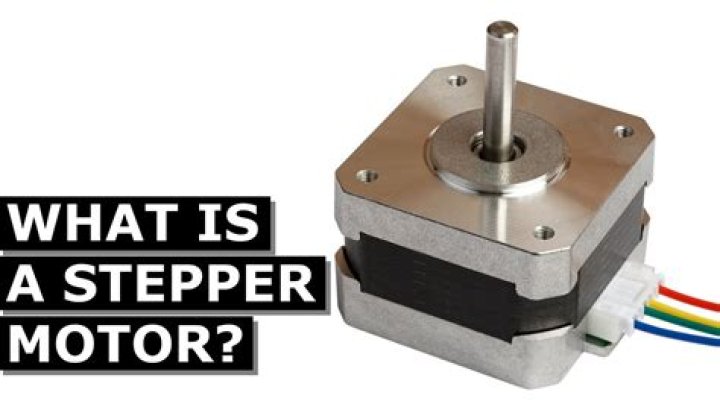

Stepper motors are used every day in both industrial and commercial applications because of their low cost, high reliability, high torque at low speeds and a simple, rugged construction that operates in almost any environment. The rotation angle of the motor is proportional to the input pulse.

Why do we need stepper motors?

By energizing each phase in sequence, the motor will rotate, one step at a time. With a computer controlled stepping you can achieve very precise positioning and/or speed control. For this reason, stepper motors are the motor of choice for many precision motion control applications.

What do I need for a stepper motor?

Position control

The stepper motors require a digital circuit to move. Usually an Arduino board, or a more advance controller. But there is no way of creating a simple circuit to control a stepper motor. That is the reason why they are very well adapted to robotics.

What is the use of steppers?

Step machines (or steppers) aim to simulate climbing stairs. Steppers enable exercisers to obtain stronger legs and increase cardiovascular endurance.

How do steppers work?

The stepper motor converts a pulsing electrical current, controlled by a stepper motor driver, into precise one-step movements of this gear-like toothed component around a central shaft. Each of these stepper motor pulses moves the rotor through one precise and fixed increment of a full turn.

Electronic Basics #24: Stepper Motors and how to use them

21 related questions found

What are the benefits of step aerobics?

Step aerobics has all the benefits of a high-intensity cardio workout without putting stress on your joints. It improves overall fitness by building strength , reducing fat, and boosting your cardiovascular health. It also burns calories, making it an ideal way to maintain your target body weight.

Where are stepper motors used?

Stepper motors are diverse in their uses, but some of the most common include:

• 3D printing equipment.
• Textile machines.
• Printing presses.
• Gaming machines.
• Medical imaging machinery.
• Small robotics.
• CNC milling machines.
• Welding equipment.

What is the working principle of stepper motor?

The basic working principle of the stepper motor is the following: By energizing one or more of the stator phases, a magnetic field is generated by the current flowing in the coil and the rotor aligns with this field.

What is stepping motor explain?

A stepper motor is an electromechanical device it converts electrical power into mechanical power. ... Stepper motors are similar to switched reluctance motors. The stepper motor uses the theory of operation for magnets to make the motor shaft turn a precise distance when a pulse of electricity is provided.

Why is it called stepper motor?

Stepper motors are so named because each pulse of electricity turns the motor one step. Stepper motors are controlled by a driver, which sends the pulses into the motor causing it to turn.

What is stepper motor torque?

If external force is applied to a stepping motor when it is stopped but energized, the attractive force generated between the rotor and stator works to maintain the stop position of the motor. This torque of withstanding the external force is called the holding torque.

What is stepper motor PPT?

1. PrinciPle of stePPer motor A stepper motor is an electromechanical device which converts electrical pulses into discrete mechanical movements. The shaft or spindle of a stepper motor rotates indiscrete step increments when electrical command pulses are applied to it in the proper sequence.

What is step angle?

The step angle is the basis of the movement of a stepping motor. The step angle depends on the total number of magnetic poles of the motor. The step angle is determined by the formula: Step angle = 360 degrees / N where N = (NPH x PH) NPH: Number of magnetic poles for each phase.

How many steps does a stepper motor have?

A stepper mottor is a brushless, synchronous electric motor that converts digital pulses into mechanical shaft rotation. Every revolution of the stepper motor is divided into a discrete number of steps, in many cases 200 steps, and the motor must be sent a separate pulse for each step.

How can we control the speed of a stepper motor?

Explanation: Speed of a stepper motor can be controlled by changing its switching speed or by changing the length of the time delay loop.

What is the step angle of stepper motor?

The step angle depends on the method of construction and is generally in the range 0.9-5°. The most popular step angle is 1.8°. The principle of operation of a stepper motor can be illustrated with reference to a variable-reluctance, four-phase machine.

Why is step aerobics no longer popular?

May said. “Aerobics are increasingly out of favor.” ... Another reason for the decline of aerobics is that fitness has become more sophisticated, so some classes are hybrids that work the body and the mind; others offer calorie burn while minimizing wear and tear; still others alternate hard bursts with easy intervals.

Can you do body step without a step?

You can do the dance programs, BARRE, BODYSTEP with no step (you don't want to risk falling), BODYATTACK without the jumping, BODYPUMP, RPM and BODYFLOW without the twisting or prone positions.

What is step torque?

A stepper motor's holding torque is the amount of torque needed in order to move the motor one full step when the windings are energized but the rotor is stationary. ... Stepper motors can hold a load against an external force when the motor is stationary.

How many coils are there in stepper motor?

Bipolar stepper motor driving sequence. The bipolar consists of two coils, but there is no centre tap. As a result of this, the bipolar motor requires a controller where the current flow through the coils can be reversed.

What is resolution in stepper motor?

Resolution is defined as the smallest positional increment which can be commanded of a motion control system. Aspects that play a role in determining the overall system resolution include: Mechanical positioning components. Motor.

What is stepper motor Slideshare?

Introduction  A stepper motor, also known as step motor or stepping motor, is a brushless DC electric motor that divides a full rotation into a number of equal steps.  A standard motor will have a step angle of 1.8 degrees with 200 steps per revolution.

What is permanent magnet stepper motor?

The Permanent Magnet Stepper Motor has a stator construction similar to that of the single stack variable reluctance motor. The rotor consists of permanent magnet poles of high retentivity steel and is cylindrical in shape. ... The rotor poles align with the stator teeth depending on the excitation of the winding.

What is hybrid stepper motor?

A "hybrid" type stepper motor combines the design and advantages from both permanent magnet type and variable reluctance type stepper motors. Therefore, a hybrid type stepper motor uses both the permanent magnet rotor as well as a toothed rotor and stator in their design.
