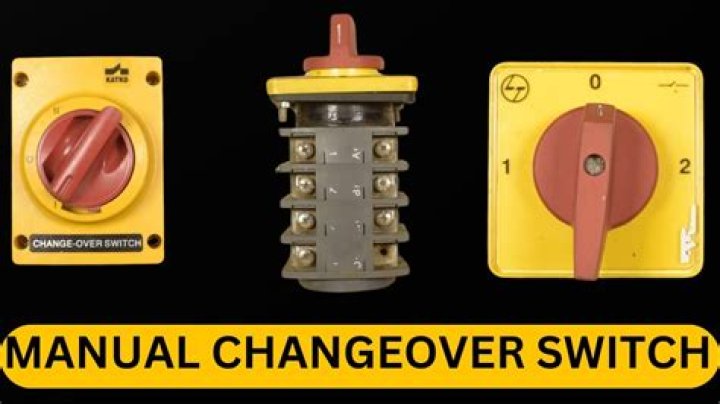

A changeover switch is designed to transfer a house (or business) electricity from the commercial power grid to a local generator when n outage occurs. Also known as “transfer switches,” they connect directly to the generator, commercial power supply or line, and the house.

What is the function of changeover switch?

A changeover switch moves a circuit from a particular set of connections to the other where the switch has both the sets of connections.

What is changeover MCB?

What is MCB Changeover Switch? ... MCB Changeover switch is a device used for switching purpose, it is a three position switch where middle is the OFF position and on top position it connects to supply 1 and in bottom position it is connected to the supply-2. It is used as changeover switch between two supplies.

What is an automatic change over?

Automatic Changeover switches as suggested by the name are the switches which automatically changes between the supply sources without the manual intervention. they perform automatic changeover process with the help of motors, which changes the state of switches from On to OFF and visa-versa.

How does an automatic changeover switch work?

When power fails, the automatic transfer switch commands the generator to start. When the generator is ready to supply power, the ATS switches emergency power to the load. Once utility power is restored ATS switches to utility power and commands generator shutdown.

How does a generator change over switch work? - Principal of operation

45 related questions found

Which is better transfer switch or interlock?

Compared to a transfer switch, which is limited to a particular number of circuits, an interlock kit allows you to run power from a generator to any circuit within the electrical panel. While this is good in theory, there's a risk of overloading the generator if it's not sized according to the load.

Can I use a 100 amp transfer switch with 200 amp service?

If you have a generator that is rated for 100A, you should be fine. If the ATS is rated higher, that doesn't matter. Is that correct? It's just a switch if you need a 100 Amp before you connect the 200 Amp transfer switch.

What type of transfer switch do I need?

The best way to determine the ideal size of your transfer switch is to match it to your generator's load. To do this, you should match the largest outlet on your generator. For instance, if your generator's largest outlet is 30 amps, you should buy a 30-amp transfer switch to get the full power load.

What is changeover?

noun. a conversion or complete change from one thing, condition, or system to another, as in equipment, personnel, methods of production, etc.: a changeover to automated equipment.

How many types of changeover are there?

System changeover is concerned with the smooth shift from one way of doing things to another and the mitigation of disruption to business activities during the changeover. There are three main methods used: phased implementation, direct changeover and parallel running.

What is 2 way switch?

What is a Two-way Switch? The two way (double-pole) switch is used to ON and OFF the light from two different locations and the switch is mostly used in the case of stairs, in rooms that have two entries. This type of switch is generally used in some home wiring systems and industrial applications.

What are the 4 types of switches?

The types of switches are classified into four types namely:

• SPST (Single Pole Single throw)
• SPDT (single pole double throw)
• DPST (double pole, single throw)
• DPDT (double pole double throw)

What is a changeover contact?

A changeover contact is part of a relay on which the normally open contact can break or make contact. A relay can contain several changeover contacts.

What is motorized changeover switch?

Motorised changeover switches are aimed to perform remote or local on load changeover operations. They also offer disconnection position guaranteeing circuit safety isolation. Actuator can be locked at position 0 during maintenance operations.

Does generac make a 150 amp transfer switch?

Generac's 150 amp single-phase service NEMA 3R-rated automatic transfer switch is used for transferring electrical load from a utility (normal) power source to a generator (standby) power source. ... Single-phase, 120/240-volt; UL-listed transfer switch.

What size generator do I need for 200 amp service?

If you have a 200 Amp service panel, use a 15-20 kW GenSet (again use the larger size if you have air conditioning or large well pump). If you have a 400 amp service panel, use a 30-50 kW GenSet (if you have lots of air conditioning or other larger loads use the large size in the range).

What will a 10000 watt generator run?

You can operate lights, refrigerator, freezer, most small appliances, a water or sump pump, a window air-conditioner, and/or furnace conservatively with a 10,000-watt generator. These items will mostly be run through your 110-volt circuits.

Are interlocks legal?

Although generator interlock kits are cheap, there are often regulations involved with them. Despite this, they are legal in the United States as long as they are installed up to code. Some jurisdictions require you to have a professional do the work, o make sure you're able to do it on your own before you begin.

Is a transfer switch worth it?

The biggest benefit of having a transfer switch in a residential setting is that you gain the ability to power things up via your circuit breaker panel instead of having to use extension cords. This includes hardwired devices, such as your dishwasher, hot water heater, air conditioning, and ceiling fans.

Can you run a generator without a transfer switch?

“It's not only less safe to run a generator without a transfer switch, but you'll limit the devices that your generator can power,” says Dave Trezza, who oversees generator testing for Consumer Reports.

What is phase changeover switch?

This is an Automatic Phase Changer where mains input is 3 phases and Generator input is 1 phase and the load is divided on all three phases. When even one phase fails or two phases fails the Changeover will give the supply on all three output Terminals automatically.

Can single-phase convert to three-phase?

Although single-phase power can be derived from a three-phase power source, a transformer cannot convert single-phase power to three-phase power. Converting single-phase power to three-phase power requires either a phase converter or a variable frequency drive.

What is electrical phase change?

A phase change is when matter changes to from one state (solid, liquid, gas, plasma) to another. (see figure 1). These changes occur when sufficient energy is supplied to the system (or a sufficient amount is lost), and also occur when the pressure on the system is changed.
