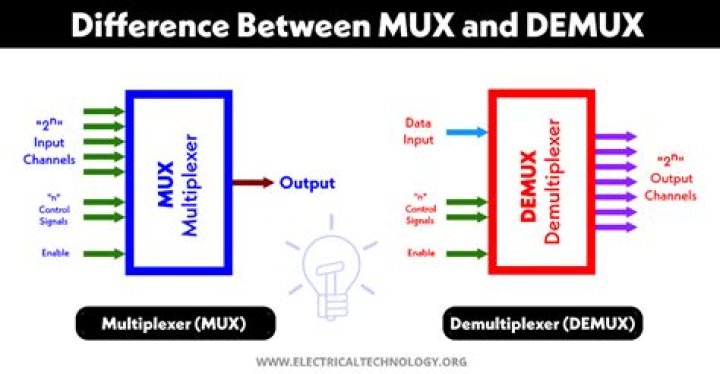

A multiplexer is used to convert several analog or digital signals into a single o/p signal through different control lines. ... Both the Mux and Demux are used to transmit the data over a network in less bandwidth. But multiplexer is used at the transmitter end whereas the Demux is used at the receiver end.

Why do we use multiplexer?

A multiplexer makes it possible for several input signals to share one device or resource, for example, one analog-to-digital converter or one communications transmission medium, instead of having one device per input signal. Multiplexers can also be used to implement Boolean functions of multiple variables.

What are the purposes of using decoder and multiplexer?

A multiplexer and a decoder can be used together to allow sharing of a data transmission line by a number of signals. In the following diagram, the Control input consists of n wires, and there are 2ⁿ data inputs and outputs. The Control input determines which of the data inputs is connected to the transmission line.

What is MUX and explain how MUX works?

A multiplexer is a system of multiple inputs and just one output to receive signals coming from multiple acquisition networks. The device transfers all input signals to a microprocessor, which receives and processes the data, transmits it to the output devices, and controls the system as a whole.

Why MUX is called universal logic circuit?

Why MUX is called universal logic circuit? NAND and NOR gates are basically known as universal gates, since you can implement any logic function with these. A multiplexer, in a sense, can also be termed as a universal gate, since, you can realize any function by using a mux as a look-up-table structure.

Introduction to Multiplexers | MUX Basic

16 related questions found

Can demux be used as decoder?

A decoder with an enable input can function as a Demultiplexer. A demultiplexer is a circuit that receives information on a single line and transmits this information on one of 2n possible output lines.

What is mux demux and decoder?

Difference between of Multiplexer and Decoder :

MUX accepts several inputs and allow only one data output. It takes n input binary code and convert it into a corresponding outputs. 2. Select line are used to select data inputs and allow only one of them. ... Application of decoder is in Decimal to BCD encoder.

Why do we use decoder?

The decoder is an electronic device that is used to convert a digital signal to an analog signal. It allows a single input line and produces multiple output lines. The decoders are used in many communication projects that are used to communicate between two devices.

Why Guard bands are used in FDM?

Why guard bands are used in FDM? Ans: In FDM, a number of signals are sent simultaneously on the same me allocating separate frequency band or channel to each signal. Guard bands are used to avoid interference between two successive channels.

Is multiplexer a decoder or encoder?

The digital circuits that perform encoding of digital information are called encoders while digital circuits that decode the coded digital information are called decoders. An encoder with enable pins is called multiplexer while a decoder with enable pins is called demultiplexer.

Why decoder is used in microprocessors?

The primary purpose of this decoder is to allow a 'cleaner' instruction set representation. As with the direct variant, each instruction still represents a single machine function but the use of a decoder will often significantly reduce the number of bits needed in the machine code word.

What is decoder explain?

A decoder is a circuit that changes a code into a set of signals. It is called a decoder because it does the reverse of encoding, but we will begin our study of encoders and decoders with decoders because they are simpler to design.

What is difference between decoder and encoder?

Encoder circuit basically converts the applied information signal into a coded digital bit stream. Decoder performs reverse operation and recovers the original information signal from the coded bits. In case of encoder, the applied signal is the active signal input. Decoder accepts coded binary data as its input.

What is decoder and its types?

A decoder is a combinational circuit which has many inputs and many outputs. It is used to convert binary data to other codes. Examples: binary to octal conversion using 3 to 8 decoder, BCD to decimal conversion using 4 to 10 decoder, binary to hexadecimal conversion using 4 to 16 decoder, etc.

Why decoder is combinational circuit?

Decoder is a combinational circuit that has 'n' input lines and maximum of 2ⁿ output lines. One of these outputs will be active High based on the combination of inputs present, when the decoder is enabled. That means decoder detects a particular code.

How does a decoder work?

A decoder is a combinational logic circuit that is used to change the code into a set of signals. ... A decoder circuit takes multiple inputs and gives multiple outputs. A decoder circuit takes binary data of 'n' inputs into '2^n' unique output. In addition to input pins, the decoder has a enable pin.

Is decoder and demux same?

No. A Decoder decodes an encrypted input signal to multiple output signals from one format to another format. A De-Multiplexer routes an input signal to multiple output signals. A Decoder has 'n' input lines and maximum of 2ⁿ output lines.

What is a 4 to 16 decoder?

General description. The 74HC154; 74HCT154 is a 4-to-16 line decoder/demultiplexer. It decodes four binary weighted address inputs (A0 to A3) to sixteen mutually exclusive outputs (Y0 to Y15). The device features two input enable (E0 and E1) inputs. A HIGH on either of the input enables forces the outputs HIGH.

What's the difference between MUX and encoder?

The encoder is a combinational circuit element that encodes a set of binary codes into another set of binary codes containing a smaller number of bits. The multiplexer is a combinational circuit element that channels one of its many inputs to its only output depending on the selection inputs.

Can MUX work as universal gate?

Multiplexer can act as universal combinational circuit. All the standard logic gates can be implemented with multiplexers. It is NOT Gate using 2:1 MUX. ... Only NOT gate cannot be implemented using “n-1” selection lines.

Which logic gates are universal?

The NAND and NOR gates are universal gates. In practice, this is advantageous since NAND and NOR gates are economical and easier to fabricate and are the basic gates used in all IC digital logic families.

Why NAND and NOR gate are called universal?

Answer: The NAND & NOR gates are called universal gates because they perform all the logical operations of basis gates like AND, OR, NOT. Answer: ... NOR AS AND An AND gate gives a 1 output when both inputs are 1; a NOR gate gives a 1 output only when both inputs are 0.

What is decoder and its application?

Basically, Decoder is a combinational logic circuit that converts coded input to coded outputs provided both of these are different from one another. ... A digital decoder converts a set of digital signals into corresponding decimal code. A decoder is also a most commonly used circuit in prior to the use of encoder.

Why is decoder used in digital electronics?

In Digital Electronics, discrete quantities of information are represented by binary codes. ... The name “Decoder” means to translate or decode coded information from one format into another, so a digital decoder transforms a set of digital input signals into an equivalent decimal code at its output.
