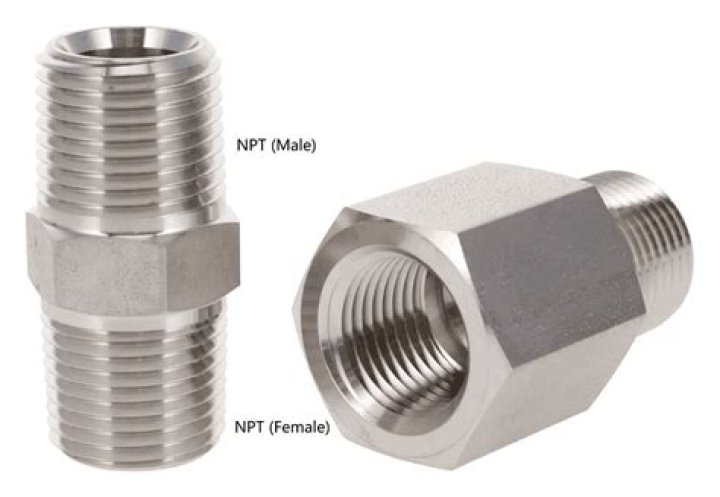

Yes, NPT (national pipe thread) has the same thread dimensions as an MIP (male iron pipe) and FIP (female iron pipe).

What is the difference between MIP and NPT threads?

Other Notes About Thread Sizing

As previously mentioned, NPT indicates the defined standard from ANSI - but many people use MPT/MIP and FPT/FIP interchangeably. MPT stands for Male Pipe Thread and MIP stands for Male Iron Pipe which both indicate a male fitting with NPT threads.

Are MPT and NPT threads compatible?

MPT Male Pipe Thread (interchangeable with NPT) National pipe thread connection to an FPT (Female Pipe Thread) or equivalently an FIP (Female Iron Pipe). MPT the threads are located on the outside of the pipe or fitting.

Can you thread BSP into NPT?

NPT and BSP threads are generally not compatible due to the differences in their thread forms. ... NPT and BSP thread pitches (threads per inch, TPI) are listed below. You can use 1/2" and 3/4" NPT and BSP fittings together, but all others will be incompatible and will therefore leak.

Will 1 BSP fit 1 NPT?

NPT/NPS and BSP threads are not compatible due to the differences in their thread forms, and not just the fact that most sizes have a different pitch.

PLUMBING THREADS 101 (EVERYTHING YOU NEED TO KNOW) | GOT2LEARN

38 related questions found

Do BSP threads need Teflon tape?

Most plumbing connections in the USA have NPT threads. ... Although it's possible to screw a male NPT into a female BSPT fitting, you'll note the threads don't match, and the joint will leak - with or without Teflon tape. Use thread sealing tape when joining BSPT fittings.

Is MIP pipe threaded?

MIP is Male Iron Pipe. As the Pure Water Gazette points out, sometimes FIP is called FPT or Female Pipe Thread. And MIP is called MPT or Male Pipe Thread. To make matters worse, sometimes they are referred to as NPT or National Pipe Thread.

What is a MIP fitting?

MIP typically stands for Male Iron Pipe (it might also refer to other building materials such as copper or steel). ... The female fitting is threaded on the inside to accept a threaded male pipe fitting of equal diameter, whose threads taper down to create a tight seal.

Does FIP mate with NPT?

Most pipe thread types are not interchangeable. NPT, MIP, and FIP work together but do not mate with any other types. ... Many times, the fitting itself will tell you what thread type you need.

Is MIP tapered?

MIP stands for Male Iron Pipe, or some would say Male International Pipe. ... An equivalent designation is MIP (Male iron pipe) and FIP (Female iron pipe). Also the terms NPS and NPSM are sometimes used to designate a straight, not tapered, thread.

What does MIP stand for in plumbing fittings?

M.I.P.: Male Iron Pipe. Describes an external pipe thread end connection, typically threaded into a F.I.P. end connection.

What is MHT connection?

Common acronym designations have been adopted to easily describe the different types of fittings: MHT = Male Hose Thread. FHT = Female Hose Thread. MPT= Male Pipe Thread. FPT = Female Pipe Thread.

Are compression fittings NPT?

The fittings we sell may have compression or National Pipe Thread tapered ends (NPT). Compression ends are made for a tube which has a specific outside diameter (OD). ... NPT (ends) look very different than compression (ends). NPT has no nuts or ferrules, but instead relies entirely on a thread connection.

Is PVC an NPT?

Furniture Grade PVC – a type of pipe and fitting made especially for use in non-liquid handling applications. Furniture grade PVC is not rated for pressure and should only be used for structural/recreational applications. ... NPT – National Pipe Thread – the US standard for tapered threads.

When should you not use Teflon tape?

An important thing to remember is that PTFE tape should not be used when connecting PVC fittings or valves with a female (FPT) thread. If the tape is used on female connections, a wedging action can occur which will cause major stress on the joint during assembly. PTFE tape does not guarantee a leak free connection.

Does PTFE tape stop leaks?

PTFE tape creates a tight-fitting skin or seal around the threads of various joint types in ductwork and piping. In addition to working as a deformable filler and helping to prevent leaks - where the tape is dense and thick enough - it also lubricates the joint threads.

Should you use Teflon tape on compression fittings?

The bolts need to be tightened. Joint compound and thread seal tape are not necessary on compression fitting threads as they are not the thread that seals the joint but rather the compression of the ferrule between the nut and pipe.

Is black iron pipe NPT threads?

These welded steel, schedule 40 pipes feature NPT threads at both ends. Black steel pipe is interchangeable with black cast-iron or black malleable iron pipe. Galvanized pipe is zinc-coated to resist rust and corrosion. Use in low-pressure plumbing applications including air, water, oil, natural gas, and steam.

Are copper fittings NPT?

Brass, galvanized, stainless steel and other non-copper fittings are often threaded, and the standard used is often the National Pipe Thread (NPT) standard. ... However, you'll need to take care not to unscrew the other end of the pipe as you're tightening the fitting on this end.

Is MHT a NPT?

The term for male hose thread is MHT and the term for female hose thread is FHT. The NPT is an American standard set in ANSI-ASME B1.

Does IPS fit NPT?

IPS (also known as NPSH) is the left circled column, NPT is the right. You can see that the actual outside diameters are very close, and threads-per-inch (TPI) are the same. Does this similarity mean you can get a liquid-tight seal screwing IPS and NPT fittings together? No, absolutely not.
